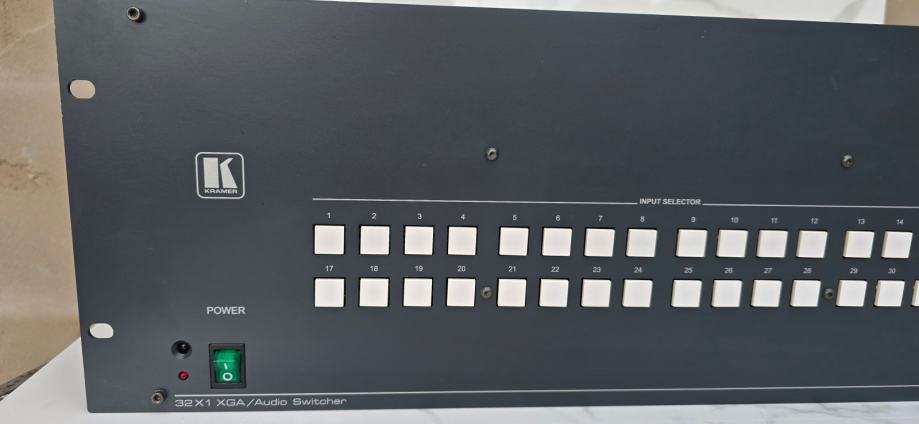

Kramer VP-321XL switcher
- Cijena
- 150 €
+ zaštita kupca 6,00 €
+ dostava 4,90 €
Sigurna kupovina uz PayProtect
Dostava diljem Hrvatske
Kupuj uz PayProtect od provjerenih prodavača uz garanciju povrata novca i sigurnu dostavu. Saznaj više
Šifra oglasa: 48797435
Osnovne informacije
- Lokacija
- Sisačko-moslavačka, Petrinja, Petrinja
- Stanje
- rabljeno
Opis oglasa
VP−321xl je visokoučinkoviti preklopnik za video signale računalne grafike, s rezolucijama od VGA do UXGA i višima, te za uravnotežene stereo audio signale.
Može prebaciti bilo koji od 32 ulaza na jedan izlaz.
Jako malo korišten.
Audio Breakaway Switching.
Standard 19” Rack Mount Size - 4U.
High Bandwidth - 500MHz (−3dB).
HDTV Compatible.
Flexible Control Options - Front Panel, RS−232 (K−Router™ Windows®−based Kramer software is included),
RS−485, contact closure, & IR remote (included).
Expandable - Cascades multiple units.
ID Bit Control - each input
INPUT: 32 analog red, green, blue signals −0.7Vpp/75Ω, H & V syncs, TTL level on
15−pin HD (F) connectors; 32 balanced audio stereo signals, +4dBu typ. on
detachable terminal blocks.
OUTPUTS: 1 analog red, green, blue signals: 0.7Vpp/75Ω, H & V syncs, TTL level on a
15−pin HD (F) connector; 1 balanced audio stereo signal, +4dBu typ. on
detachable terminal blocks.
BANDWIDTH (-3DB): Video: >500MHz; Audio: 100kHz.
MAX. INPUT/OUTPUT: Video: 2Vpp; Audio: 26dBu.
S/N RATIO: Video: 73dB; Audio: >83dB.
CROSSTALK (ALL HOSTILE): Video: −47dB @5MHz; Audio: −65dB @1kHz.
COUPLING: Video: DC; Audio: DC.
AUDIO THD + NOISE:
