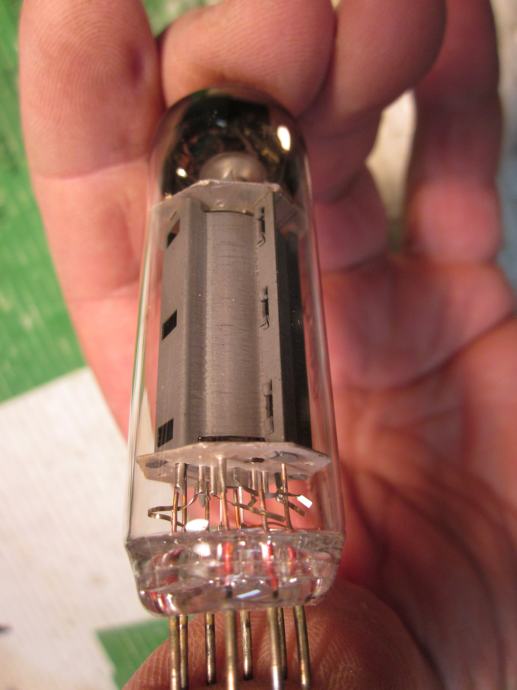

ELEKTRONSKE CIJEVI (EL84) 6P14P-K (OSIJEK)

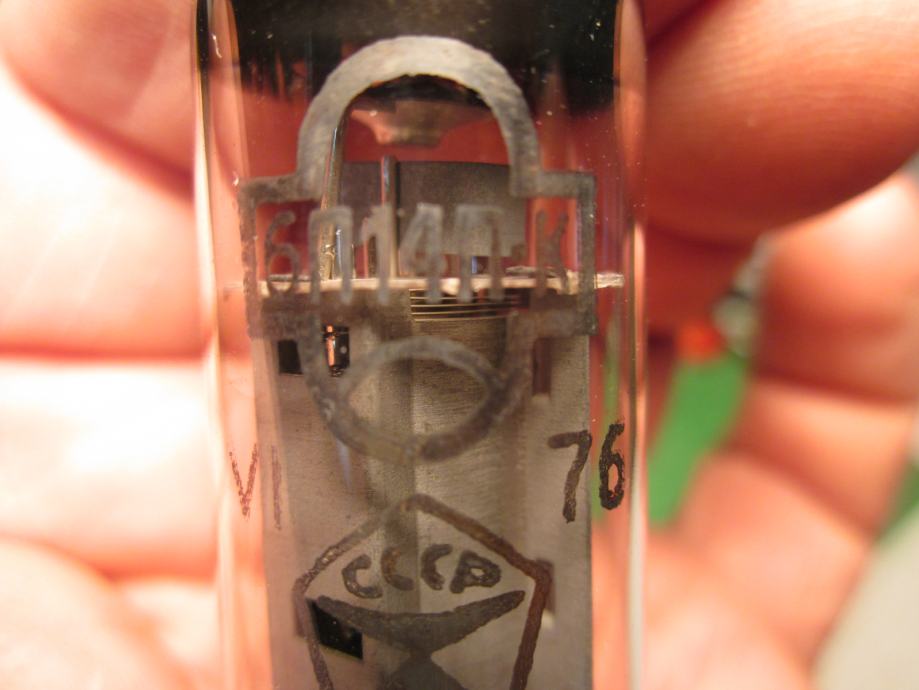

PROIZVEDENE U SSSR-u U ISTOM MJESECU 1976 GODINE. U TVORNICI REFLEKTOR. SARATOV EKSTREMNA RIJETKA VOJNA VERZIJA. ONE NUDE NISKU RAZINU ŠUMA , TRAJNOST(cca 3000 sati) TE VRLO GLADAK ZVUK.
POTPUNI JE EKVIVALENT EL84, 6BQ5 i 7189.
SLOVO K OZNAČAVA CIJEV S POVEĆANOM OTPORNOŠĆU NA VIBRACIJE.
TO JE POSEBNO VAŽNO ZA BOLJI ZVUK VAŠEG GITARSKA POJAČALA.
U PRODAJI TRENUTNO14 KOMADA.
KUPLJENE SU U BULK PAKIRANJU (NEMA SVAKA LAMPA SVOJU KUTJICU).
CIJENA PO KOMADU.
6P14P-K (6П14П-K) REFLECTOR
RUSSIAN EXTRA HIGH QUALITY TUBE ,NEW! NOS.
MILITARY acceptance! RARE!
~ EL84 ~ N709 ~ 6BQ5 NEW
Index "K"- high mechanical strength and reliability with enhanced vibration resistance,
and are equivalent to EL84, 6BQ5, 7189 Originally made for the the Russian Military at the Reflector Plant in Saratov.
These tubes are the perfect substitute for the output tubes for most guitar amplifiers as VOX, Marshall, Mesa Boogie and HIWATT.
Karakteristike:
6P14P-EP
Miniature output pentode of increased durability, radiation resistant.
Designed to amplify low frequency power.
Durability of at least 5,000 hours.
Weight is not more than 20 g.
Technical characteristics and electrical parameters of the lamp 6P14P-EP:
Filament voltage 6.3 ± 0.6 V
Filament current 760 ± 60 mA
Anode voltage rated (constant) 250 V
Anode voltage limit 300 V
Anode current 48 ± 8 mA
Cathode current limit 65 mA
The grid voltage is the second rated (constant) 250 V
Second voltage limit (constant) 300 V
Second grid current no more than 7 mA
Power dissipated by the anode, maximum 14 W
Power dissipated by the second grid, maximum 2 W
Voltage between cathode and heater limit (constant) 100 V
Slope 11.3 mA / V
The gain in triode inclusion is about 20
Internal resistance 30 kOhm
Resistance in the cathode circuit for automatic bias 120 Ohm
Input capacitance is about 11 pF
Output capacitance is about 7 pF
Capacitance throughput about 0.2 pF
Miniature glass decoration.
