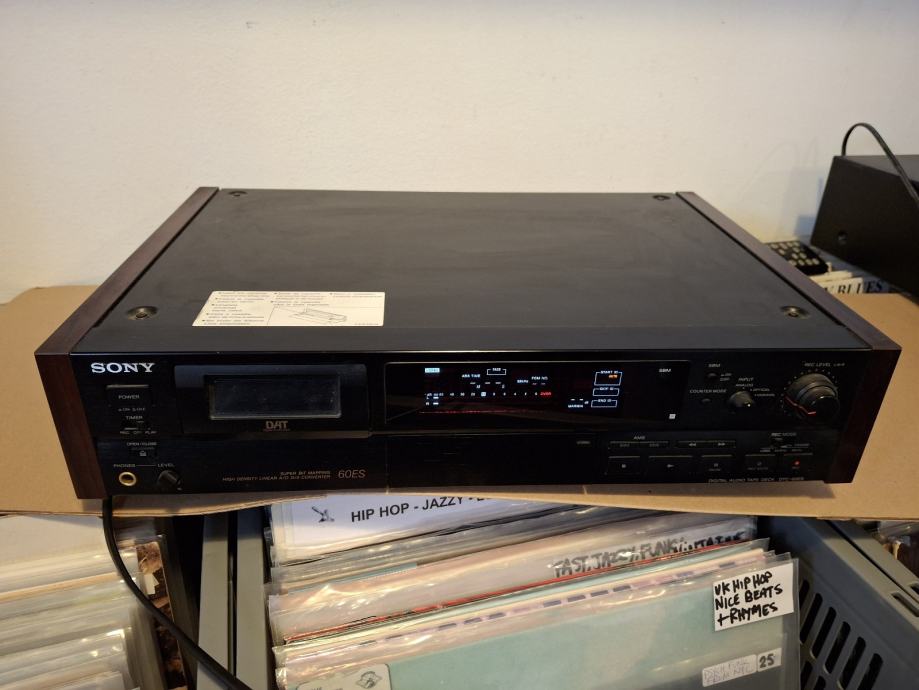

Sony DAT DTC ES 60 Esprit serija

Sony,Esprit serija vrhunski DAT ispravan, savršen uređaj za studijske snimke. Zamjene ne.
Manufacturer: Sony

Model: DTC-60 ES

Type: DAT recorder

Years of manufacture: 1994 - 1998

Made in: Japan

Color: Champagne, Black

Remote control: yes

Power consumption: 33 W

Dimensions: 470 x 110 x 350 mm (WxHxD)

Weight: 6.6 kg

Original price approx.: 1'800 DM


Connections

Number of inputs: 3

Line In Cinch: 47 kOhm

Digital In Cinch: 75 Ohm

Digital In Opto

Number of outputs: 3

Line Out Cinch: 470 Ohm Digital Out Cinch: 75 Ohm

Digital Opto Out

Headphones: 220 Ohm


Technical Data

Sampling frequency:

48 kHz

44.1 kHz

32 kHz

Tape speed:

Standard: 8.15 mm/s

Longplay: 4.075 mm/s

D/A converter: 1-bit D/A converter

Frequency response:

Standard: 2 - 22000 Hz

Longplay: 2 - 14500 Hz

Dynamic range: over 92 dB

Signal-to-noise ratio: over 92 dB

Distortion factor:

Standard: Less than 0.0045%.

Longplay: Below 0,08%


Special Features

SBM - Super Bit Mapping

Digital-to-digital dubbing capability over one generation

Automatic recording of recording date and time

Three sampling frequencies selectable:

48 kHz: For standard analog and digital input signals.

44.1 kHz: For CDs and recorded DAT tapes

32 kHz: For analog longplay input signals

Longplay operation: Four hours recording time

Visible tape run

Various subcodes recordable:

Start codes

Program number codes Jump codes Absolute time codes

Digital fade in/out

Subsequent change of sub-codes

High sound quality

1-bit A/D converter: For converting analog input signals

D/A pulse converter: For excellent playback quality


Remarks

The unit is largely the same as its predecessor, the DTC-59 ES, but with the addition of the Super Bit Mapping (SBM) function during recording.
