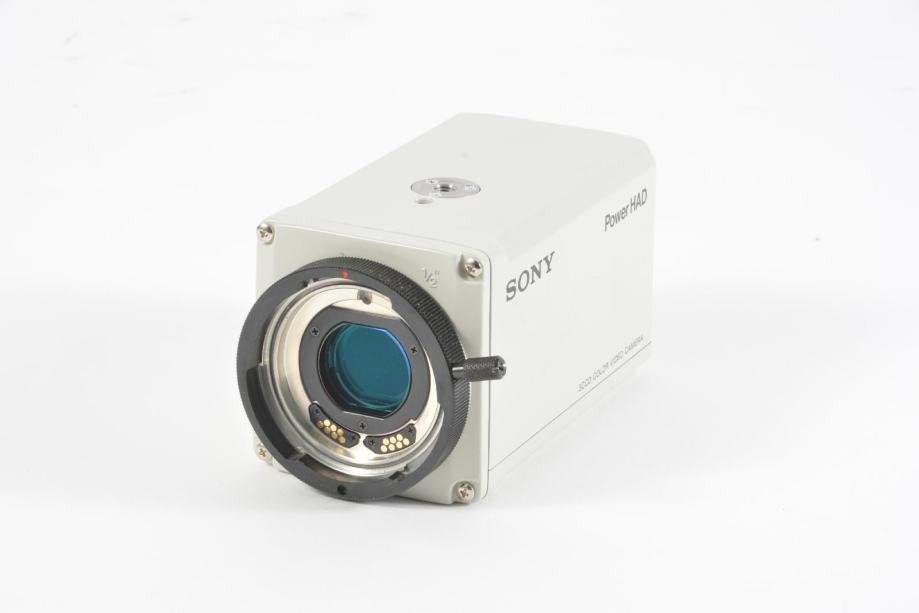

Sony DXC-950 3 CCD video kamera

Image device: 1/2-inch Interline Transfer Power HAD CCD (x3)
Picture elements: 768 (H) x 494 (V)
Sensing area: 6.4 x 4.8 mm
Signal system: NTSC standard
Scanning system: 2 : 1 interlaced, 525 lines
Horizontal frequency: 15.734 kHz
Vertical frequency: 59.94 Hz
Sync system: Internal or External with VBS or BS
Horizontal resolution: 750TV lines
Lens mount: 1/2-inch Bayonet
Sensitivity: F9.5 at 2,000 lx
Minimum illumination: 5 lx (F1.4)
Signal-to-noise ratio: 60 dB
CCD Integration mode : Field/Frame
Gain control: AGC/0~18 dB (1 dB step)/ISO (400, 800, 1600) switchable
Electronic shutter: OFF (1/60s)/STEP/Long Exp./C. Scan selectable
STEP: 1⁄100 (Flickerless mode), 1⁄125, 1⁄250, 1⁄500, 1⁄1000, 1⁄2000, 1⁄4000,
1⁄10000 (seconds)
Long Exp.: 255 to 1 frames (for field mode),
256 to 2 frames (for frame mode), OFF
C. Scan: 260/525 to 1/525H, OFF
Phase control: H/SC phase control
CCD IRIS control: ON/OFF switchable
AE Window : Large/Medium/Spot
Color temperature: 3200 K/5600 K
White balance: ATW, AWB (R/B Paint : -7 to 0 to +7)
MANU (R/B Gain : -99 to 0 to +99)
Linear matrix: ON/OFF switchable
Shading compensation: OFF/1 to 9
Master pedestal: -99 to 0 to +99
Detail: -99 to 0 to +99
H. phase: -99 to 0 to +99
SC phase: 0/180
Fine: -99 to 0 to +99
Gamma: ON/OFF switchable
Knee: 1/2 switchable
Green-on-sync: ON/OFF switchable
Memory bank: A/B switchable
Memory protect: ON/OFF switchable
Data send: A>B/B>A switchable
Baud rate: 9600, 4800, 2400, 1200
Flash mode: OFF/master/slave
Printer trigger: ON/OFF switchable
Video out: VBS: 1.0 Vp-p, 75 ½, sync negative
RGB: 0.7 Vp-p, 75 ½
Y/C: Y: 1.0 Vp-p, 75 ½, sync negative
C: 0.286 Vp-p, 75 ½, without sync
Y/R-Y/B-Y: Y: 1.0 Vp-p, 75 ½
R-Y: 0.7 Vp-p, 75 ½
B-Y: 0.7 Vp-p, 75 ½
Operating temperature: -5°C to 45°C (23°F to 113°F)
Storage temperature: -20°C to 60°C (-4°F to 140°F)
Power requirements: DC 12 V (Supplied from CMA-D2 or CCU-M5)
Power consumption: Approx. 7.8 W
Mass: Approx. 670 g (1 lb 8 oz)
Connectors: Lens (6-pin), RGB/SYNC (D-sub 9-pin), GENLOCK IN (BNC),
DC IN/REMOTE (12-pin), VIDEO OUT (BNC), CCU (20-pin),
FLASH (Synchronous socket), REMOTE (8-pin)
