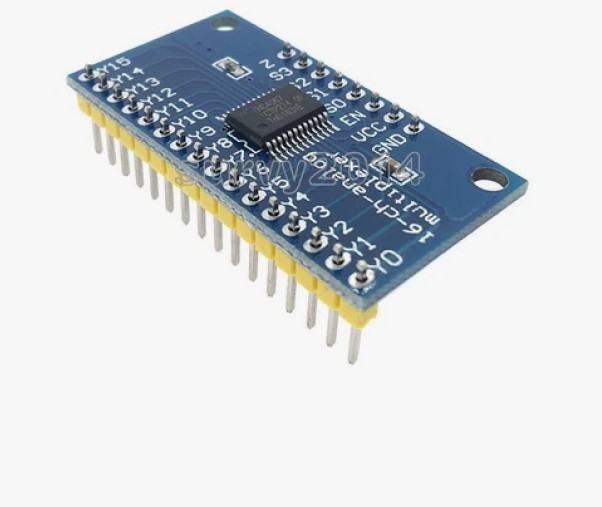

16 Channel Analog Multiplexer breakout board module CD74HC4067 (5kom)

16 kanalni Multiplexer breakout board module CD74HC4067 za Arduino projekte.


The CD74HC4067 is a 16-channel analog multiplexer/demultiplexer that uses CMOS technology. It's a bidirectional switch, allowing it to route analog signals in either direction. This makes it useful for selecting one of multiple analog inputs or outputs.
Key Features:
16 Channels: It can switch between 16 different analog inputs or outputs.
Bidirectional: Signals can pass through the switch in either direction.
Digital Control: It's controlled by digital signals (S0-S3) to select the desired channel.
Enable Pin: An enable pin (EN) allows you to turn all switches off.
Low On-Resistance: Minimizes signal attenuation when a channel is selected.
Low Off-Leakage: Prevents unwanted signals from leaking through when a channel is not selected.
Applications:
Sensor Multiplexing: Connecting multiple sensors to a single ADC input.
Signal Routing: Selecting between different analog signal sources.
Analog Switching: Controlling analog circuits and devices.
How it works:
The CD74HC4067 acts like a rotary switch with 16 positions. By applying the correct combination of digital signals to the select pins (S0-S3), you can choose which of the 16 channels is connected to the common pin (SIG or COM).
Example:
In an Arduino project, you might use the CD74HC4067 to read data from multiple potentiometers using only a few Arduino analog input pins. The Arduino would send the appropriate digital signals to the multiplexer to select each potentiometer in turn, allowing the Arduino to read their values sequentially.

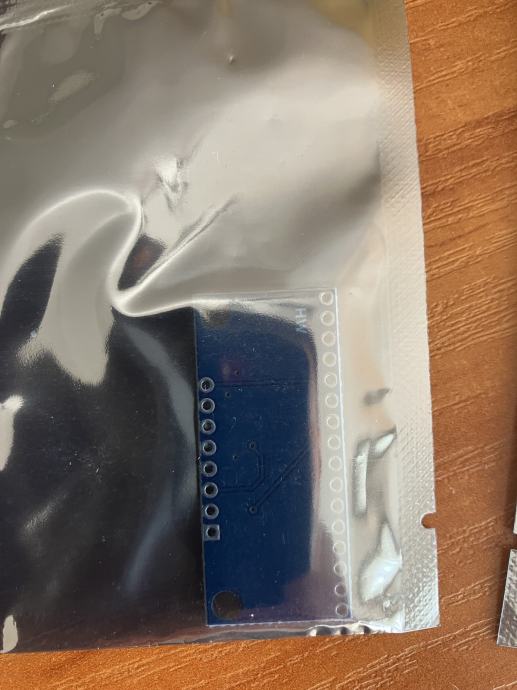

Cijena je za komplet od 5 komada.

Neiskorišteni ostaci od projekta kućnog simulatora letenja, od istog projekta imam dosta drugih dijelova i elektronike pa bacite pogled.
Moguće osobno preuzimanje ili putem PayProtect (BoxNow paketomat, GLS)
