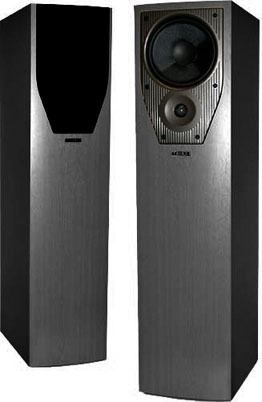

Mission m73

Mission m73, samostojeći zvučnici, izuzetno dobro očuvani, povremeno korišteni i slušani na malim glasnoćama, mogućnost punjenja pijeskom u za to predviđen prostor, prodajem.


Pet zvijezdica (odlična ocjena) na testiranju kod renomiranog britanskog časopisa What Hi-Fi.
------------------------------------------
------ Mob.: 098/ 9282-678 ------
------------------------------------------


PRODUCT INFORMATION GUIDE

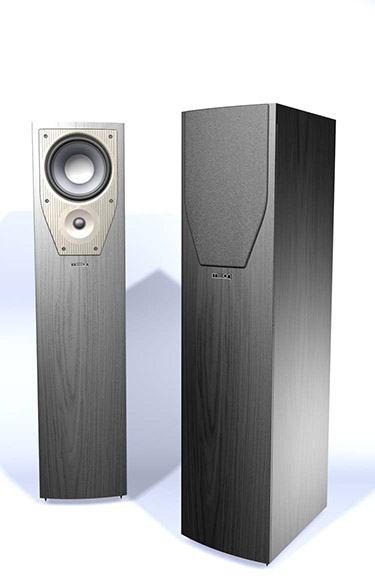

Mission m73 Loudspeaker
The Mission m73 is a floor-standing loudspeaker with powerful extended bass, natural sounding midrange and smoothly integrated, detailed treble. High efficiency and a large dynamic range coupled to truly impressive power handling give this speaker an ease and musical image that belies its size. The sheer micro-fibre dome tweeter offers smoothextended treble with no harshness, sibilance or lack of definition.
With its blend of purposeful styling and dynamic performance the m73 is ideal for music and for the front channels in home cinema installations, where its outstanding bass capability and transient attack will ensure a believable, lifelike performance.

Construction
Enclosure 19mm high density particle board
Baffle High rigidity 22mm MDF with high-impact ABS baffle moulding
Ports Anti-turbulence port tube with optional resistive loading
Grille Acoustically transparent
Damping Acoustic long-hair fibre

Electrical
L.F. Unit 160mm bonded woven glass composite cone with 25mm voice coil
HF unit 25mm sheer Micro-Fibre soft dome with FF cooling
Cross-Over Acoustic Second Order
Terminals Gold-plated, bi-wire multi-way binding posts

Specifications
Enclosure Type 2-Way Reflex Loaded
Frequency Response ± 3 dB 48Hz to 20kHz
Sensitivity SPL/m/2.83V 90 dB
Cross-Over Frequency 2.8 kHz
Effective Volume 18.6 Litres
Nominal Impedance 8 Ohm compatible (min. 4.0 Ohms)
Recommended amplifier power 25 - 100 W/Ch
Cabinet Dimensions (H x W x D) 850 x 200 x 305 (mm)
Finish Graphite Black and European Beech

Features Benefits
Unique IDG inverted driver geometry - smooth phase response throughout the cross-over region
Rigid, profiled MDF baffle - improved transient performance
High Impact ABS moulded baffle - excellent HF dispersion and low diffraction to improve stereo
imaging and create precise images in space
High dB/watt efficiency - equivalent to extra power for amplifier - greater dynamic range
Anti-turbulence port - clean, tight bass with optional resistive loading for room optimisation
Sheer Micro-Fibre soft dome HF unit - ensures excellent high and low level resolution
Neodymium HF unit magnet - improved microdynamics and reduced signal induced demagnetisation effects
Laser trimmed pressure balanced dome - improved dynamics and reduced time smear
High-quality crossover components - Silicon Steel inductors reduce level dependant distortion.
Audiophile grade Polyester Capacitors increase detail transmission
Bonded woven glass composite LF cone - stiff and light ensuring good sensitivity with superb LF response
Pressure balanced, ventilated spider - improved dynamics and reduced time smear
Magnetically shielded - suitable for all AV systems

Setting Up
• RUN IN for a minimum of 24 hours with music programme
• Place within 10 - 40cm from rear wall, smaller rooms need less distance
• Utilise optional resistive loading to optimise bass performance for wall-mount locations
• Ensure minimal toe-in is used, imaging will be impaired
Will clearly show improvements as source improves
