MARTIN WISMAN HPLX 12
- Cijena
- 129 €
Šifra oglasa: 44531461
Osnovne informacije
- Lokacija
- Grad Zagreb, Trnje, Kruge
- Stanje
- novo
- Interna šifra
- 14100
Opis oglasa

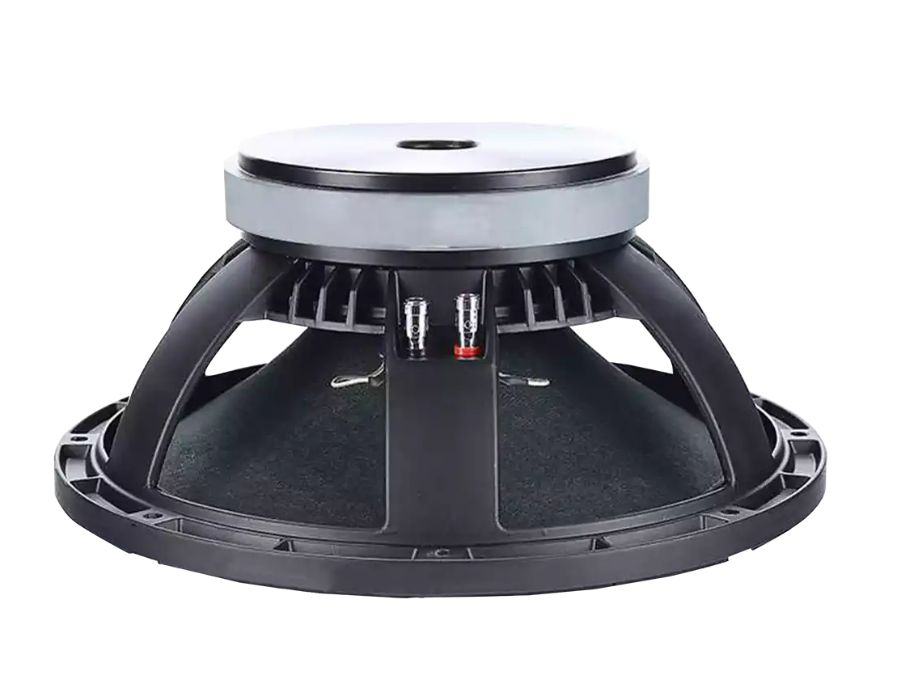

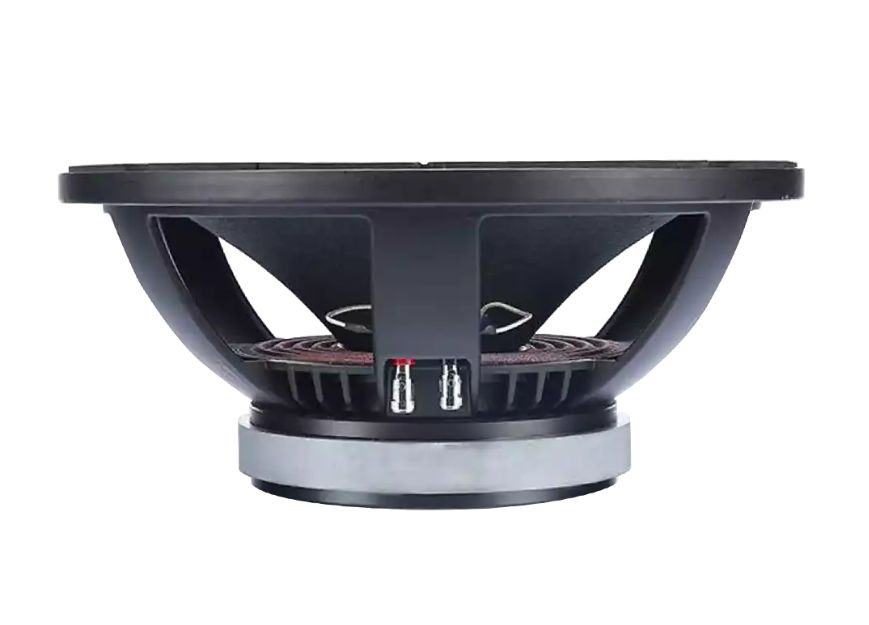

Introduce：12 inch Loudspeaker
1- Model: HPLX 12
2- Rate Impedance: 8Ω
3- Power Handling: 300 W
4- Voice Coil Diameter: 73mm / 3 inch
5- Magnet:Φ190mm Ferrite Ring
General Specifications
Nominal Diameter 300mm/12 inch
Nominal Impedance 8Ω
AES Power Handing 300W
Continuous Program Power 600W
Sensitivity 1W/1M 94.3dB
Frequency Range 46~3.0KHz
Voice Coil Diameter 75mm/3 inch
Windinig Material Copper
Former Material Kapton
Winding Depth 15.5mm
Magnetic Gap Depth 8mm
surround material Polycotton
surround Design M-roll
Magnet Φ190 Ferrite Ring
Thiele & Small Parameters
Resonance Frequency Fs 46Hz
DC Resistance Re 5.2Ω
Mechanical Factor Qms 15.20
Electrical Factor Qes 0.38
Total Factor Qts 0.37
BL Factor BL 16.2T.m
Effective Moving Mass Mms 66gr
Compliance Cms 179μ M/N
Equivalent Cas Air Load Vas 71dm3
Effettive Piston Area Sd 530cm2
η(Eta Zero) η0 1.80%
Mountiong & Shipping Information
Overall Diameter 306mm
Bolt circle diameter 295mm
Baffle Cutout Diameter 272mm
Depth 145mm
Net Weight 6.5kg
Shipping Weight 6.8kg
Shipping Box(Single) 32.5x32.5x17cm
*Ne odgovaramo za pogrešne opise i cijene, fotografije ne moraju u potpunosti odgovarati stvarnom izgledu proizvoda već ih treba shvatiti samo kao informativnu ilustraciju. Za točne informacije posjetite SLUŽBENU WEB stranicu- https://www.player.hr/ ili nazovite +385977148673.
