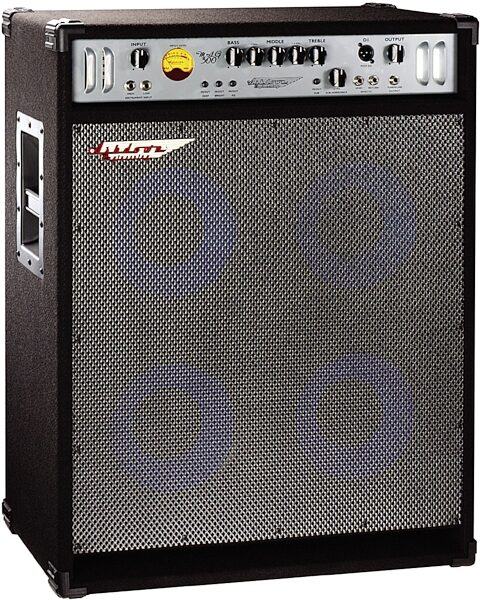

Ashdown MAGC410T Bass Combo Amplifier (300 Watts, 4x10 in.)

Overview

The MAG C410T-300 4 x 10 in. + tweeter combo features a potent new fan-cooled 307 watts RMS power section. Rotary bass, middle and treble controls are supplemented by smaller rotary controls providing 15dB of cut and boost at 220Hz and 1.6kHz, providing a comprehensive 5 band EQ section. Additionally, front panel push switches for Bright and Deep settings provide instant access to attacking and warm, rounded sounds respectively and, on the subject of low-end response, the trademark Ashdown sub-harmonic generator is ready and able to deliver truck loads of earth moving tone if called upon.

Inputs are provided for active and passive instruments and the front panel also features an effects send and return, a tuner/line output and a balanced DI output for direct connection to a mixing console.

All MAG combos have extension speaker outputs and are loaded with Ashdown BlueLine speakers for exceptional attack, clarity and low-end performance. Protection is provided by tough black carpet covering and new steel grilles, while the amplifier chassis is constructed from light yet strong, heat-dissipating magnesium alloy for 'roadie-free' portability. And, of course, the famous Ashdown VU meter remains central to the cool look of these great, value for money bass amplifiers

Specs
-
Power Output: 307 watts RMS

Speaker Configuration: 4x10 in. BlueLine speaker + tweeter

Height: 655mm (25.8 in.)

Width: 604mm (23.8 in.)

Depth: 420mm (16.5 in.)

Weight: 35.5kg (78.3 lbs.)

High Input Impedance: 3.9MOhms / Input range 150mV - 20V p-p

Low Input Impedance: 10KOhms / Input range 300mV - 40V p-p

Line Input Impedance: 22kOhms / Input level 0dBu nominal

Effects Return Impedance: 22kOhms / Level 0dBu nominal

Tuner Output Impedance: 22kOhms / Level 0dBu nominal

Effects Send Impedance: 22kOhms / Level 0dBu nominal

DI Output: 600 Ohms balanced / Level -20dBu nominal

Speaker Outputs: Minimum impedance 4 Ohms

Bass: +/-15dB @ 100Hz

Lo Mid: +/-15dB @ 220Hz

Middle: +/-15dB @ 660Hz

Hi Mid: +/-15dB @ 1.6kHz

Treble: +/-15dB @ 7kHz shelving

Deep: +8dB @ 50Hz

Bright: +10dB @ 10kHz

Signal to Noise: Better than 80dB (EQ flat)

Distortion: Less than 0.5% THD

Frequency Response: -3dB at 17Hz and 30KHz

Power Requirements: 230 /115v
