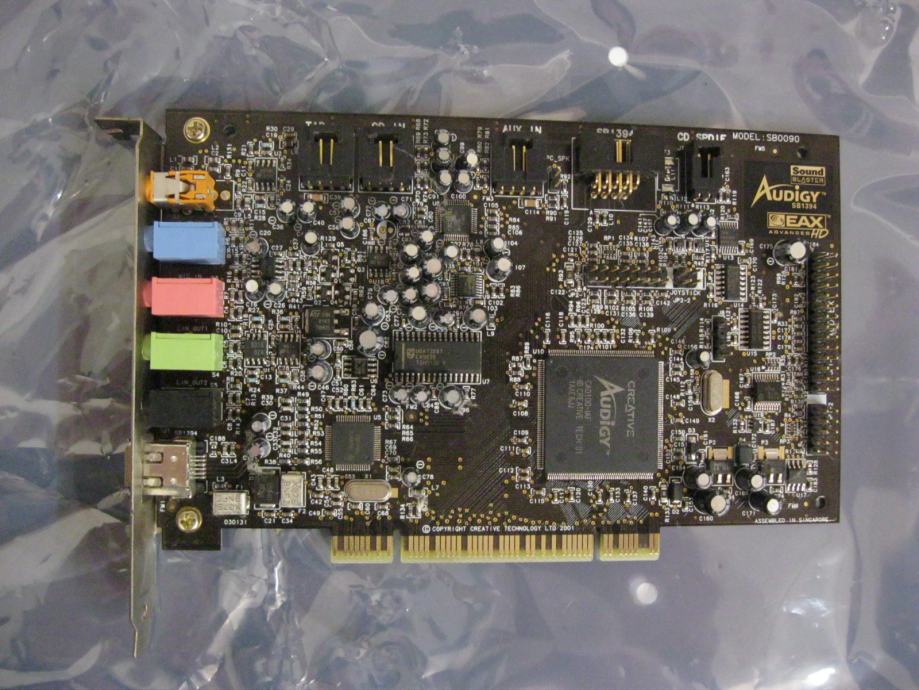

Creative Sound Blaster Audigy SB0090

32-bit Professional Quality Effects Engine

Creative's Audigy™ patented effects processor
Support for real-time digital effects like reverb, chorus, normalizer, pitch shifter, or distortion across any audio source
Capable of processing, mixing and positioning audio streams using up to 131 available hardware channels
Full 32-bit digital mixer maintains all sound mixing in the digital domain, eliminating noise from the signal


High Definition Audio Quality

Playback of 64 audio channels, each with its own independent sample rate
24-bit Analogue-to-Digital conversion of analogue inputs at 48kHz sample rate
24-bit Digital-to-Analogue conversion of digital sources at 48kHz to analogue 5.1 speaker output
16-bit recording with sampling rates of 8, 11.025, 16, 22.05, 24, 32, 44.1 and 48kHz
Supports Sony/Philips Digital Interface (SPDIF) format input signal of up to 24-bit/96kHz quality
SPDIF output up to 24-bit resolution at selectable sampling rate of 44.1, 48 or 96kHz
Low latency multi-track recording with ASIO support


SB1394™ Connectivity

High speed connection to IEEE1394-enabled devices with up to 400Mbps transfer rate
Hot-plug support for ease of connecting or disconnecting external devices
Interconnection of up to 63 devices for peer-to-peer communication
SB1394™ Certification Program thoroughly tests and certifies participating vendors' 1394-enabled devices with Sound Blaster® Audigy™ for optimal performance and ease of use.


Sound Blaster® Audigy™ On-Board Connectors

Analogue / Digital Out (Analogue Center & Subwoofer / 6-channel SPDIF Output)
Line in
Microphone in
Line level out (Front) / Headphone out
Line level out (Rear)
SB1394™ port
Telephone Answering Device in
Analogue CD Audio in
Digital CD Audio in
Expansion header to an external 15-pin MIDI / Joystick port
Internal SB1394™ header to Sound Blaster® Audigy™ Drive (upgrade option)
Expansion header to the Sound Blaster® Audigy™ Drive (upgrade option)
