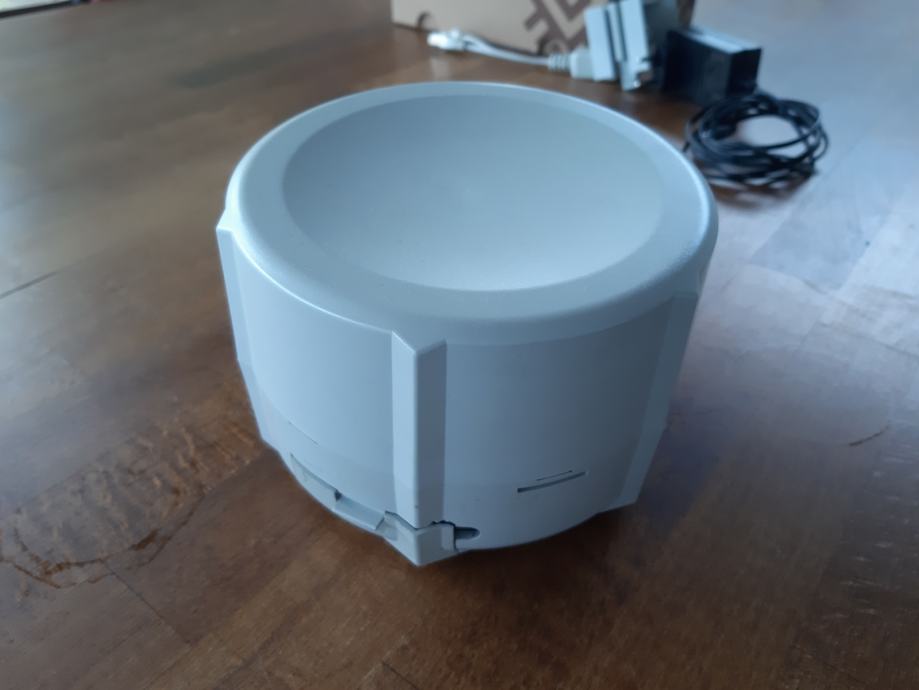

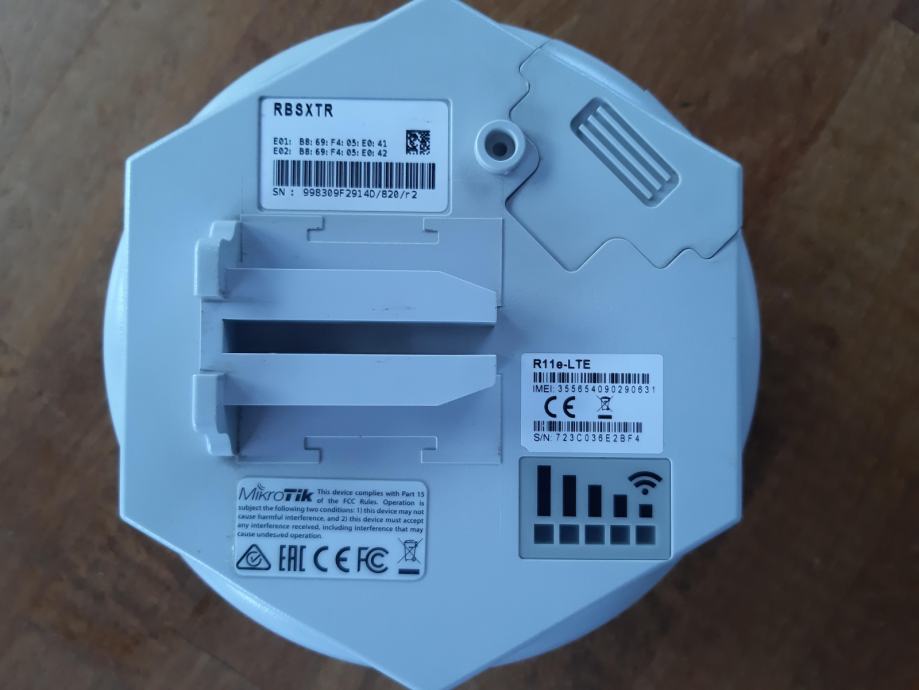

Mikrotik SXT LTE kit za mobilni internet (router / LTE modem / antena)

Ispravno, kompletno.
Radi na domaćim mrežama.
Video u prilogu je na Mađarskom, ali ima subtitlove.


Mikrotik SXT LTE kit, RBSXTR&R11e-LTE, 9dBi 60° LTE direkciona antena, 650MHz CPU, 64MB RAM, 2xLAN (1×PoE-OUT), LTE modem, Dual-SIM, RouterOS L3, vanjsko kučište, PSU, PoE injecto

Click to enlarge image 41748_01.jpg
Click to enlarge image 41748_02.jpg


Cijena: 818,61 kn (VPC)
Šifra artikla: 41748
Robna marka: MIKROTIK
Jamstvo: 12 mjeseci

Tehnička specifikacija
- The SXT LTE kit (product code RBSXTR&R11e-LTE) is a device for remote locations that are within cellular network coverage
- However, due to it’s professional LTE chip design and high gain antenna, it can provide connectivity for your building even where cell phones cant
- In comparison with our first generation model RBSXTLTE3-7, the SXT LTE kit is powered by faster CPU and supports not only LTE with more speeds, but also 2G and 3G, as well as much wider band range

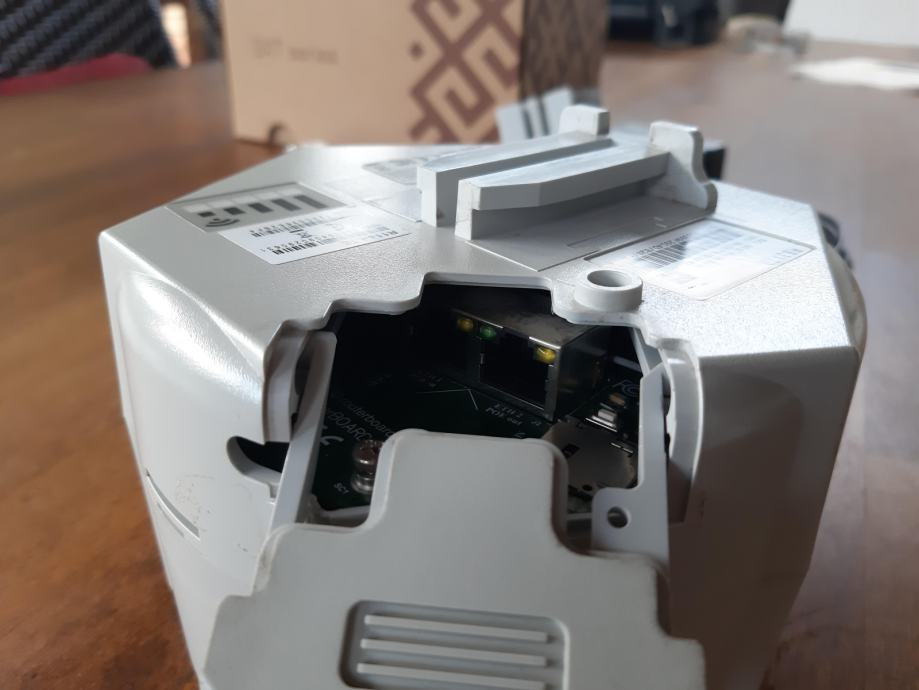

- The unit is equipped with two Ethernet ports (the second port has PoE-out functionality), so you can use it to power up another device
- Unit is shipped with a 24 V power supply, but can support full range 18-57 V and is 802.3af/at compliant
- The device has a built in high quality 2G/3G/4G/LTE Category 4 modem for speeds of up to 150 Mbit/s downlink and 50 Mbit/s uplink, as well as two Micro SIM slots for backup link
- RBSXTR&R11e-LTE includes LTE modem that supports International LTE bands 1, 2, 3, 7, 8, 20, 38 and 40

Specifications
- Architecture: MIPSBE
- CPU: QCA9531
- CPU core count: 1
- CPU nominal frequency: 650 MHz
- Dimensions: 140×140×103 mm
- License level: 3
- Operating System: RouterOS
- Size of RAM: 64 MB
- Storage size: 16 MB
- Storage type: FLASH
- Tested ambient temperature: -40C ... +60C

POWERING
- Max Power consumption: 6W
- PoE in: 802.3af/at
- PoE out: Passive PoE up to 57V
- PoE in input Voltage: 18-57 V
- Number of DC inputs: 1 (PoE-IN)

MOBILE
- 2G Category: Class12
- 3G Category: R7 (21Mbps Downlinks, 5.76Mbps Uplink)
- LTE Category: 4 (150Mbps Downlink, 50Mbps Uplink)
- LTE FDD bands: 1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz)
- LTE TDD bands: 38 (2600MHz) / 40 (2300MHz)

ETHERNET
- 10/100 Ethernet ports: 2

PERIPHERALS
- Number of SIM slots: 2 Modem (Mini SIM)
- MiniPCI-e slots: 1

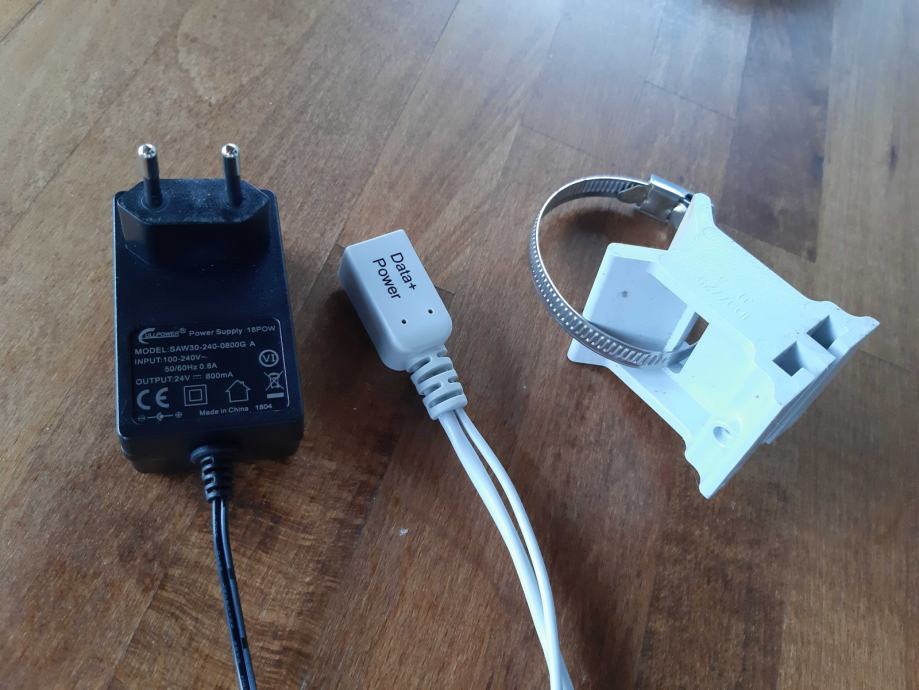

INCLUDED PARTS
- 24V 0.38A power adapter
- PoE injector
- Metal ring (one)
- Pole mounting bracket
