Iskra P56 - 4G GSM antena
- Cijena
- 40 €
Šifra oglasa: 46803287
Osnovne informacije
- Lokacija
- Sisačko-moslavačka, Sisak, Caprag/Željezara
- Stanje
- rabljeno
Opis oglasa
Prodaje se set od dvije antene Iskra P56 za 4G mrežu.

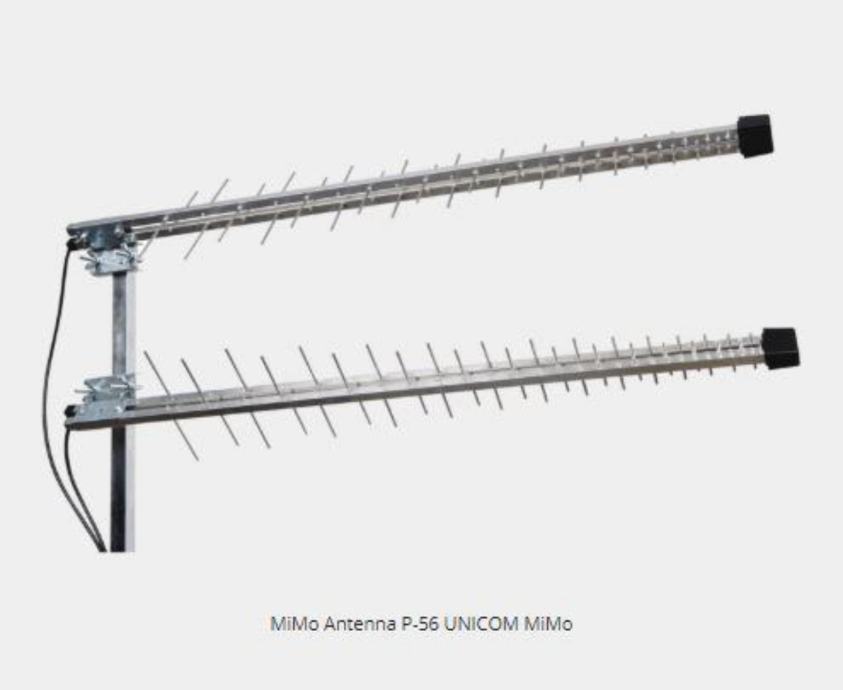

Antenna set P-56 UNICOM MIMO is used for the reception of mobile operators' signals in MIMO technology (two antennas mounted into X polarity). The antenna set covers wide frequency range from LTE 800 to LTE 2,6 GHz frequency bands. Set is the most suitable for connecting it to Wi-Fi router or MIMO modem.
One set contain two antennas (one for upper and one for lower mounting position) with the same technical data.
Gain: 9,5-11,5 dB(i)
Technical data for one antenna:
Freq. band (frequency): LTE 800 (790-862 MHz), GSM 900 (880-960 MHz), DCS 1800 (1710-1880 MHz), UMTS (3G) (1920-2170 MHz), Wi-Fi (WLAN) (2401-2495 MHz) and LTE 2,6 GHz (2,5-2,7 GHz)
No. of elements: 56
Gain: 9,5-11,5 dB(i)
Max. VSWR: %mylt% 1,5 : 1
F/B ratio: 24 dB
Beam width: Horizontal 52°; Vertical 44°
Polarization: 45°
Impedance: 50 Ohm
Max. power connection: 50 Watt
Antenna length: 98 cm
Coaxial cable: impedance 50 Ohm, cable length 10 m, »SMA« male connector on cable end
Mounting specification:
Mounting on mast with outside diameter: 20-50 mm
Minimum distance between the antennas: 57 cm
Optimum distance between the antennas: 84 cm
Antenna set P-56 UNICOM MIMO is used for the reception of mobile operators' signals in MIMO technology (two antennas mounted into X polarity). The antenna set covers wide frequency range from LTE 800 to LTE 2,6 GHz frequency bands. Set is the most suitable for connecting it to Wi-Fi router or MIMO modem.
One set contain two antennas (one for upper and one for lower mounting position) with the same technical data.
Gain: 9,5-11,5 dB(i)
Technical data for one antenna:
Freq. band (frequency): LTE 800 (790-862 MHz), GSM 900 (880-960 MHz), DCS 1800 (1710-1880 MHz), UMTS (3G) (1920-2170 MHz), Wi-Fi (WLAN) (2401-2495 MHz) and LTE 2,6 GHz (2,5-2,7 GHz)
No. of elements: 56
Gain: 9,5-11,5 dB(i)
Max. VSWR: %mylt% 1,5 : 1
F/B ratio: 24 dB
Beam width: Horizontal 52°; Vertical 44°
Polarization: 45°
Impedance: 50 Ohm
Max. power connection: 50 Watt
Antenna length: 98 cm
Coaxial cable: impedance 50 Ohm, cable length 10 m, »SMA« male connector on cable end
Mounting specification:
Mounting on mast with outside diameter: 20-50 mm
Minimum distance between the antennas: 57 cm
Optimum distance between the antennas: 84 cm
