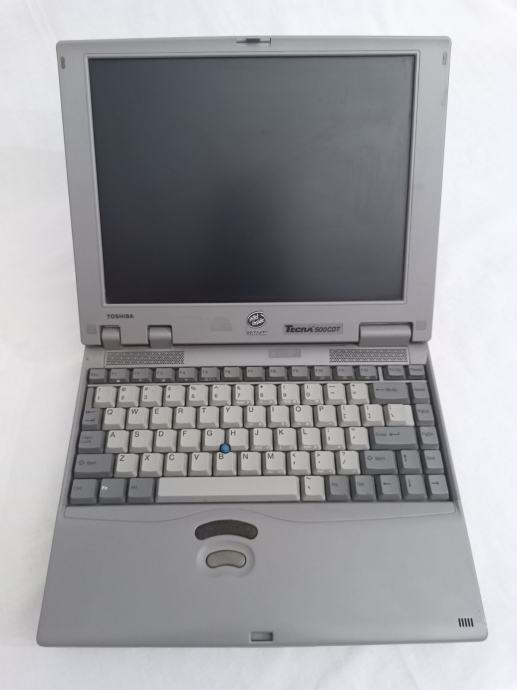

Toshiba Tecra 500CDT

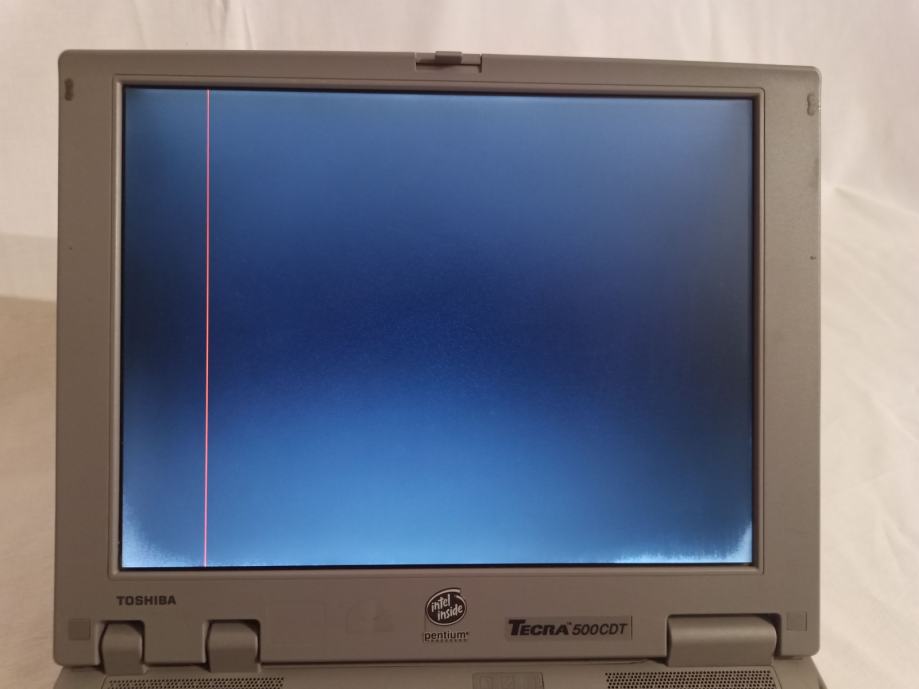

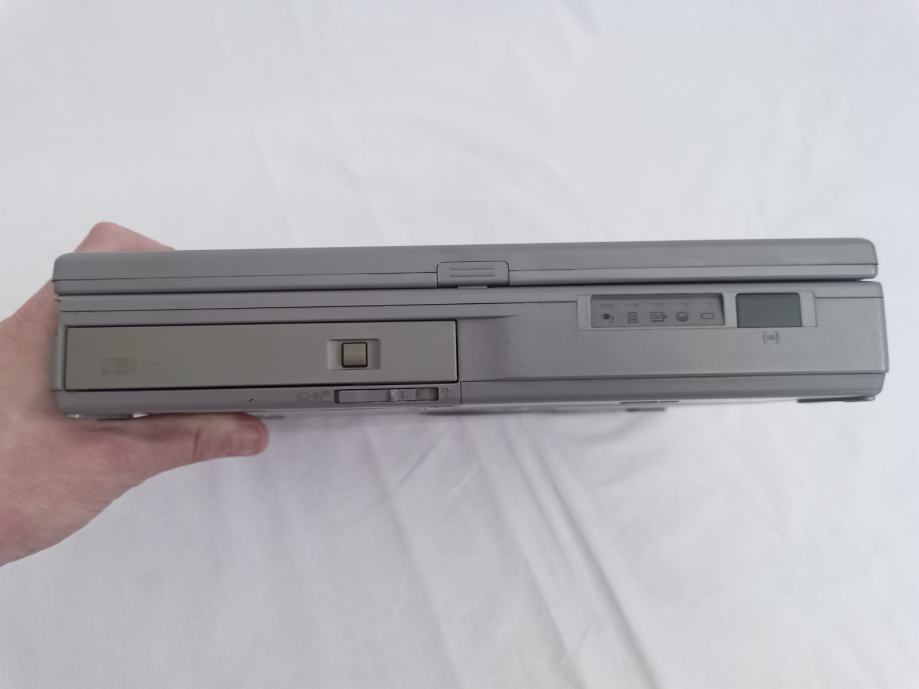

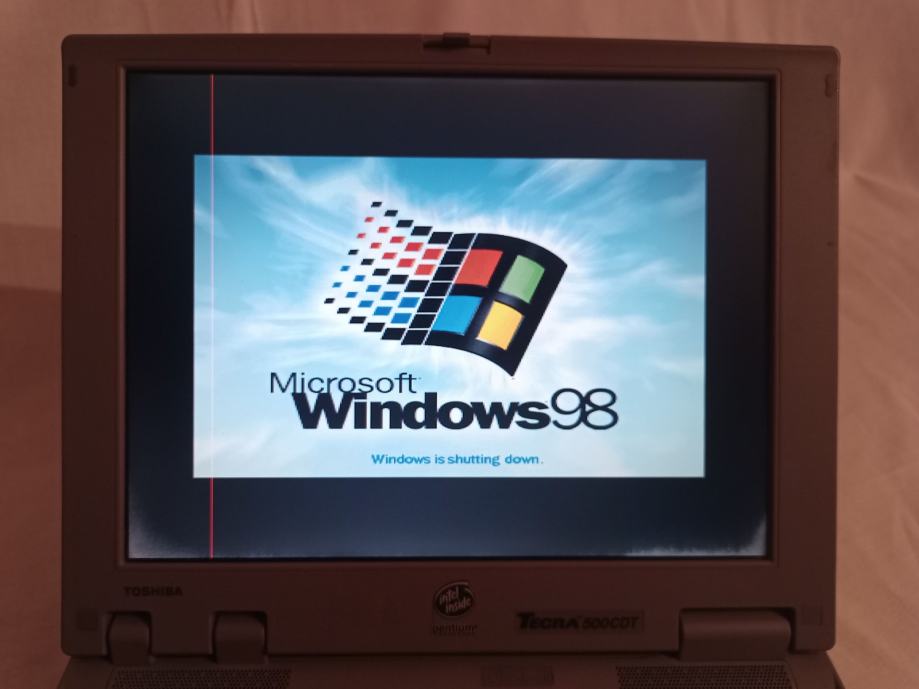

Ispravan, ima pukotine na vise mjesta na kucistu, bijele mrlje na kutevima ekrana i vertikalnu crvenu liniju s lijeve strane ekrana.

Predmet je dostupan sve dok je oglas aktivan.

Radi Vaseg osjecaja sigurnosti oko kupnje slobodno pogledate moje ostale oglase, kao i vrijeme trajanja moga clanstva. Lp.

Specifikacije skinute sa interneta, moguca su odstupanja.
500CDT:1.3 Billion Bytes: PA1221U-T2A
PROCESSOR
Intel Pentium 120Mhz (2.9v/3.3v) w/VRT Yes
External data bus width 64 bit
External data/address bus speed 60 MHz
Integrated Coprocessor Yes
Processor Cache 16KB: (8KB code; 8KB data)
LEVEL 2 (L2) CACHE Yes
Data Bus Width 64 bit
Data Bus Speed 60 MHz
DATA RAM: Yes
1 Mbit Pipelined Burst Synchronous SRAM (32K x 32bit, 3.3V) x 2
Access Time 8 ns
TAG-RAM: Yes
256Kbit Asynchronous SRAM (32K x 8bit, 3.3V) x 1
Access Time 14 ns
SYSTEM ARCHITECTURE (All models)
PCI BUS: (32-bit, 30 MHz) Connecting Devices: PC Card Slots, Expansion Bus, Graphics Controller
ISA BUS: 16-bit, 8 MHz Connecting Devices: BIOS, FDD, HDD, CD-ROM, Sound chip, KBC
MEMORY: 16Mbit EDO DRAM, 3.3V
Standard 16 MB
Maximum 144 MB
Speed 60ns
Hyper Page mode memory access Yes
Data width 64 bit
BIOS (256KB FLASH EPROM, 150ns, 5V) Yes
PnP 1.0a SUPPORT Yes
DISPLAY
Type TFT Active Matrix Color
Size 12.1” (9.68”W x 7.26”H)
Dot Pitch .30mm x .30mm
Contrast Ratio 100:1 (min)
VIDEO
Memory: 4Mbit EDO DRAM, 5V 2 MB
Speed 50ns
Hyper Page mode support Yes
Controller Chip C&T HIQV32 (CT65550)
PCI Bus Architecture w/burst mode Yes: 32-bit, 30 MHz
Graphics Accelerator: Yes
64-bit BitBLT, LINEdraw, H/W Cursor Yes
Video Accelerator: Yes
YUV-to-RGB color space conversion Yes
Zoomed Video Port Support Yes
DirectVideo support Yes:w/Game SDK driver fr/Microsoft
Color Palette 16.7M colors
Internal Resolution 800 x 600 x 16.7M/16.7M colors
Smaller Image 640 x 480 x 16.7M/16.7M colors
Virtual Display Mode 1024 x 768 x 64K/64K colors
1280 x 1024 x 256/256K colors
External Resolution Colors/Palette
640 x 480 16.7M colors/16.7M colors
800 x 600 16.7M colors/16.7M colors
1024 x 768 64K colors/64K
1280 x 1024 256 colors/256K
Refresh Rate @ 1024x768/ 64k colors Non-Interlaced 1 Vert.: 60Hz; Hor.: 48.5kHz
1. Refresh Rate @ 1024x768/ 256 colors Non-Interlaced : Vert.: 85 Hz; Hor.: 68.8 kHz
TECRA 500CDT Product Specifications
Toshiba America Information Systems Inc. ("TAIS") shall not be liable for damages of any kind for use of this information, which is subject to change without
notice. Copyright 1996 TAIS 500.doc Rev. 15 02/07/00 nmm. Page 2 of 3
500CDT:1.3 Billion Bytes: PA1221U-T2A
STORAGE
Removeable HDD (2.5” Enhanced IDE) 1.3 billion bytes=1.26GB (13msec)
SELECT BAY DEVICES
Modular FDD (3.5” 1.44MB) Included/Swappable with CD-ROM
FDD Dimensions 4.57”L x 3.8”W x .59”H
FDD Weight Weight: .29 lbs
Simultaneous FDD & CD-ROM Support3 Yes: External FDD adapter included
FDD Adapter Dimensions 7.0”L x 5.5”W
FDD Adapter Weight .25 lbs
Modular HDD (2.5” Enhanced IDE) Optional/Swappable with FDD
Capacity 1.3 billion bytes=1.26GB (13msec)
Modular CD-ROM: Toshiba XM-1402B
5.25” 6x-speed Installed/Swappable with FDD
Weight .4 lbs
Interface .ATAPI (Enhanced IDE)
Random Access Time 190 ms
Sustained Transfer Rate 1,026 KB/sec
Supported Disc formats CD-DA, CD-ROM, CD-ROM XA, CD-Bridge (Photo-CD, Video-CD),
CD-I, CD-I Ready, CD-G, Multisession (Photo-CD, CD-Plus)
KEYBOARD
82 keys, 3mm Travel Yes
12 dedicated function keys Yes
Cursor control (8 Keys, Inverted “T”) Yes
Numeric keypad (Integrated Overlay) Yes
Integrated Pointing Device AccuPoint
EXPANSION SLOTS
Two Stacked PC Card Slot2 Yes: CardBus & ZV Card Ready
32-bit, 3.3V PC CardBus Support Yes
16-bit, 5.0V PC Card Support Yes
Internal Memory Slot (One only) Yes

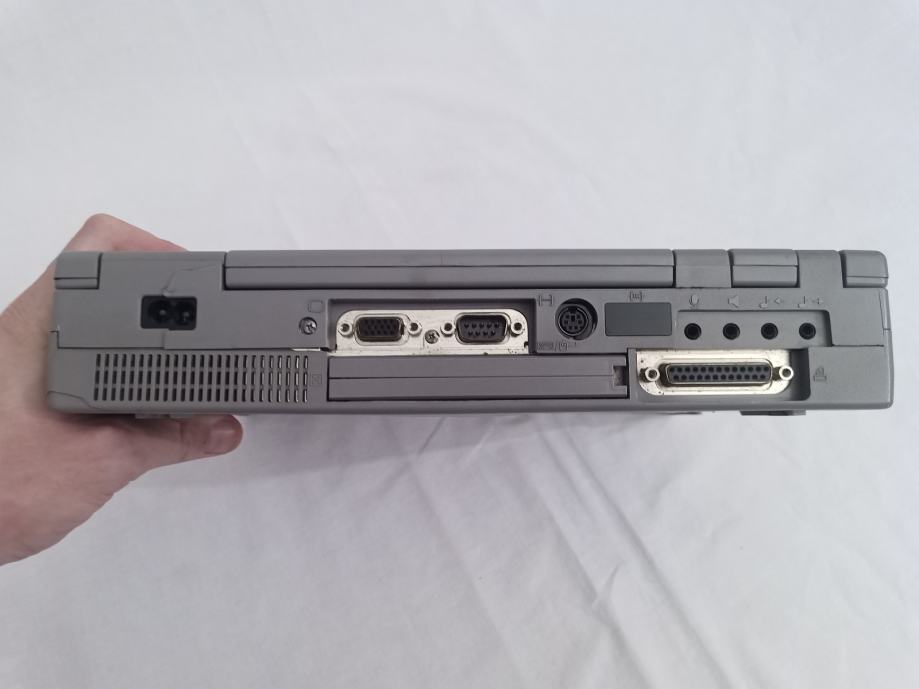

EXPANSION PORTS
One RJ-11 port for internal modem (supplied) Yes
One 9-Pin Serial (16550 UART compliant) Yes
One 25-Pin Parallel (8 bit ECP) Yes
One 15-Pin RGB (SVGA video) Yes
Fast Infrared ports (Front and Back) Yes: IrDA 1.1:4Mbps compatible
One (PS/2) 101 Keyboard/Mouse port Yes
One External Floppy Drive port Yes
Microphone (3.5mm mini jack, monoaural) Yes
Headphone (3.5mm mini jack, stereo) Yes
Line-in (3.5mm mini jack, stereo, 2V rms) Yes
Line-out (3.5mm mini jack, stereo, 0.7V rms) Yes
Noteworthy security lock port Yes
INTERNAL MODEM (All Models) 28.8 /14.4 Kbps Data/Fax/Voice modem
Data support
Protocols supported Bell-103/212A, CCITT-V.21/V.22, V.32, V.32bis, V.34
Error correction MNP 1-4
Data compression MNP 5, CCITT V.42 bis
Fax support
Protocols supported V.21 ch2, V.27 ter, V.29, V.17
Fax class 1
Supported Functions Speaker phone, Telephony Answering Machine, Ring Wake-up Resume
Incoming Call Discrimination, Caller ID
