Yamaha aw16g digitalni snimač/sampler

Prodajem vrhunski digitalni snimač sa 16 kanala po super cijeni. Očuvan, bez oštečenja, u potpunosti ispravan, super prilika. Moguće ga je pogledati na području Rijeke i Krka. Uređaj ima 20gb memorije na u sebi ili cca 900-1000min snimanja. Audio/vaw file exportira se preko integriranog cd snimača.
Uređaj može u isto vrijeme snimati input 8 kanala.
Uređaj dolazi sa adapterom, upute za korištenje se nalaze na yamahinoj web stranici.
Šaljem pošto, za ostala pitanja stojim na raspolaganju putem mobitela (poziv/viber/whatsupp).

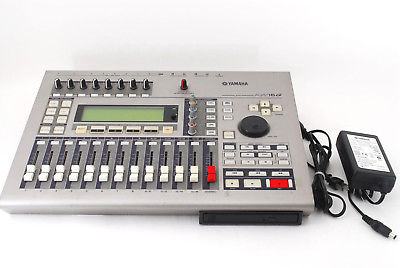

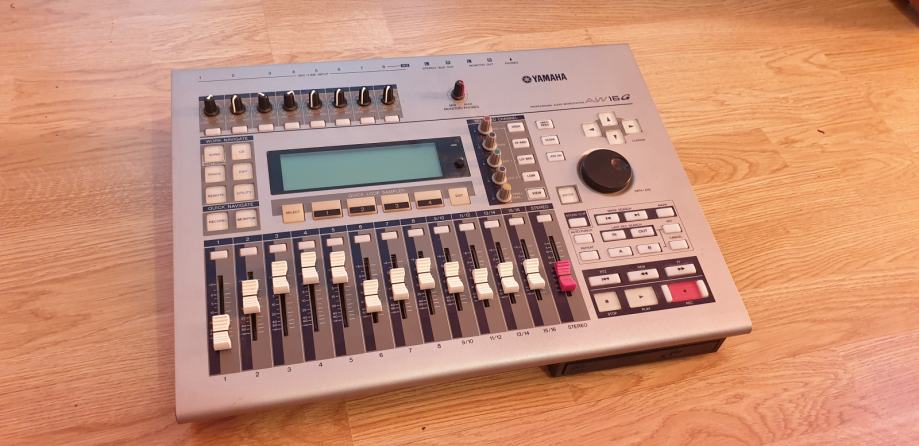

1. fotografija je baš od uređaja koji se prodaje, ostale fotografije su sa weba, originalne fotografije ili video šaljem na upit.

Zamjene isključene.


Internal Processing 32bit
Sampling Frequency 44.1kHz ±6%
Frequency Response 20 Hz - 20kHz (0 +1/-3 dB Mic/Line In Stereo Out)
Total Harmonic Distortion Less than 0.03% @1kHz/ -10dBV (Line In to Stereo Out)
Dynamic Range 103 dB Typ. (Line In to Stereo Out)
Phantom Voltage +48V
AD Converter 24 Bit
DA Converter 24 Bit / 128 times oversampling
MIDI MTC, MIDI Clock, MMC, Program Change, Control Change, Bulk Dump, MIDI Remote
Memory Scene Memory, EQ Library, Dynamic Library, Effect Library, Channnel Library, Sample Library
Fader 45 mm x 13
Display 240 x 64-dot backlit LCD
Dimensions Width 425mm (16-3/4")
Height 98.8mm(3-7/8")
Dimensions 321.5mm (12-3/4")
Net Weight 4.4kg(9.7lbs.)
Operating Temperature 5-35 degrees
Mixer

Audio Input Section Mic/Line Input x 8, Internal Effect Return x 4, Recorder Monitor x 16, Quick Loop Sampler x 4 Stereo
Audio Output Section Total 8 Busses (Bus x 2, Aux x 2, Stereo, Effect x 2)
Mixer Input Section Attenuation, Phase, 4-band fully parametric EQ, Dynamics, Bus assign, Channel ON/OFF, Pan
Internal Effect Section Input Library (for Electric Guitar, Acoustic Guitar, Bass, Vocal, Speaker Simulator), Masterring Library, Reverb, Delay, Modulation, Distortion, Dynamics, Multi, etc.
Recorder

Recording Resolution 16 Bit Liner (uncompressed)
Sampling Frequency 44.1kHz
Maximum Number of Songs 1,000 songs
Maximum Number of Simultaneous Recording / Playback Tracks 16tracks/ 8tracks
Number of Tracks 144 Tracks (16 Tracks + Stereo Track) x 8 Virtual Tracks
HDD 2.5" IDE (pre-installed, 20 GB)
Edit Functions Locate Point :RTZ, A/B, LAST REC IN/OUTMark :99Punch I/O:Auto Punch I/O, Manual Punchi I/O
CD-RW DRIVE CD-RW Section: Yamaha CDRW 16G(Option)Function Playback/Make audio CD, Import from audio CD, WAV file import/export Save/Load backup data from/to HD
Communication with External Devices

MIDI IN 5pin DIN
MIDI OUT / THRU 5pin DIN
FOOT SW 1/4" jack (to use FC5)

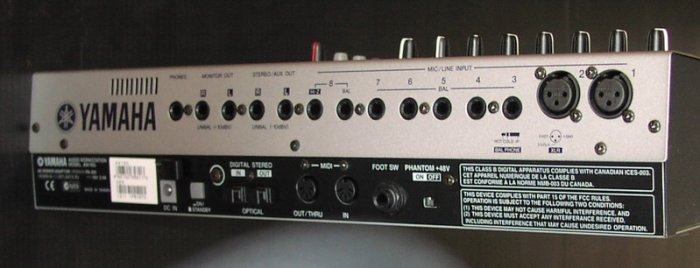

Analog Input Characteristics

Input Terminals Mic/Line In 1,2 (Balanced XLR)Mic/Line In 3-8 (Balanced TRS Phone)Mic/Line In 3-8 (HI-Z) 8 (Unbalanced Phone)
Input Level (Nominal) Nominal Input Level/ -46 dB - + 4dB+48V Phantom power suppliedNominal Input Level/ -46 dB - + 4dBNominal Input Level/ -46 dB - + 4dB
Analog Output Characteristics

Output Terminals Stereo/Aux Out (Unbalanced Phone)Monitor Out (Unbalanced Phone)Phones
Output Level (Nominal) Nominal Output Level/ -10 dBVNominal Output Level/ -10 dBVMax. Output Level 100 + 100 mW Typ. (40 ohm load)
Digital Input Characteristics
