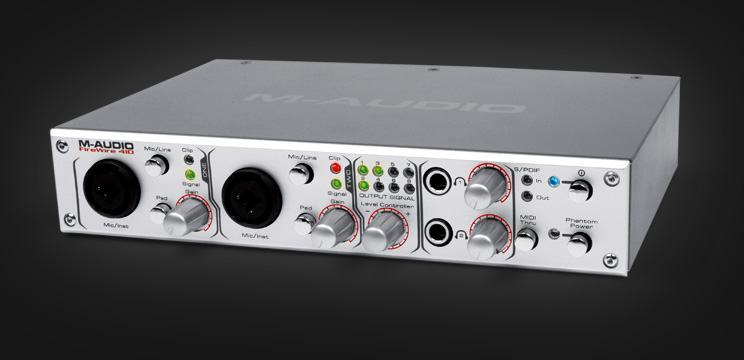

M-Audio Firewire 410 studijska zvučna kartica

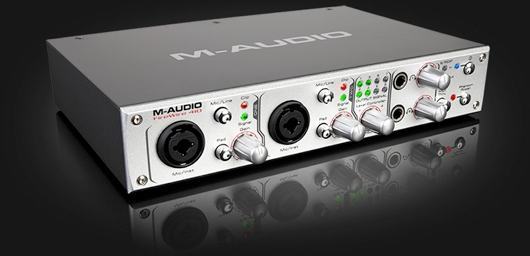

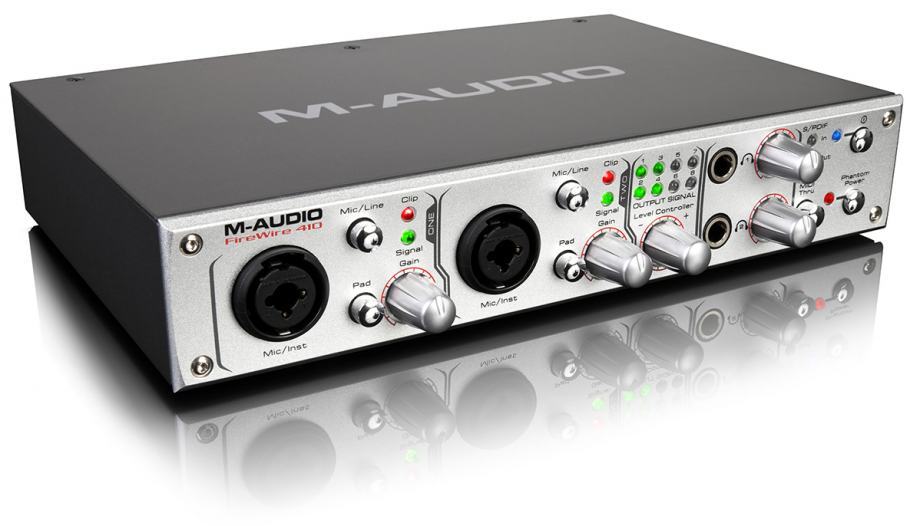

M-Audio Firewire 410

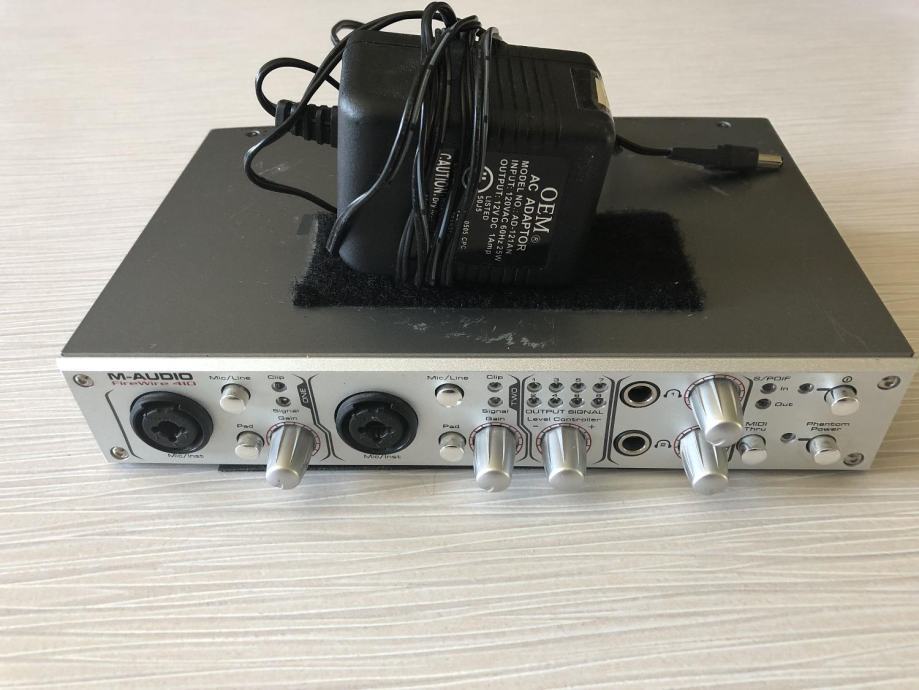

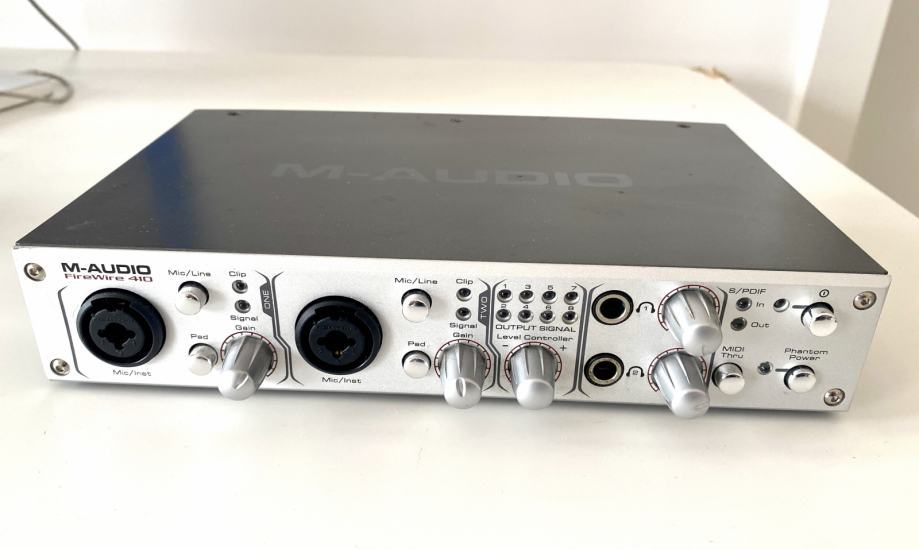

Prodajem dobro očuvanu M-Audio Firewire 410 zvučnu karticu
Vrhunska profi studio zvučna kartica
Radi na svim sustavima Mac ili Windows
4 ulaza- 10 izlaza
2 izlaza za slušalice
• 24-bit resolution playback at 192KHz sampling rate
Midi in-out
Phantom power switch 48v

Specifikacija:

Converters 24-bits
Sample Rates : Line input and output - 32kHz to 192kHz
S/PDIF I/O - 44.1, 48 and 96kHz

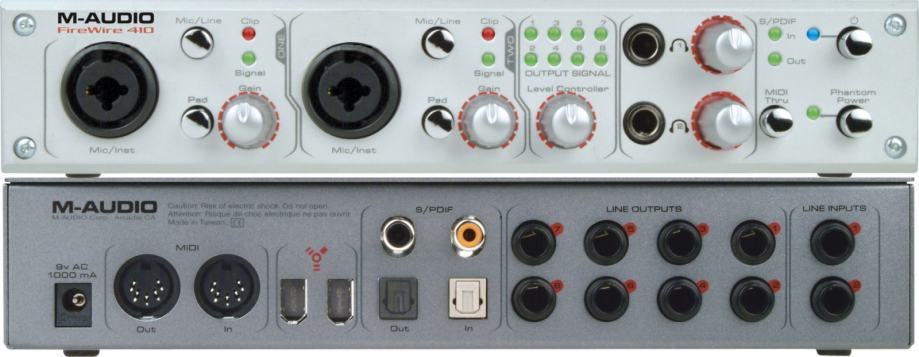

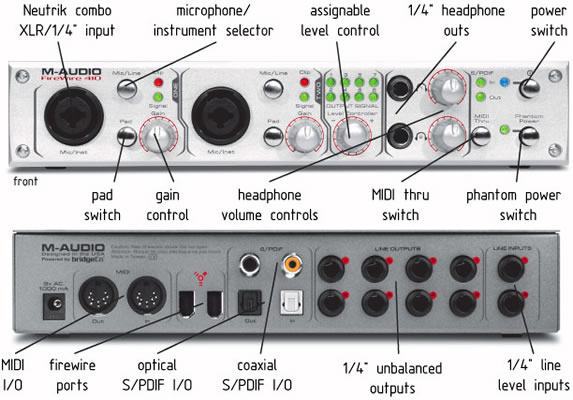

Analog In 2 x XLR Neutrik Combo (front panel)
2 x 1/4" TS phone (rear panel)

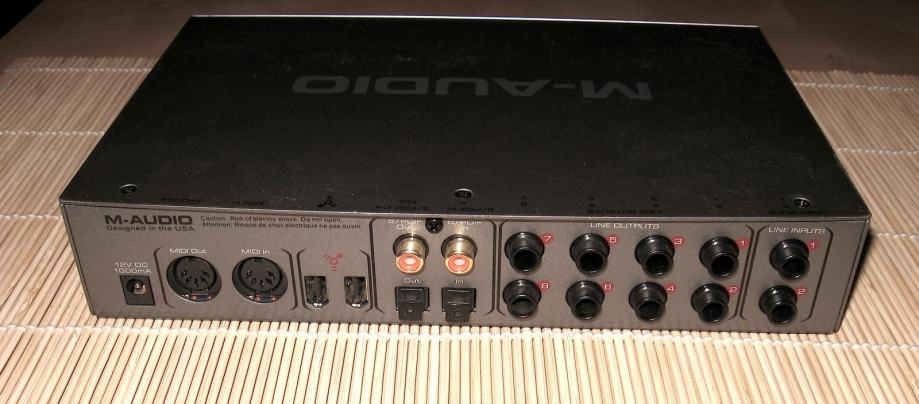

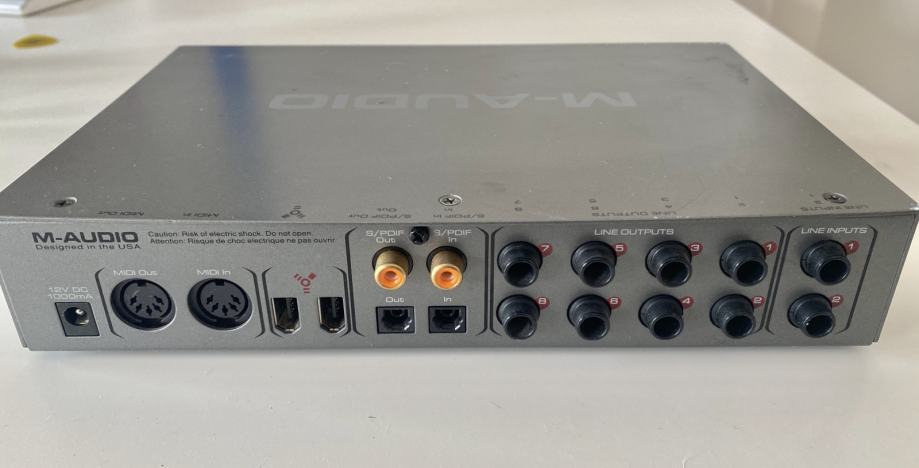

Analog Outputs 8 x 1/4" TS phone (rear panel)
Digital Input Connectors S/PDIF on TOSlink and coaxial connectors
Digital Output Connectors S/PDIF on TOSlink and coaxial connectors
MIDI In/Out Yes
Sync In/Out S/PDIF sync
Headphone Output Yes
THD + N 0.00281% @ 0dBFS
Dynamic Range 108dB (A-weighted)
Frequency Response 20Hz to 40kHz, +/- 1dB
Minimum System Requirements
Mac:
PowerPC G3 500MHz or higher
OS 9.2 or later, OS 10.1.5 or later
128MB RAM (OS 9), 256MB RAM (OSX)
PC:
Pentium III 500MHz or higher
Windows XP (SP1) or Windows 2000 (SP3)
128MB RAM
DirectX 8.1 or higher
Specialties Analog outputs support up to 7.1 surround (software dependent)

**********************
4x10 24-bit/96kHz full-duplex recording interface
8 analog outs, -10dB unbalanced signal levels
2 analog ins, configured for -10dB unbalanced signal level
S/PDIF digital I/O on gold-plated RCA connectors
Settings include AC3 or DTS surround and copy protection schemes configurable with included control panel software
High dynamic range (A-weighted measured): D/A 101.5 dB, A/D 99.6 dB
Low distortion (measured THD @ 0dBFS): A/D and D/A less than 0.002%.
Frequency response:
22-22kHz, -0.2,-0.4dB @48kHz
22-40kHz, -0.2,-0.7dB @96kHz
All data paths support up to 24bit/96kHz performance
Comprehensive digital mixing, routing, and monitoring capabilities
with included Delta Control Panel software
Hardware sample-accurate sync allows linking of multiple units


Features
Flexible routing
Unsurpassed fidelity
Superior driver technology
Broadest compatibility of any card
Zero latency monitoring
Bit-for-bit accurate digital transfers via S/PDIF
24-bit/96kHz recording
Control over SCMS
Gold-plated jacks and connectors
System requirements PC: Windows 95, 98, 2000, or ME; Pentium III 500 MHz and 128MB of PC100 RAM for 96kHz operation
Pentium II 400 and 64MB of SDRAM for 48kHz operation
System requirements Mac: MacOS 8.6 or higher; G4 or G3; 128MB RAM for 96kHz operation; 64MB RAM for 48kHz operation
