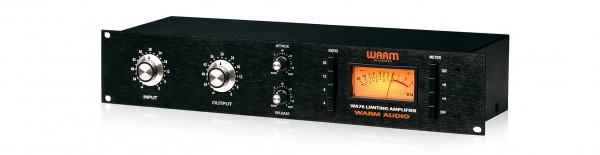

WARM AUDIO WA76 - limiter/kompresor
- Cijena
- 879 €
Šifra oglasa: 30617295
Osnovne informacije
- Lokacija
- Grad Zagreb, Trnje, Savica
- Stanje
- novo
- Interna šifra
- 12123
Opis oglasa
The WA76 Discrete Compressor is a modern reproduction of the Classic '76 Revision D. The WA76 has a fully discrete signal path and uses the original Reichenbach Engineering's (now CineMag) transformer design. The classic '76 was a major breakthrough in limiter technology, and used on hundreds of hit records since its inception. Engineers have craved the ultra-fast attack time and trademark sound of the '76 for decades, and now it is finally affordable!
Technical Specifications
UTILIZES PREMIUM GRADE INPUT AND OUTPUT CINEMAG USA TRANSFORMERS.
TRUE TO THE CLASSIC '76 COMPRESSOR IN DESIGN AND PERFORMANCE.
COMPLETELY DISCRETE SIGNAL PATH.
MODELED AFTER THE D REVISION.
SUPPORTS THE FAMOUS "ALL BUTTONS IN" RATIO SETTING.
ULTRA FAST ATTACK TIME.
CLASS A LINE LEVEL OUTPUT AMPLIFIER.
INPUT IMPEDANCE - 600 OHMS, BRIDGES-T CONTROL (FLOATING).
FREQUENCY RESPONSE ± 1 DB 20 HZ TO 20KHZ.
XLR AND TRS INPUTS. XLR AND TRS OUTPUTS.
50DB OF GAIN.
LESS THAN 0.4% TOTAL HARMONIC DISTORTION FROM 50 HZ TO 20 KHZ WITH LIMITING.
SIGNAL TO NOISE RATIO IS GREATER THAN 74 DB AT +25 DBM.
EIN -104.1 DBM.
ATTACK TIME, 20 MICROSECONDS TO 800 MICROSECONDS.
RELEASE TIME, 50 MILLISECONDS TO 1 SECOND.
METER PROVIDES DB GAIN REDUCTION AND DB OUTPUT.
SWITCHABLE 115/230 VOLT IEC POWER INLET.
19″ RACKMOUNT CHASSIS, 2U.
Technical Specifications
UTILIZES PREMIUM GRADE INPUT AND OUTPUT CINEMAG USA TRANSFORMERS.
TRUE TO THE CLASSIC '76 COMPRESSOR IN DESIGN AND PERFORMANCE.
COMPLETELY DISCRETE SIGNAL PATH.
MODELED AFTER THE D REVISION.
SUPPORTS THE FAMOUS "ALL BUTTONS IN" RATIO SETTING.
ULTRA FAST ATTACK TIME.
CLASS A LINE LEVEL OUTPUT AMPLIFIER.
INPUT IMPEDANCE - 600 OHMS, BRIDGES-T CONTROL (FLOATING).
FREQUENCY RESPONSE ± 1 DB 20 HZ TO 20KHZ.
XLR AND TRS INPUTS. XLR AND TRS OUTPUTS.
50DB OF GAIN.
LESS THAN 0.4% TOTAL HARMONIC DISTORTION FROM 50 HZ TO 20 KHZ WITH LIMITING.
SIGNAL TO NOISE RATIO IS GREATER THAN 74 DB AT +25 DBM.
EIN -104.1 DBM.
ATTACK TIME, 20 MICROSECONDS TO 800 MICROSECONDS.
RELEASE TIME, 50 MILLISECONDS TO 1 SECOND.
METER PROVIDES DB GAIN REDUCTION AND DB OUTPUT.
SWITCHABLE 115/230 VOLT IEC POWER INLET.
19″ RACKMOUNT CHASSIS, 2U.
