EMU 1616m + 1212m + Cardbus / DSP zvučna kartica

Mastering zvučne kartice, rade i na Win7 i Win10 / Cubase 7.5 (dajem i posljednje drivere na CD-u)

Moze i odvojeno!

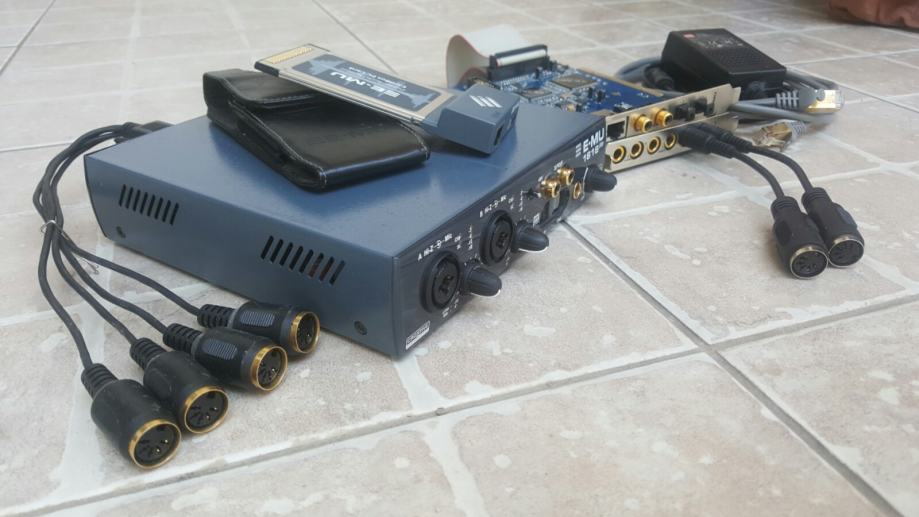

Dobijete:

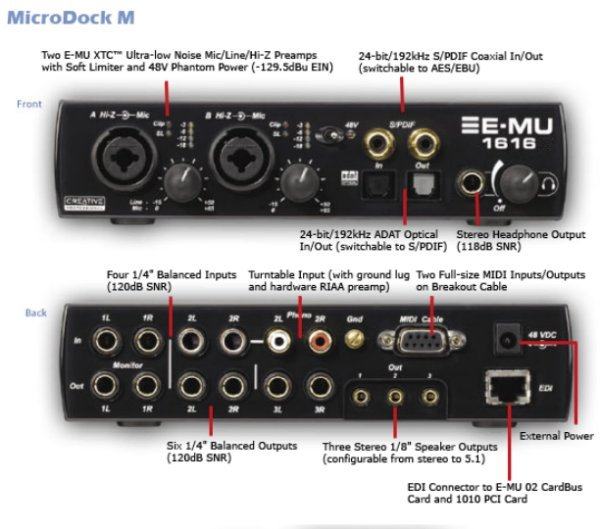

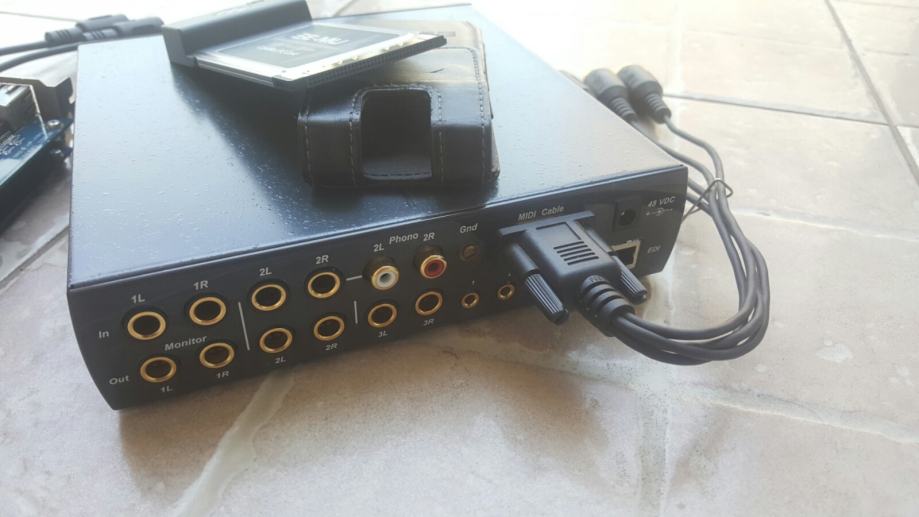

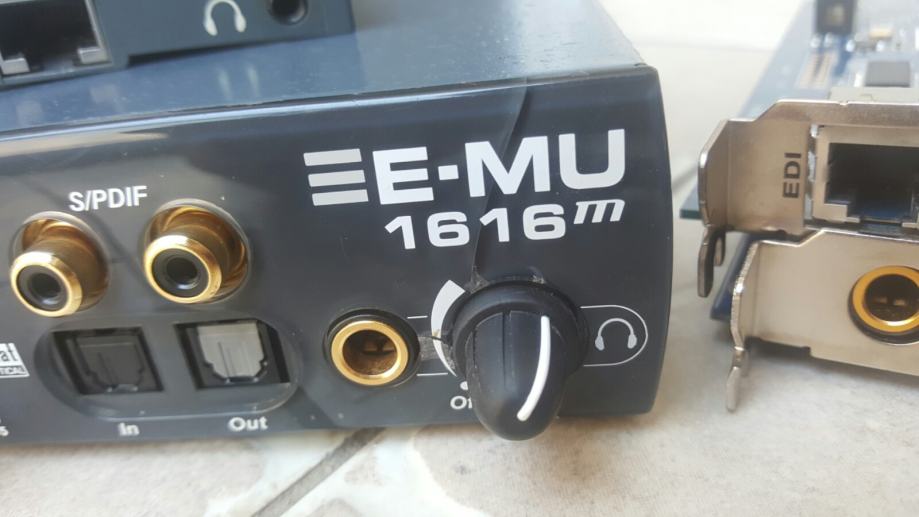

- E-MU 1616m MicroDock

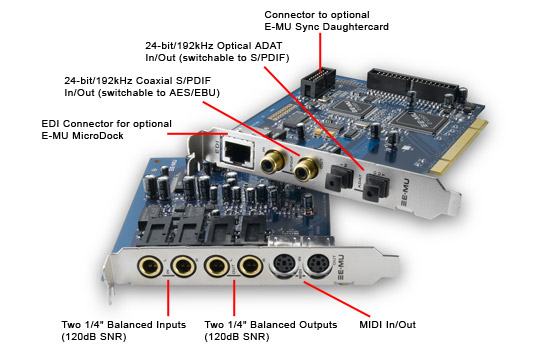

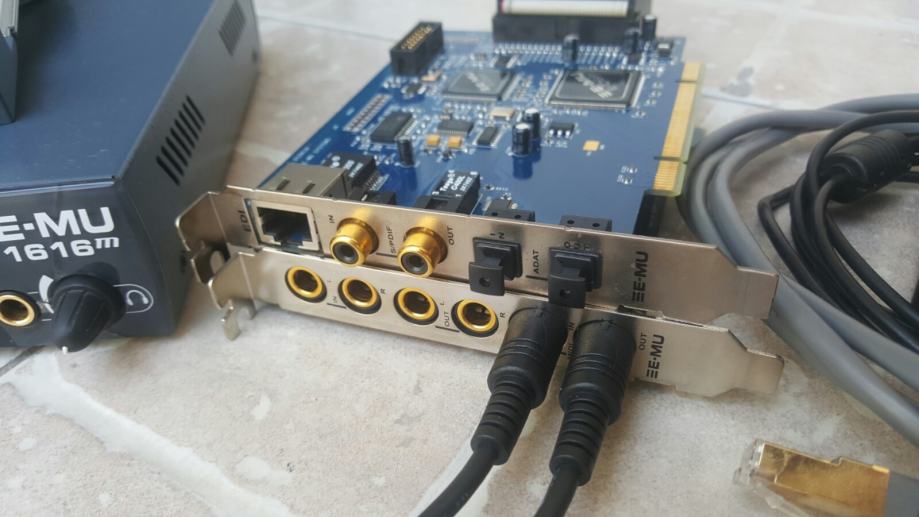

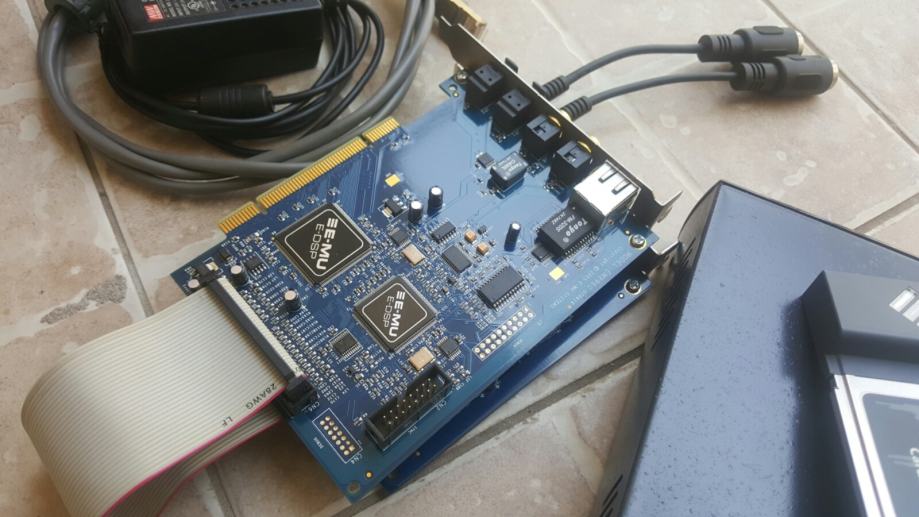

- E-MU 1212m PCI (1010 PCI)
- E-MU 0202 I/O daughter card

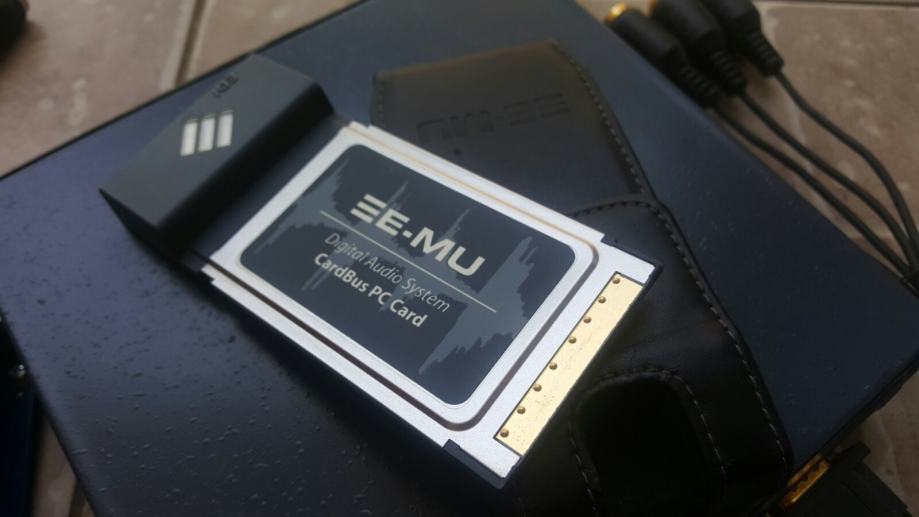

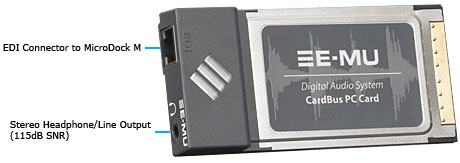

- E-MU CardBus PCMCIA
- EDI cable (1.5m)
- MIDI breakout cable
- Delock PCMCIA to PCI adapter

Mastering grade 24-bit - 192kHz converters, the same A/D converters used in Digidesign ProTools HD 192 I/O Interface delivering an amazing 120dB S/N ratio.

EMU 1616M features:

General Sample
• Rates: 44.1, 48, 88.2, 96, 176.4, 192kHz from internal crystal or externally supplied clock
(no sample rate conversion)
• Bit Depths: 24 bit I/O, 32 bit processing
• CardBus Card Specification:
- Form factor: PCMCIA Type II
- Bus-Mastering DMA subsystem reduces CPU usage

• E-MU® E-DSP™ 32-bit DSP with 67-bit accumulator (double precision w/ 3 headroom bits)
• Hardware-accelerated, 32 channel mixing, and multi-effects processing
• Zero-latency direct hardware monitoring w/effects
• ASIO 2.0, Stereo WDM/MME/DirectSound Drivers
• EDI (E-MU Digital Interface) proprietary 64 channel audio link over CAT-5 cable
• Anti-Pop speaker protection minimizes noise during power on/off
• -low jitter clock subsystem: < 1ns in PLL mode (44.1kHz, Opt. S/PDIF Sync)

Combo Microphone Preamplifier/Hi-Z/Line Inputs (2)
• Type: E-MU® XTC™ combo mic preamp and Hi-Z/line input w/ Soft Limiter
• Gain Range: +60dB
• Frequency Response (min gain, 20Hz-20kHz): +0.0/-0.1dB
• Stereo Crosstalk (1kHz min gain, -1dBFS): < -125dB
• Hi-Z Line Input:
- Input Impedance: 1Mohm
- Max Level: +18dBV (20.2dBu)
- Dynamic Range (A-weighted, 1kHz, min gain): 118dB
- Signal-to-Noise Ratio (A-weighted, min gain): 118dB
- THD+N (1kHz at -1dBFS, min gain): -105dB (.0006%)

• Microphone Preamplifier:
- Input Impedance: 1.5Kohms
- Max Level: +6dBV (+8.2dBu)
- EIN (20Hz-20kHz, 150ohm, unweighted): -129.5dBu
- Signal-to-Noise Ratio (A-weighted, min gain): 119dB
- THD+N (1kHz at -1dBFS, min gain): -110dB (.0003%)
- Phantom Power: 48V
- Soft Limiter: 5dB max compression (software selectable)

Analog Line Inputs (4)
• Type: servo-balanced, DC-coupled, low-noise input circuitry
• A/D converter: AK5394A
• Level (software selectable):
- Professional: +4dBu nominal, 20dBu max (balanced)
- Consumer: -10dBV nominal, 6dBV max (unbalanced)
• Frequency Response (20Hz-20kHz): +0.0/-.03dB
• Dynamic Range (1kHz, A-weighted): 120dB
• Signal-to-Noise Ratio (A-weighted): 120dB
• THD+N (1kHz at -1dBFS): -110dB (.0003%)
• Stereo Crosstalk (1kHz at -1dBFS): < -120dB

Analog Line Outputs (6)
• Type: balanced, AC-coupled, 2-pole low-pass differential filter
• D/A converter: CS4398
• Level (software selectable):
- Professional: +4dBu nominal, 20dBu max (balanced)
- Consumer: -10dBV nominal, 6dBV max (unbalanced)
• Frequency Response (20Hz - 20kHz): 0.0/-.06dB
• Dynamic Range (1kHz, A-weighted): 120dB
• Signal-to-Noise Ratio (A-weighted): 120dB
• THD+N (1kHz at -1dBFS): -105dB (.0006%)
• Stereo Crosstalk (1kHz at -1dBFS): < -115dB

Headphone Amplifier (2 Stereo: MicroDock M and Card)
• Type: linear power amplifier
• D/A converter: CS4398 (dock), AK4396 (card)
• Gain Range: 85dB
• Maximum Output Power: 50mW (dock), 20mW (card)
• Output impedance: 22ohms
• Frequency Response (20Hz-20kHz): +0.0/-0.07dB
• Dynamic Range (A-weighted): 118.5dB (dock), 115dB (card)
• Signal-to-Noise Ratio (A-weighted): 118dB (dock), 115dB (card)
• THD+N (1kHz, max gain): 600ohm load: -96dB (dock), -96dB (card)
• Stereo Crosstalk (1kHz at -1dBFS, 600 ohm load): < -100dB

Phono Input (stereo)
• Type: RIAA equalized phono input
Maximum level:
- Professional: 60mV RMS
- Consumer: 15mV RMS
• Input impedance: 47Kohm
• Frequency Response (20Hz - 20kHz): +0.1/-0.3dB
• Dynamic Range (A-weighted): 96dB
• Signal-to-Noise Ratio (15mV RMS unbal input, A-weighted): 96dB
• THD+N (1kHz, 15mV RMS input): -90dB (.003%)
• Stereo Crosstalk (1kHz at -1dBFS): < -80dB

Digital I/O S/PDIF:
- 2 in/2 out coaxial (transformer coupled)
- 2 in/2 out optical (software switched with ADAT)
- AES/EBU or S/PDIF format (software selectable)

• ADAT:
- 8 channels, 24-bit @ 44.1/48kHz
- 4 channels, 24-bit @ 88.2/96kHz (S-MUX compatible)
- 2 channels, 24-bit @ 176.4/192kHz

• MIDI
- 2 in, 2 out

Synchronization
• Internal crystal sync at 44.1, 48, 88.2, 96, 176.4, 192kHz
• External sample rate sync via
- ADAT (44.1 - 192kHz)
- Optical S/PDIF (44.1 - 96kHz)
- Coaxial S/PDIF (44.1 - 192kHz)
