Waterjet - STM 1530 PremiumCut 3D

STM 1530 PremiumCut 3D 12° angle compensation - 3000x1500x300 mm
BFT ECOTRON® 40.37 - 37 kW, 4000 bar
3200 radnih sati
Prvi vlasnik
Pušten u pogon 08/2018
4000 bar
12deg glava (otklanjanje podreza)
max 1500x3000x300
automatska regulacija tlaka
automatska regulacija pijeska
mogućnost nadogradnje tokirilce (unutar kade) i svrdla za probijanje
robusna konstrukcija (aluminij + nehrđajući čelik) i visoko kvalitetni dijelovi
mogućnost rezanja pod vodom

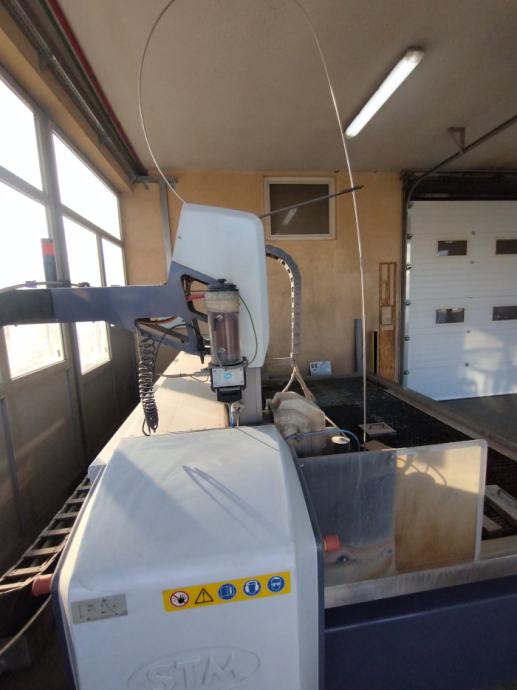

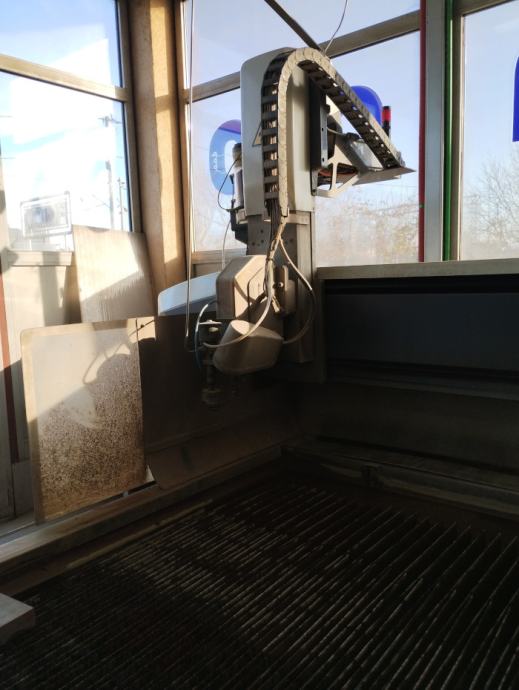

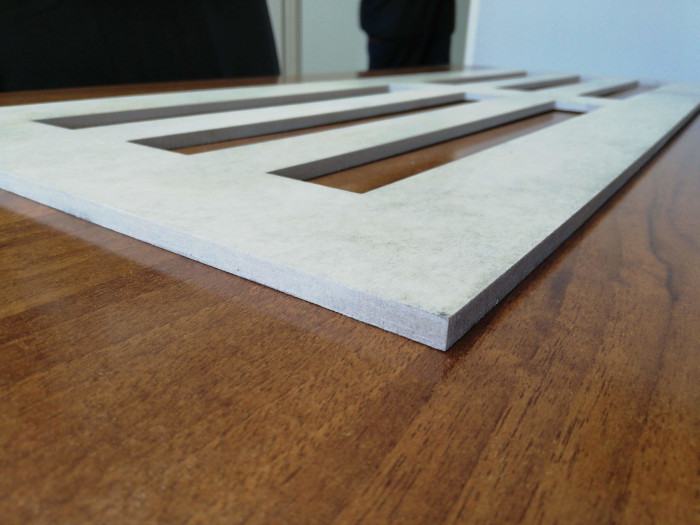

nagibna glava za otklanjanje podreza (kut rezanja do 12°)

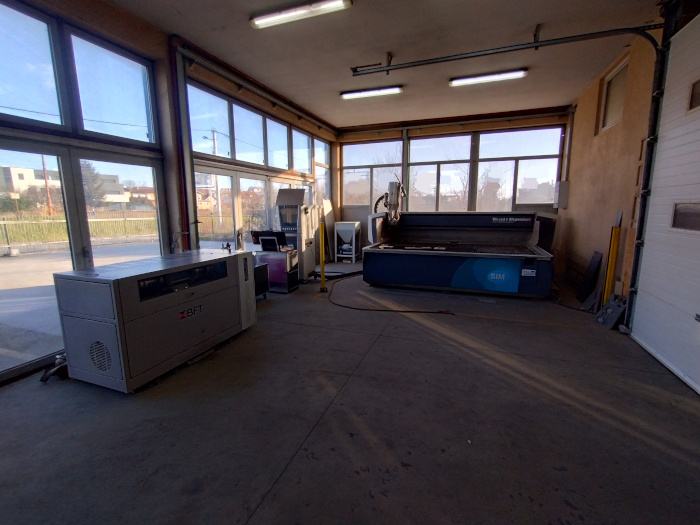

moguća prezentacija u našim prostorima (Zagreb)
Uključeno u cijenu: CNC stroj, visokotlačna pumpa, spremnik za abraziv, rezervni dijelovi, pijesak
U cijenu nije uključen PDV

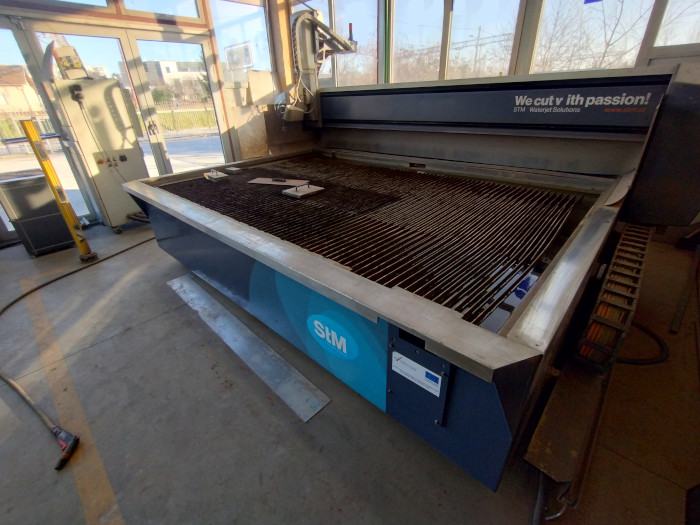

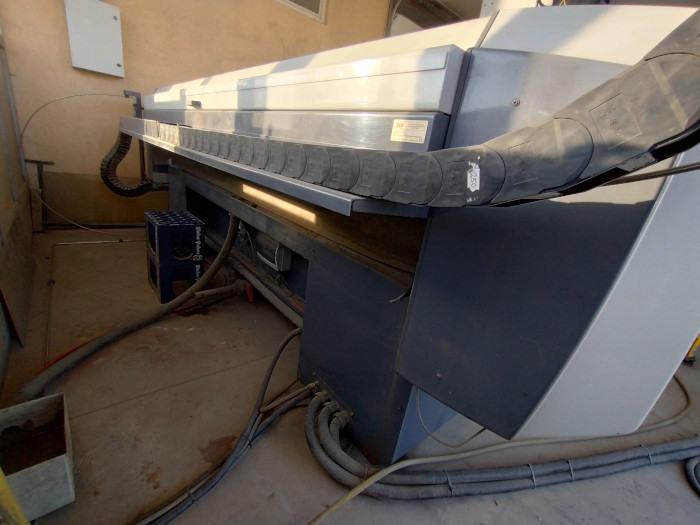

1. Waterjet cutting system STM 1530 PremiumCut 3D 12° angle compensation
Robust CNC milled absolutely rust-proof construction in aluminium and stainless steel

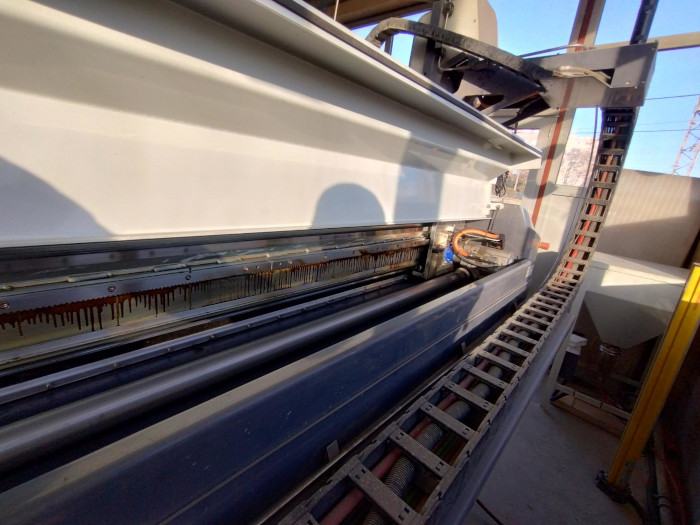

High-precision robust rack and pinion drive with helically toothed racks
Premium guide X & Y axis with Bosch Rexroth™ with high-precision ball-bearing carriage and stainless steel balls
Threefold dirt scraper package
Working area accessible from 3 sides for simplified loading and unloading
Underwater cutting is possible
CNC milled workpiece holder with heavy-duty frame for parts with weights of up to 1,000 kg/m²
The scope of supply contains the required lubricants and special tools for servicing and maintenance
1.1 CNC operating range
Lciujiqp8
X axis: ..... 1,502 mm
Y axis: ..... 3,002 mm (bridge)
Z axis clearance: ..... 300 mm
A axis: ..... 12 degrees
B axis: ..... +/- ∞
1.2 Precision and feed
Positioning precision: ..... ± 0.02 mm (per metre at 20°C)
Repeatable precision: ..... ± 0.01 mm (per metre at 20°C)
Max. feed: ..... 60 m/min
A axis feed: ..... 360 deg/s
B axis feed: ..... 360 deg/s
1.3 Dimensions & weight
Length: ..... approx. 3,750 mm (incl. high-pressure tubing)
Width: ..... approx. 4,700 mm
Height: ..... approx. 3,400 mm (incl. high-pressure tubing)
Weight: ..... 1,500 kg (without water)

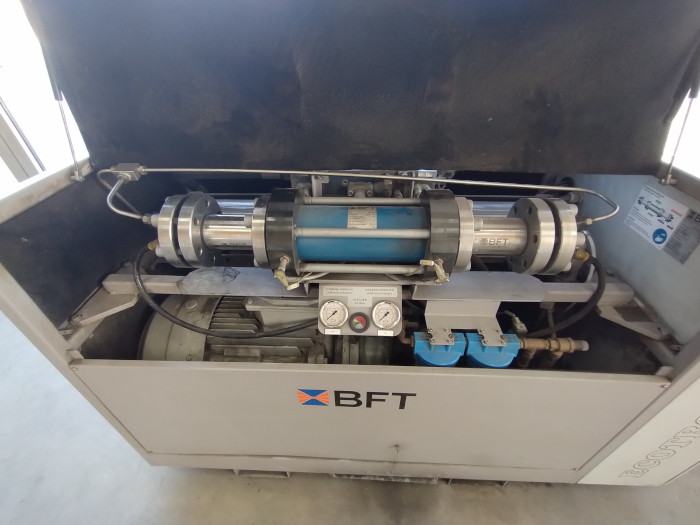

2. High pressure pump ECOTRON® 40.37
420 MPa max. design pressure
400 MPa max. permissible operating pressure
380 MPa max. continuous operating pressure
3.8 l/min max. flow rate
37 kW driving power
2.1 Technical details
Drive hydraulics with axial piston pump and hydraulic pressure/flow rate control
Gear pump for separate cooler/filter circuit
Pressure intensifier with drive cylinder and high pressure cylinder
2.49 litre pulsation damper according to Pressure Equipment Directive 97/23/EC
Connection for external emergency stop circuit
Electrical and electronic components fitted in control cabinet
Hydraulic and high pressure components mounted on a common base frame
Compact design, all tubing fitted, all pipework fitted and wired
2.2 Options Included
Automatic pressure adjustment from 50 - 400 MPa
Cooling via oil/water heat exchanger
Pressure relief valve with pneumatic control
Check valve on the feed water inlet
Double filter element for pre-filtration of the feed water
Sound insulation casing
Special tools for fitting the high pressure seals incl. torque wrench
Water stop check valve
