ThiEYE T5e WiFi 4K 30fps Sports Camera 16MP, EIS

Description:
Equipped with a powerful Ambarella A12LS75 processor and IMX117 sensor, Thieye HD WiFi action camera T5e can record the most advanced 4K 30fps ultra-HD video. Moreover, T5e supports electronic image stabilization and App for remote control, edit and sharing.

Main Features:
Ambarella A12 Processor and IMX117 Sensor
Ambarella A12LS75 chipset can reduce noise and blur even in the most challenging conditions. And the image sensor enhances imaging characteristics and light sensitivity.
4k 30fps Videos
Record 4k 30fps ultra-HD video and capture the action in more details.
Built-in 2.0 inch TFT LCD Screen
Larger than the previous generation for easily set up the camera, preview and play back videos and photos.
16MP Photos, Various Photo Modes
Single shooting, self-timer, photo burst, time Lapse photo.
Electronic Image Stabilization
Minimize blurring and compensate for device shake to provide clear and stable images.
170 Degree Super Wide-Angle View
Widen your perspective and cover more landscape.
Time-Lapse Videos
Form a changing scene by taking continuous photos at the interval of 1/2/5/10/30/60s
WiFi for Remote Control, Edit and Share
Connect your Android or iOS devices to action camera via Thieye HD, then you can set up the camera, and view, edit and share your works.
Wearable and Mountable
Compatible with all our mounts for attachment to the helmet, bike, backpack and drone, etc.
Built-in One Battery
One detachable high-capacity 1100mAh battery ensures lasting outstanding performance during the activities.

Video Resolution:
NTSC: 3840 x 2160 / 30fps, 3840 x 2160 / 25fps super view, 2880 x 2160 / 30fps, 2704 x 2028 / 30fps, 2704 x 1520 / 30fps super view, 2704 x 1520 / 30fps, 2560 x 1440 / 60 fps / 30fps, 1920 x 1440 / 60 fps / 30fps, 1920 x 1080/ 120 fps/ 100fps / 60 fps/ 30fps, 1920 x 1080 / 60fps / 30fps super view, 1280 x 960 / 120fps / 60fps / 30fps, 1280 x 720 / 240fps / 200fps / 120fps / 60fps / 30fps, 1280 x 720 / 120fps / 30fps super view
PAL: 3840 x 2160 / 25fps, 3840 x 2160 / 25fps super view, 2880 x 2160 / 25fps, 2704 x 2028 / 25fps, 2704 x 1520 / 25fps super view, 2704 x 1520 / 25fps, 2560 x 1440 / 50fps / 25fps, 1920 x 1440 / 50 fps / 25fps, 1920 x 1080 / 100fps / 50fps / 25fps, 1920 x 1080 / 50fps / 25fps super view, 1280 x 960 / 100fps / 50fps / 25fps, 1280 x 720 / 200fps / 100fps / 50fps / 25fps, 1280 x 720 / 100fps / 25fps super view
Image Resolutions:
16M ( 4608 x 3456 ), 14M ( 4254 x 3264 ), 12M ( 4000 x 3000 ), 8.3M ( 3264 x 2448 ), 5M ( 2560 x 1920 ), 3M ( 2048 x 1536 )

Please Note: please connect with the phones through WiFi. The Bluetooth function supports Bluetooth remote controller and Bluetooth selfie sticker, which are not included in the package.
Warm Prompt: the orders after Oct. 16th, 2017, will be shipped to new edition products, which include only one battery, and adds the additional skeleton backdoor.
Specification
General

Brand: ThiEYE
Model: T5e
Type: Sports Camera,Sports Camera
Type of Camera: 4K
Application: Extreme Sports,Ski,Underwater
Chipset: Ambarella A12LS75
Chipset Name: Ambarella
Features: Wireless
Sensor: CMOS
Sensor size (inch): 1/2.3
Storage

Max External Card Supported: SDHC 64G (not included)
Display

Screen: With Screen,With Screen
Screen resolution: 320x240,320x240
Screen size: 2.0inch,2.0inch
Screen type: TFT,TFT
Power

Battery Capacity (mAh): 1100mAh
Battery Type: Built-in,Built-in
Charge way: USB charge by PC,USB charge by PC
Charging Time: 2h
Power Supply: USB charge by PC
Standby time: 4h
Working Time: 80min at 4K / 30fps, 100min at 1080P
Primary Info.

Camera Pixel : 16MP
Wide Angle: 170 degree wide angle
Lens Diameter: 2.8mm
Video/Image/Audio

Audio System: Monophony,Monophony
Exposure Compensation: +2EV,-2EV
Image Format : JPEG,JPEG
Microphone: External
Video format: MP4,MP4
Video Frame Rate: 100fps,200fps,30FPS,60FPS
Video Resolution: 1080P (100fps),1080P(30fps),1080P(60fps),1440P (30fps),1440P (60fps),4K (30fps),720P(200fps),1080P (100fps),1080P(30fps),1080P(60fps),1440P (30fps),1440P (60fps),4K (30fps),720P(200fps)
White Balance Mode: Auto,Cloudy,Daylight,Incandescent,Auto,Cloudy,Daylight,Incandescent
Functions

Interface Type: HDMI,USB 2.0
Language: Arabic,Dutch,French,German,Indonesian,Italian,Japanese,Korean,Polski,Portuguese,Russian,Simplified Chinese,Spanish,Swedish,Traditional Chinese
Loop-cycle Recording : Yes
Loop-cycle Recording Time: 1min,2min,3min,5min
Night vision : No
Remote Control: Yes
Time lapse: Yes
Waterproof Rating : IP68 ( 60m, with waterproof case )
WIFI: Yes
WiFi Distance : 10m
WiFi Function: Image Transmission,Remote Control,Sync and Sharing Albums
Camera Timer: Yes
Auto Focusing: Yes
Anti-shake: Yes
Aerial Photography: Yes
Dimensions and Weight

Product weight: 0.0580 kg
Package weight: 0.4210 kg
Product size (L x W x H): 6.00 x 4.00 x 3.00 cm / 2.36 x 1.57 x 1.18 inches
Package size (L x W x H): 17.00 x 11.00 x 6.00 cm / 6.69 x 4.33 x 2.36 inches
Package Contents

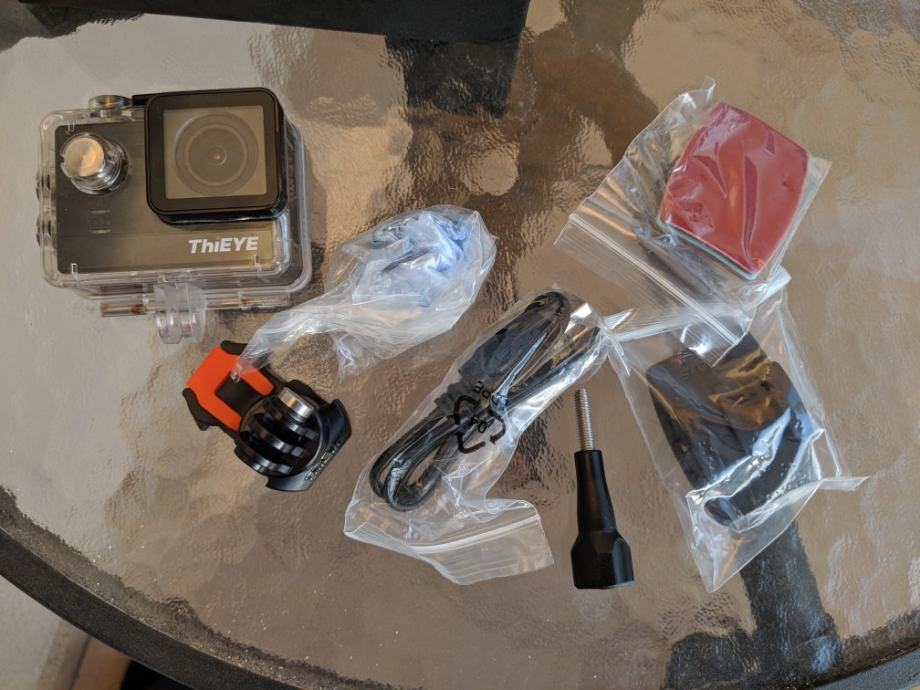

Package Contents: 1 x T5e Action Camera, 1 x Multi-language User Manual, 1 x Wiper, 1 x USB Cable, 1 x Pack of Accessories, 1 x Waterproof Case，1 x Additional Skeleton Backdoor
ThiEYE T5e WiFi 4K 30fps Action Camera 16MP Built-in 2 inch TFT LCD Screen Time-Lapse Videos Ambarella A12LS75 Chipset- Black
ThiEYE T5e WiFi 4K 30fps Action Camera 16MP Built-in 2 inch TFT LCD Screen Time-Lapse Videos Ambarella A12LS75 Chipset- Black
ThiEYE T5e WiFi 4K 30fps Action Camera 16MP Built-in 2 inch TFT LCD Screen Time-Lapse Videos Ambarella A12LS75 Chipset- Black
ThiEYE T5e WiFi 4K 30fps Action Camera 16MP Built-in 2 inch TFT LCD Screen Time-Lapse Videos Ambarella A12LS75 Chipset- Black
ThiEYE T5e WiFi 4K 30fps Action Camera 16MP Built-in 2 inch TFT LCD Screen Time-Lapse Videos Ambarella A12LS75 Chipset- BlackThiEYE T5e WiFi 4K 30fps Action Camera 16MP Built-in 2 inch TFT LCD Screen Time-Lapse Videos Ambarella A12LS75 Chipset- Black
ThiEYE T5e WiFi 4K 30fps Action Camera 16MP Built-in 2 inch TFT LCD Screen Time-Lapse Videos Ambarella A12LS75 Chipset- Black

IPXX Rating Chart

IP Code
The IP Code (or International Protection Rating, sometimes also interpreted as Ingress Protection Rating*) consists of the letters IP followed by two digits and an optional letter. As defined in international standard IEC 60529, it classifies the degrees of protection provided against the intrusion of solid objects (including body parts like hands and fingers), dust, accidental contact, and water in electrical enclosures. The standard aims to provide users more detailed information than vague marketing terms such as waterproof.

The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. For example, an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. IP22 or 2X are typical minimum requirements for the design of electrical accessories for indoor use
