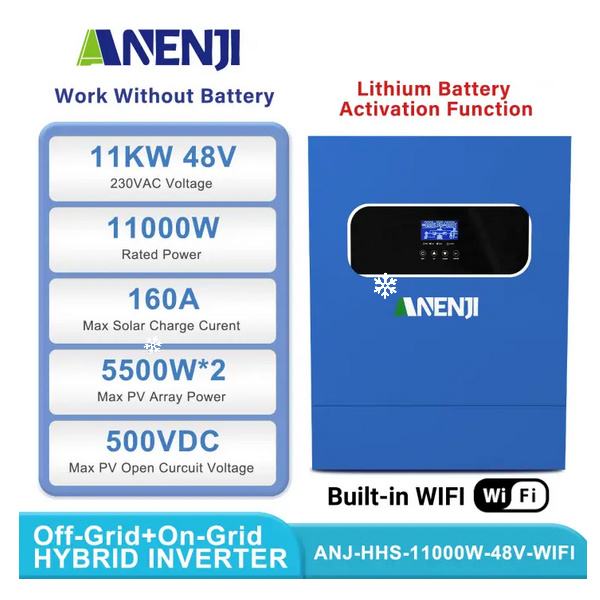

MODEL ANJ-HHS-11KW-48V-WIFI
Capacity 11KVA/11KW
Maximum py Input Power 11KW
Parallel Capability NO
Lithium Battery Activation YES ( By PV or Utility)
Lithium Battery Communication YES(RS485)
INPUT
Nominal Voltage 230VAC
Acceptable Voltage Range 170-280VAC(For personal Computer):90-280VAC(For Home Appliances)
Frequency 50/60 Hz (Auto sensing)
OUTPUT
Nominal Voltage 220/230/240VAC
Surge Power 22000VA
Frequency 50/60 Hz
Wavefomm Pure Sine wave
Transfer Time 10ms(For personal Computer):20ms(For Home Appliances)
Peak Efficiency 94%
Overload Protection 5s@>=140%load; 10s@110%~140% load
Admissible Power Factor 0.6-1 (inductive or capacitive)
Grid-tie Operation NO
BATTERY
Battery Voltage 48VDC
Maximum Discharge Curent 220A
Floating Charge Voltage 54VDC
OverCharge Protection 63VDC
Charging Methad CC/CV
SOLAR CHARGER & AC CHARGER
Solar Charger TYPE MPPT
Max.PV Array Power 5500W*2
Max, PV Array Open Circuit Voltage 500VDC
PV Array MPPT Voltage Range 60VDC~500VDC
Max, Solar input Current 27A*2
Max, Solar Charge Current 160A
Max. AC Charge Current 120A
Max, Charge Current 160A
PHYSICAL
Dimensions, D x w x H(mm) 540*415*122
Net Weight (Kgs) 15
Communication Interface RS485/DRY CONTACT
LCD YES
ENVIRONMENT
Operating Temperature Range -10°C to 50°C
Storage temperature -15°C~ 60°C
Humidity 5% to 95% Relative Humidity (Non-condensing)
Capacity 11KVA/11KW
Maximum py Input Power 11KW
Parallel Capability NO
Lithium Battery Activation YES ( By PV or Utility)
Lithium Battery Communication YES(RS485)
INPUT
Nominal Voltage 230VAC
Acceptable Voltage Range 170-280VAC(For personal Computer):90-280VAC(For Home Appliances)
Frequency 50/60 Hz (Auto sensing)
OUTPUT
Nominal Voltage 220/230/240VAC
Surge Power 22000VA
Frequency 50/60 Hz
Wavefomm Pure Sine wave
Transfer Time 10ms(For personal Computer):20ms(For Home Appliances)
Peak Efficiency 94%
Overload Protection 5s@>=140%load; 10s@110%~140% load
Admissible Power Factor 0.6-1 (inductive or capacitive)
Grid-tie Operation NO
BATTERY
Battery Voltage 48VDC
Maximum Discharge Curent 220A
Floating Charge Voltage 54VDC
OverCharge Protection 63VDC
Charging Methad CC/CV
SOLAR CHARGER & AC CHARGER
Solar Charger TYPE MPPT
Max.PV Array Power 5500W*2
Max, PV Array Open Circuit Voltage 500VDC
PV Array MPPT Voltage Range 60VDC~500VDC
Max, Solar input Current 27A*2
Max, Solar Charge Current 160A
Max. AC Charge Current 120A
Max, Charge Current 160A
PHYSICAL
Dimensions, D x w x H(mm) 540*415*122
Net Weight (Kgs) 15
Communication Interface RS485/DRY CONTACT
LCD YES
ENVIRONMENT
Operating Temperature Range -10°C to 50°C
Storage temperature -15°C~ 60°C
Humidity 5% to 95% Relative Humidity (Non-condensing)
