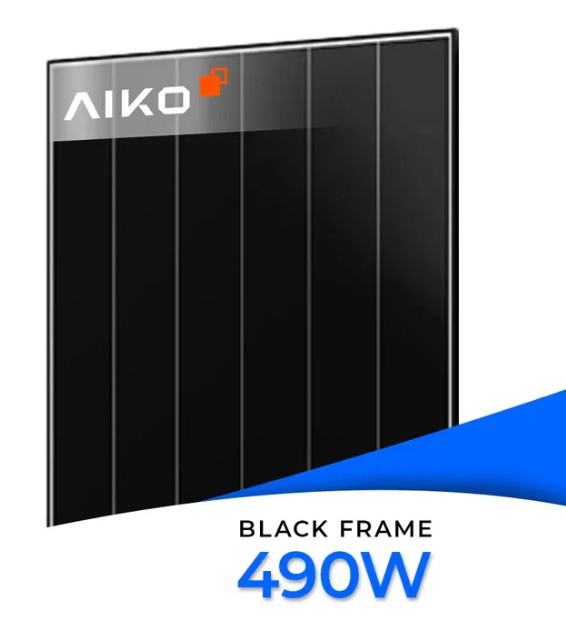

AIKO Solar 490W Black Frame Dual Glass A490-MCE54Dw 3P+54
- Cijena
- 95 €
Šifra oglasa: 49156083
Osnovne informacije
- Lokacija
- Grad Zagreb, Trešnjevka - Jug, Jarun
- Stanje
- novo
Opis oglasa
AIKO Solar 490W Black Frame Dual Glass A490-MCE54Dw 3P+54
jedni od najboljih solarnih panela u 2025 god
top kvaliteta efikasnost 24.5%
n-type ABC cell technology with a robust glass-glass construction.2x2mm glass
dimenzije Dxšxv 1762 mm x 1134 mm x 30 mm / 24.2 Kg po panelu
Dostupno 37 komada
cijena 95€/ komad...
komplet paleta 3500€
imam 1 paletu sa 37 komada
novo zapakirano nekorišteno!
Technical Specifications
Maximum Power (Pmax): 490 W
Module Efficiency: up to 24.8%
Power Tolerance: 0 – +3%
Cell Type: N-Type ABC
Number of Cells: 108 (6 × 18)
Dimensions: 1762 × 1134 × 30 mm
Weight: 24.2 kg ± 3%
Frame: Black anodized aluminum
Front/Rear: Double-glazed, semi-tempered glass, 2.0 + 2.0 mm
Connectors: Original MC4
Terminal Box: IP68, 3 bypass diodes
Maximum System Voltage: DC 1500 V
Maximum Fuse Rating: 30 A
Operating Temperature: –40 °C to +85 °C
Temperature Coefficients:
Isc +0.05%/°C
Voc –0.22%/°C
Pmax –0.26 %/°C
Fire protection classification: IEC Class A
Protection class: Class II
Performance data (STC)
Pmax: 490 W
Voc: 41.10 V
Vmp: 34.70 V
Isc: 14.88 A
Imp: 14.13 A
Degradation in the first year: ≤ 1%
Annual degradation from year 2: ≤ 0.35%
jedni od najboljih solarnih panela u 2025 god
top kvaliteta efikasnost 24.5%
n-type ABC cell technology with a robust glass-glass construction.2x2mm glass
dimenzije Dxšxv 1762 mm x 1134 mm x 30 mm / 24.2 Kg po panelu
Dostupno 37 komada
cijena 95€/ komad...
komplet paleta 3500€
imam 1 paletu sa 37 komada
novo zapakirano nekorišteno!
Technical Specifications
Maximum Power (Pmax): 490 W
Module Efficiency: up to 24.8%
Power Tolerance: 0 – +3%
Cell Type: N-Type ABC
Number of Cells: 108 (6 × 18)
Dimensions: 1762 × 1134 × 30 mm
Weight: 24.2 kg ± 3%
Frame: Black anodized aluminum
Front/Rear: Double-glazed, semi-tempered glass, 2.0 + 2.0 mm
Connectors: Original MC4
Terminal Box: IP68, 3 bypass diodes
Maximum System Voltage: DC 1500 V
Maximum Fuse Rating: 30 A
Operating Temperature: –40 °C to +85 °C
Temperature Coefficients:
Isc +0.05%/°C
Voc –0.22%/°C
Pmax –0.26 %/°C
Fire protection classification: IEC Class A
Protection class: Class II
Performance data (STC)
Pmax: 490 W
Voc: 41.10 V
Vmp: 34.70 V
Isc: 14.88 A
Imp: 14.13 A
Degradation in the first year: ≤ 1%
Annual degradation from year 2: ≤ 0.35%
