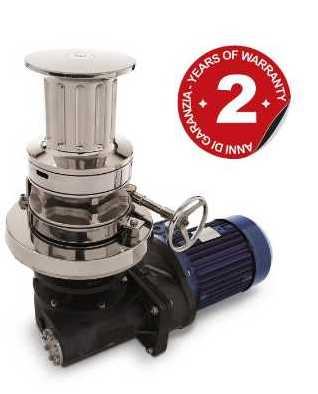

Vitlo sidreno - Winch SUN Italwinch

LUCKY WAVE specializes in nautical equipment, yacht and mega yacht service. Sales and representation of nautical equipment, dry marina services and winter maintenance, year-round maintenance with a contract. Complete care of your ships. Sales of all marine devices (gangways, cranes, air conditioners, refrigerators, generators, chargers, winches, bow thrusters…) with technical advice, secured installation for all equipment purchased from us. As representatives of many companies, we are customer-oriented in providing top quality and service.
We offer a complete program for boats and yachts.
Contact us with confidence.

https://www.lucky-wave.eu/shop
https://lucky-wave.eu/zastupstva/

ELECTRIC MOTOR 3500W 4000W 5500W 7500W Hydraulic
MOTOR SUPPLY VOLTAGE 24V 230V/400V 230V/400V 230V/400V N/A
MAXIMUM PULL 4600 Kg 4800Kg 5200 Kg 5400 Kg 1700 Kg
LIFT WORKING LOAD 1500 Kg 1600 Kg 1700 Kg 1800 Kg 1700 Kg
LOINE SPEED 12mt/min 12mt/min 12mt/min 12mt/min 12mt/min
CURRENT ABSORBTION 220 A N/A N/A N/A N/A
WEIGHT 95 Kg--> 190 Kg 95 Kg--> 190 Kg 95 Kg--> 190 Kg 95 Kg--> 190 Kg
CHAIN 12mm ISO/13mm DIN766 - 14mm ISO - 16mm ISO - 16mm DIN766 - 16mm with stud link - 17,5mm with stud link - 18mm- 20 mm

Safety standards and certifying bodiesrequire peremptorily that, during thestanding ofthe anchor, the load must beheld by a chain stopper or a highresistance fixing point.The user is responsible for guaranteeingthat during navigation the anchor isproperly stowed and fixed. Thisprecaution is moreimportant when thenavigation speed ishigher and seaconditions are worse. Indeed, an anchorpaid out by mistake during navigationcan have very serious effects.Considering its position and not alwaysfrequent use, the anchor windlass isparticularly exposed to oxidationandcorrosion risk; therefore, it is necessaryto arrange a constant inspection of itsparts and a due maintenance.Make sure to have read and understoodevery part of this manualbeforeproceeding with installation and use.Only persons who know how tooperateshould be authorised to use the anchorwindlass. Should there be doubts on itsinstallation or use, refer always to askilled consultant.•Anchor windlasses used in aninappropriate way can causedamagesto persons and/or things.• Pay the utmost attention during theuse of powerful equipment.• Even the most careful use can be asource of damages, even serious.• Italwinchproducts are suppliedexclusively for recreationalnauticaluse. Italwinchdeclines allresponsibilityfor improper uses.• Pay the utmost attention so that arms,legs, fingers, hair, and clothes do notget entangled in the chain or gipsy.• Before operating the capstans, makesure that there are no persons in waterin the vicinity.

INFO & PRICE ON REQUEST
