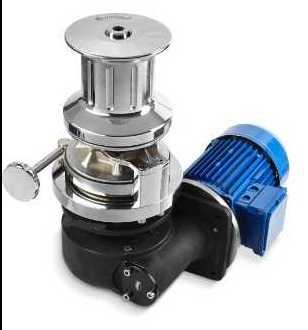

Winch STAR PLUS Italwinch

LUCKY WAVE specializes in nautical equipment, yacht and mega yacht service. Sales and representation of nautical equipment, dry marina services and winter maintenance, year-round maintenance with a contract. Complete care of your ships. Sales of all marine devices (gangways, cranes, air conditioners, refrigerators, generators, chargers, winches, bow thrusters…) with technical advice, secured installation for all equipment purchased from us. As representatives of many companies, we are customer-oriented in providing top quality and service.
We offer a complete program for boats and yachts.
Contact us with confidence.

https://www.lucky-wave.eu/shop
https://lucky-wave.eu/zastupstva/

ELECTRIC MOTOR 2300W 2700W 3500W 2200W 3600W Hydraulic
MOTOR SUPPLY VOLTAGE 24V 24V 24V 230V/400V 230V/400V N/A
MAXIMUM PULL 2200 Kg 2500 Kg 2500 Kg 2350 Kg 2600 Kg 824 Kg
LIFT WORKING LOAD 500 Kg 600 Kg 810 Kg 525 Kg 824 Kg 824 Kg
LINE SPEED 12 mt/min 12 mt/min 15 mt/min 12 mt/min 12 mt/min 12 mt/min
CURRENT ABSORBTION 120 A 150 A 195 A N/A N/A N/A
WEIGHT (WITH DRUM) 50 -->80 Kg 50 -->80 Kg 50 -->80 Kg 50 -->80 Kg 50 -->80 Kg 50 -->80 Kg
WEIGHT (WITHOUT DRUM) 60 -->90 Kg 60 -->90 Kg 60 -->90 Kg 60 -->90 Kg 60 -->90 Kg 60 -->90 Kg
CHAIN 10mm ISO - 10 mm DIN766 - 12 mm ISO/13 mm DIN766 - 14mm ISO - 1/2 HT -- 12,5mm Stud link - 14mm stud link

Safety standards and certifying bodiesrequire peremptorily that, during thestanding of the anchor, the load must beheldby a chain stopper or a highresistance fixing point.The user is responsible for guaranteeingthat during navigation the anchor isproperly stowed and fixed. Thisprecaution is moreimportant when thenavigation speed is higher and seaconditions are worse. Indeed, an anchorpaid out by mistake during navigationcan have very serious effects.Considering its position and not alwaysfrequent use, the anchor windlass isparticularly exposed to oxidationandcorrosion risk; therefore, it is necessaryto arrange a constant inspection of itsparts and a due maintenance.

INFO & PRICE ON REQUEST
