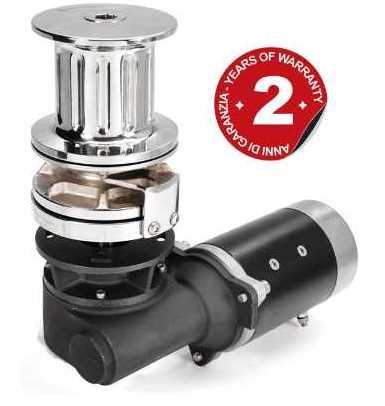

Vitlo sidreno - Winch STAR Italwinch

LUCKY WAVE specializes in nautical equipment, yacht and mega yacht service. Sales and representation of nautical equipment, dry marina services and winter maintenance, year-round maintenance with a contract. Complete care of your ships. Sales of all marine devices (gangways, cranes, air conditioners, refrigerators, generators, chargers, winches, bow thrusters…) with technical advice, secured installation for all equipment purchased from us. As representatives of many companies, we are customer-oriented in providing top quality and service.
We offer a complete program for boats and yachts.
Contact us with confidence.

https://www.lucky-wave.eu/shop
https://lucky-wave.eu/zastupstva/

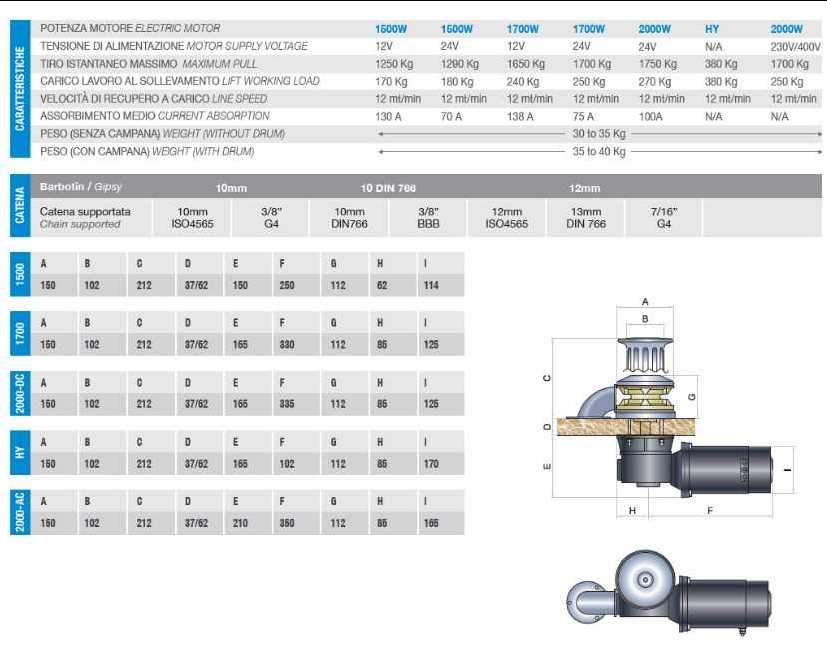

ELECTRIC MOTOR 1500W 1500W 1700W 1700W 2000W 2000W Hydraulic
MOTOR SUPPLY VOLTAGE 12V 24V 12V 24V 24V 230V/400V N/A
MAXIMUM PULL 1250 Kg 1290 Kg 1650 Kg 1700 Kg 1700 Kg 1700 Kg 380 Kg
LIFT WORKING LOAD 170 Kg 180 Kg 240 Kg 250 Kg 270 Kg 250 Kg 380 Kg
LINE SPEED 12 mt/min 12 mt/min 12 mt/min 12 mt/min 12 mt/min 12 mt/min 12 mt/min
CURRENT ABSORBTION 130 A 70 A 138 A 75 A 100 A N/A N/A
WEIGHT (WITH DRUM) 35 Kg a 40 Kg
WEIGHT (NO DRUM) 30 Kg a 35 Kg
CHAINS 8mm ISO - 10mm ISO - 10mm DIN766 - 5/16 - 12mm ISO - 13mm DIN766

Safety standards and certifying bodiesrequire peremptorily that, during thestanding of the anchor, the load must beheldby a chain stopper or a highresistance fixing point.The user is responsible for guaranteeingthat during navigation the anchor isproperly stowed and fixed. Thisprecaution is moreimportant when thenavigation speed is higher and seaconditions are worse. Indeed, an anchorpaid out by mistake during navigationcan have very serious effects.Considering its position and not alwaysfrequent use, the anchor windlass isparticularly exposed to oxidationandcorrosion risk; therefore, it is necessaryto arrange a constant inspection of itsparts and a due maintenance.

INFO & PRICE ON REQUEST
