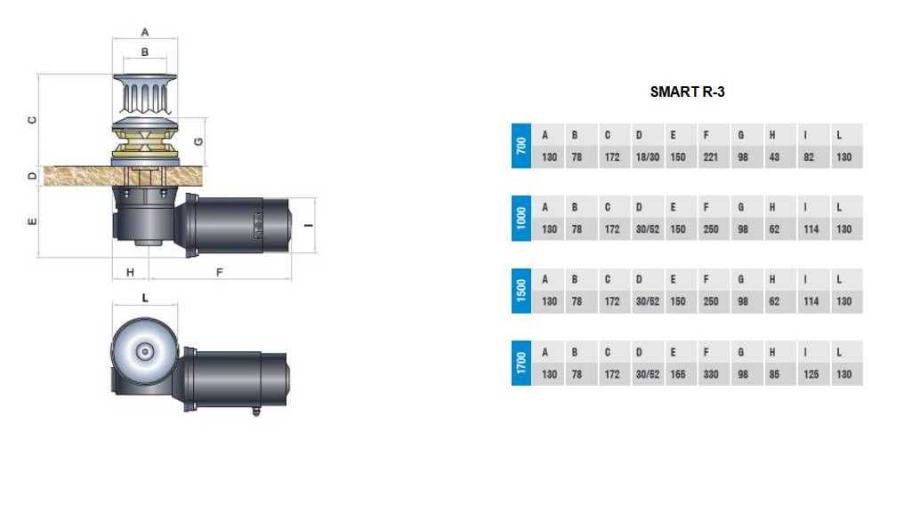

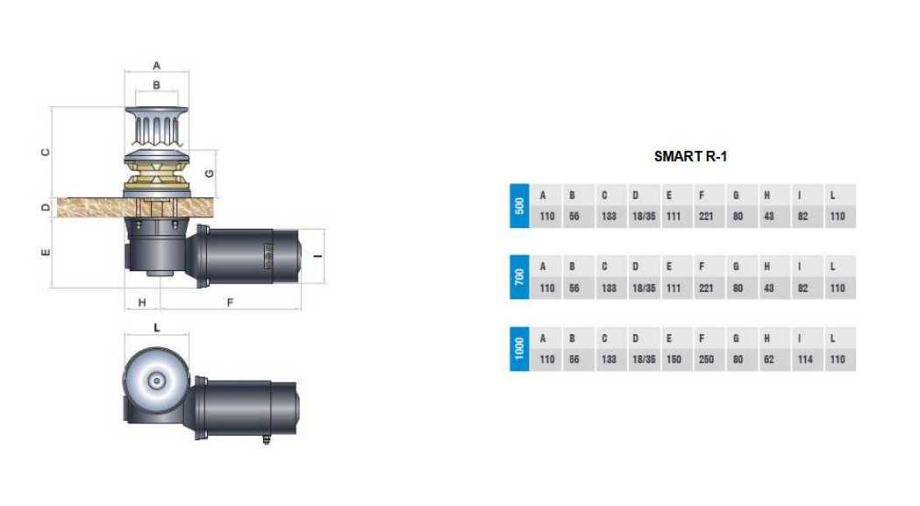

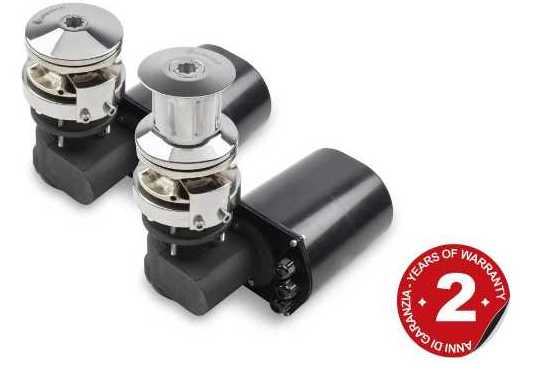

Winch SMART R1-R3 Italwinch

LUCKY WAVE specializes in nautical equipment, yacht and mega yacht service. Sales and representation of nautical equipment, dry marina services and winter maintenance, year-round maintenance with a contract. Complete care of your ships. Sales of all marine devices (gangways, cranes, air conditioners, refrigerators, generators, chargers, winches, bow thrusters…) with technical advice, secured installation for all equipment purchased from us. As representatives of many companies, we are customer-oriented in providing top quality and service.
We offer a complete program for boats and yachts.
Contact us with confidence.

https://www.lucky-wave.eu/shop
https://lucky-wave.eu/zastupstva/

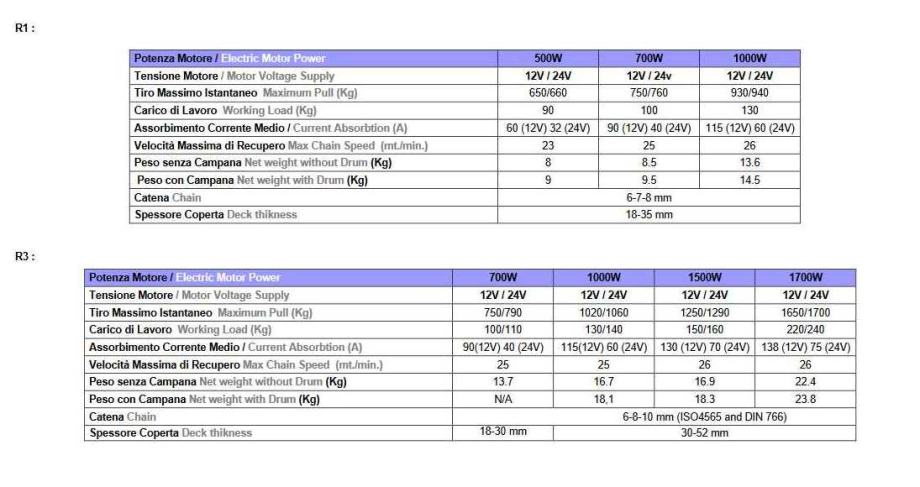

ELECTRIC MOTOR 500W 500W 700W 1000W 1000W
MOTOR SUPPLY VOLTAGE 12V 24V 12V 12V 24V
MAXIMUM LIFT LOAD 270 Kg 270 Kg 300 Kg 390 Kg 420 Kg
LIFT WORKING LOAD 90 Kg 90 Kg 100 Kg 130 Kg 140 Kg
LINE SPEED 23 mt/min 23 mt/min 25 mt/min 25 mt/min 25 mt/min
CURRENT ABSORBTION 60 A 32 A 90 A 115 A 60 A
WEIGHT (WITH DRUM) 9,5 Kg 9,5 Kg 9,5 Kg 12,5 Kg 12,5 Kg
WEIGHT (WITHOUT DRUM) 10,1 Kg 10,1 Kg 10,1 Kg 13,1 Kg 13,1 Kg
CHAIN 6mm - 7mm (1/4

ELECTRIC MOTOR 700W 1000W 1000W 1500W 1500W 1700W 1700W
MOTOR SUPPLY VOLTAGE 12V 12V 24V 12V 24V 12V 24V
MAXIMUM PULL 750 Kg 390 Kg 1060 Kg 1250 Kg 1290Kg 1650 Kg 1700 Kg
LIFT WORKING LOAD 100 Kg 130 Kg 140 Kg 150 Kg 160 Kg 220 Kg 240 Kg
LINE SPEED 1000W 1000W 25 mt/min 26 mt/min 26 mt/min 26 mt/min 26 mt/min
CURRENT ABSORBTION 90 A 115 A 60 A 130 A 70 A 138 A 75 A
WEIGHT (WITH DRUM) 13,7 Kg 16,7 Kg 16,7 Kg 16,9 Kg 16,9 Kg 22,4 Kg 22,4 Kg
WEIGHT (WITHOUT DRUM) N/A 18,1 Kg 18,1 Kg 16,9 Kg 16,9 Kg 23,8 Kg 23,8 Kg
CHAIN 6mm ISO - 8mm ISO - 10mm ISO - 10mm DIN766 - 5/16

Safety standards and certifying bodiesrequire peremptorily that, during thestanding of the anchor, the load must beheldby a chain stopper or a highresistance fixing point.The user is responsible for guaranteeingthat during navigation the anchor isproperly stowed and fixed. Thisprecaution is moreimportant when thenavigation speed is higher and seaconditions are worse. Indeed, an anchorpaid out by mistake during navigationcan have very serious effects.Considering its position and not alwaysfrequent use, the anchor windlass isparticularly exposed to oxidationandcorrosion risk; therefore, it is necessaryto arrange a constant inspection of itsparts and a due maintenance.

INFO & PRICE ON REQUEST
