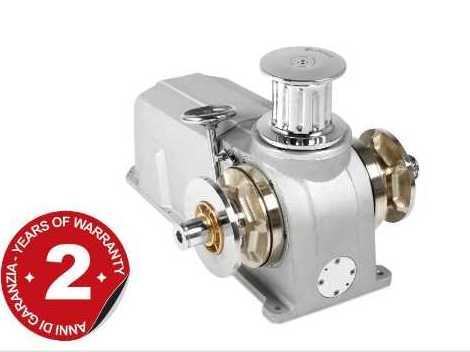

Horizontal axis winch white painted model. The RAJA can use chains from 10 mm to 14 mm in diameter. With different drives and recommended for boats up to 26m.
Safety standards and certifying bodiesrequire peremptorily that, during thestanding of the anchor, the load mustbeheld by a chain stopper or a highresistance fixing point.The user is responsible for guaranteeingthat during navigation the anchor isproperly stowed and fixed. Thisprecaution is moreimportant when thenavigation speed is higher and seaconditionsare worse. Indeed, an anchorpaid out by mistake during navigationcan have very serious effects.Considering its position and not alwaysfrequent use, the anchor windlass isparticularly exposed to oxidationandcorrosion risk; therefore, it is necessaryto arrange a constant inspection of itsparts and a due maintenance.Make sure to have read and understoodevery part of this manualbeforeproceeding with installation and use.Only persons who know how tooperateshould be authorised to use the anchorwindlass. Should there be doubts on itsinstallation or use, refer always to askilledconsultant

ELECTRIC MOTOR 2000W 2000W 2300W 2700W 2200W Hydraulic
MOTOR SUPPLY VOLTAGE 12V 24V 24V 24V 230V/400V N/A
MAXIMUM PULL 1800 Kg 1900 Kg 2800 Kg 3000 Kg 3200 Kg 700 Kg
LIFT WORKING LOAD 370 Kg 390 Kg 520 Kg 590 Kg 700 Kg 700 Kg
LINE SPEED 12 mt/min 12 mt/min 12 mt/min 12 mt/min 12 mt/min 12 mt/min
CURRENT ABSORBTION 135 A 70 A 190 A 200 A N/A N/A
WEIGHT (WITH DRUM) N/A N/A N/A N/A N/A N/A
WEIGHT (WITHOUT DRUM) 55 Kg–> 70 Kg 55 Kg–> 70 Kg 55 Kg–> 70 Kg 55 Kg–> 70 Kg 55 Kg–> 70 Kg 55 Kg–> 70 Kg
CHAIN 10mm ISO – 10mm DIN766 – 12mm ISO/ 13mm DIN766 – 14mm ISO – 16mm ISO – 16mm DIN766 – 1/2


PRICE ON REQUEST
