Winch MILOS – MILOS PLUS – MILOS TALL Italwinch

LUCKY WAVE specializes in nautical equipment, yacht and mega yacht service. Sales and representation of nautical equipment, dry marina services and winter maintenance, year-round maintenance with a contract. Complete care of your ships. Sales of all marine devices (gangways, cranes, air conditioners, refrigerators, generators, chargers, winches, bow thrusters…) with technical advice, secured installation for all equipment purchased from us. As representatives of many companies, we are customer-oriented in providing top quality and service.
We offer a complete program for boats and yachts.
Contact us with confidence.

https://www.lucky-wave.eu/shop
https://lucky-wave.eu/zastupstva/

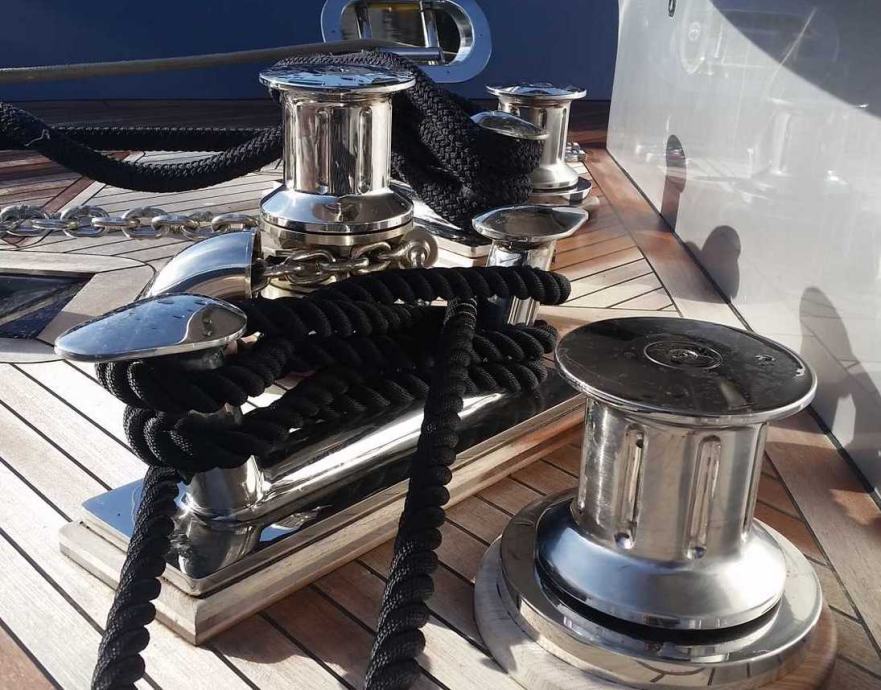

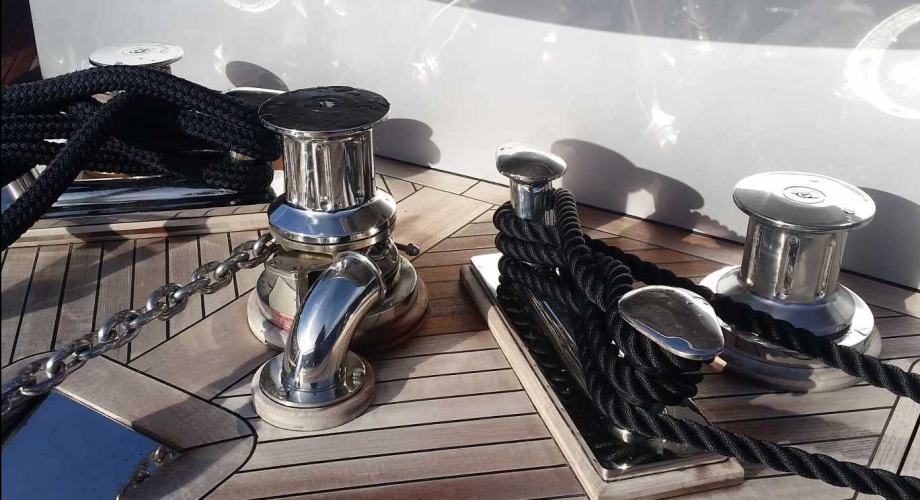

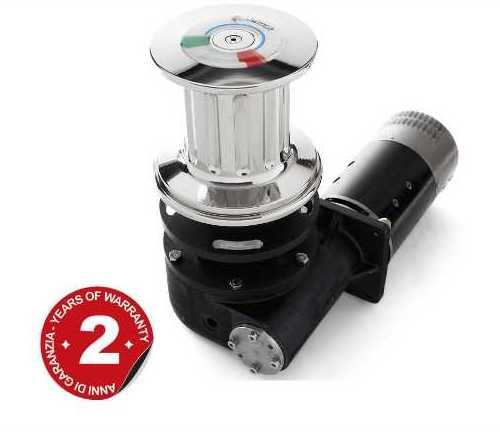

Stainless steel AISI 316 capstan winch, with different drives and recommended for boats up to 40 m (Milos Plus). Possibility of 230V, 400V or hydraulic drive.


M I L O S
ELECTRIC MOTOR 3500W 3000W 4000W Hydraulic
MOTOR SUPPLY VOLTAGE 24V 230V/400V 230V/400V N/A
MAXIMUM PULL 2000 Kg 4000 Kg 4500 Kg 1900 Kg
LIFT WORKING LOAD 900 Kg 1100 Kg 1300 Kg 1900 Kg
LINE SPEED 12 mt/min 12 mt/min 12 mt/min 12 mt/min
CURRENT ABSORPTION 195 A N/A 220 A N/A
WEIGHT (WITHOUT DRUM) 55 Kg--> 70 Kg 55 Kg--> 70 Kg 55 Kg--> 70 Kg 55 Kg--> 70 Kg 55 Kg--> 70 Kg


M I L O S - P L U S
ELECTRIC MOTOR 3500W 4000W 5500W Hydraulic
MOTOR SUPPLY VOLTAGE 24V 230V/400V 230V/400V N/A
MAXIMUM PULL 4600 Kg 4700 Kg 5000 Kg 1700 Kg
LIFT WORKING LOAD 1500 Kg 1600 Kg 1700 Kg 1700 Kg
LINE SPEED 12 mt/min 12 mt/min 12 mt/min 12 mt/min
CURRENT ABSORPTION 195 A N/A N/A N/A
WEIGHT (WITHOUT DRUM) 75 Kg--> 95 Kg 75 Kg--> 95 Kg 75 Kg--> 95 Kg 75 Kg--> 95 Kg


M I L O S - T A L L
ELECTRIC MOTOR 3500W 4000W 5500W 7500W Hydraulic
MOTOR SUPPLY VOLTAGE 24V 230V/400V 230V/400V 230V/400V N/A
MAXIMUM PULL 4600 Kg 4700 Kg 5000 Kg 5200 Kg 1900 Kg
LIFT WORKING LOAD 1500 Kg 1600 Kg 1700 Kg 1800 Kg 1900 Kg
LINE SPEED 12 mt/min 12 mt/min 12 mt/min 12 mt/min 12 mt/min
CURRENT ABSORPTION 195 A N/A N/A N/A N/A
WEIGHT (WITHOUT DRUM) 75 Kg--> 95 Kg 75 Kg--> 95 Kg 75 Kg--> 95 Kg 75 Kg--> 95 Kg 75 Kg--> 95 Kg

INFO & PRICE ON REQUEST
