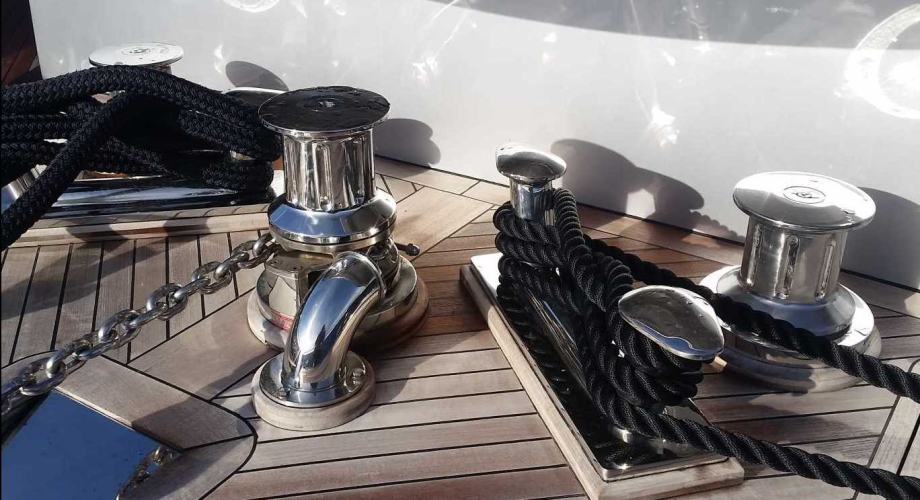

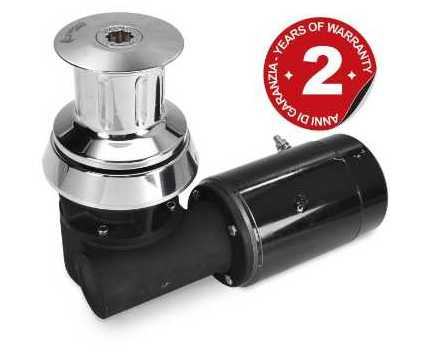

Anodized aluminium alloy capstan winch with different groove to wind greater amounts of rope. With different drives and recommended for boats up to 18 m.

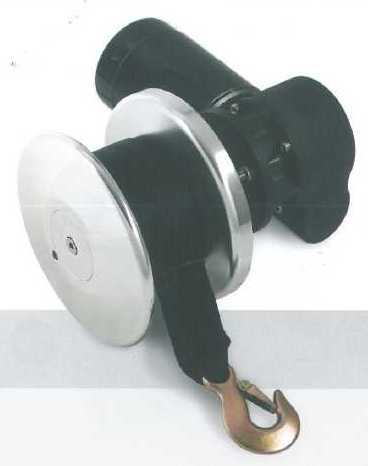

Capstan winch for recovering the tender boat with anodized aluminium drum already set for belt and snap-hook fastening. Not supplied as standard with the product.

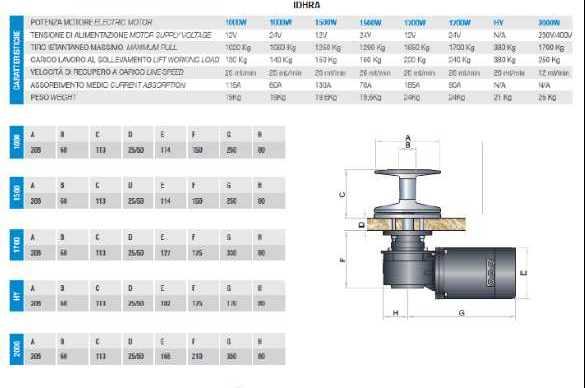

ELECTRIC MOTOR 1000W 1000W 1500W 1500W 1700W 1700W hydraulic
MOTOR SUPPLY VOLTAGE 12V 24V 12V 24V 12V 24V N/A
MAXIMUM PULL 1020 Kg 1060 Kg 1250 Kg 1290 Kg 1650 Kg 1700 Kg 380 Kg
LIFT WORKING LOAD 130 Kg 140 Kg 150 Kg 160 Kg 220 Kg 240 Kg 380 Kg
LINE SPEED 25 mt/min 25 mt/min 26 mt/min 26 mt/min 26 mt/min 26 mt/min 26 mt/min
CURRENT ABSORPTION 115 A 60 A 130 A 70 A 185A 90A N/A
WEIGHT (WITH DRUM) N/A N/A N/A N/A N/A N/A N/A
WEIGHT (WITHOUT DRUM) 19 Kg 19 Kg 19,6 Kg 19,6 Kg 24 Kg 24 Kg 21 Kg

INFO & PRICE ON REQUEST
