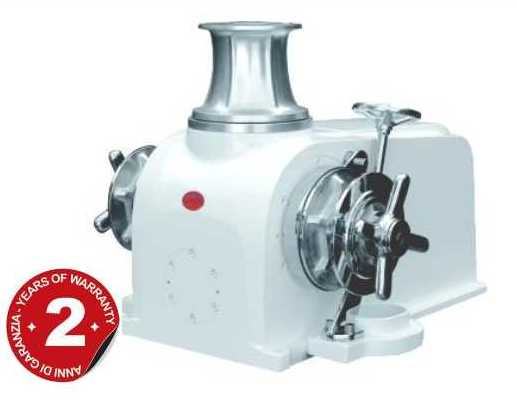

White painted horizontal axis winch. The ESK can use chains from 12 mm to 16 mm in diameter. With different drives and recommended for boats up to 32 m.

White painted horizontal axis winch. The ACHERON can use chains from 14 mm to 17,5 mm with stud link in diameter. With different drives and recommended for boats up to 37 m.


ESK
ELECTRIC MOTOR 2300W 2700W 3500W 3000W Hydraulic
MOTOR SUPPLY VOLTAGE 24V 24V 24V 230V/400V N/A
MAXIMUM PULL 3300 Kg 3500 Kg 3900 Kg 3900 Kg 1300 Kg
LIFT WORKING LOAD 1000 Kg 1100 Kg 1200 Kg 1300 Kg 1300 Kg
LINE SPEED 13 mt/min 13 mt/min 13 mt/min 13 mt/min 13 mt/min
CURRENT ABSORBTION 190 A 200 A 220 A N/A N/A
WEIGHT (WITH DRUM) N/A N/A N/A N/A N/A
WEIGHT (WITHOUT DRUM) 100 Kg–> 125 Kg 100 Kg–> 125 Kg 100 Kg–> 125 Kg 100 Kg–> 125 Kg 100 Kg–> 125 Kg
CHAIN 12mm ISO/ 13mm DIN766 – 14mm ISO – 16mm ISO – 16mm DIN766 – 16mm with stud link – 12,5 mm studlink – 14mm studlink – 1/2

ACHERON
ELECTRIC MOTOR 3500W 4000W 5500W 7500W Hydraulic
MOTOR SUPPLY VOLTAGE 24V 230V/400V 230V/400V 230V/400V N/A
MAXIMUM PULL 4800 Kg 5000 Kg 5500 Kg 5800 Kg 2600 Kg
LIFT WORKING LOAD 1500 Kg 1600 Kg 2000 Kg 2600 Kg 2600 Kg
LINE SPEED 12 mt/min 12 mt/min 12 mt/min 12 mt/min 12 mt/min
CURRENT ABSORPTION 220 A N/A N/A N/A N/A
WEIGHT (WITH DRUM) N/A N/A N/A N/A N/A
WEIGHT (WITHOUT DRUM) 200 Kg–> 250 Kg 200 Kg–> 250 Kg 200 Kg–> 250 Kg 200 Kg–> 250 Kg 200 Kg–> 250 Kg
CHAIN 12mm ISO/13 DIN766 – 14mm ISO – 14mm stud link – 16mm ISO – 16mm DIN766 – 16mm stud link – 17,5mm stud link – 18mm ISO – 20mm ISO – 19,5mm studlink

PRICE ON REQUEST
