White painted horizontal axis winch. The CAESAR can use chains from 14 mm to 24 mm with stud link in diameter. With different drives and recommended for boats up to 70 m.

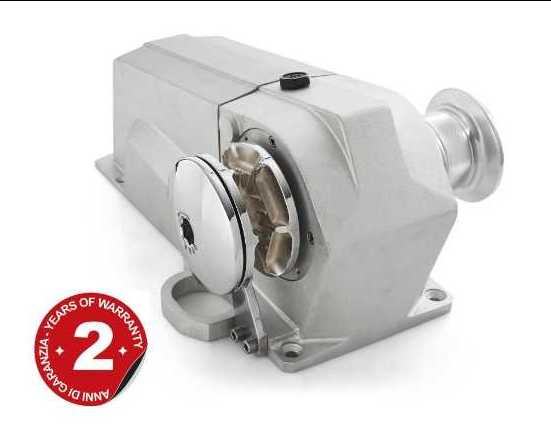

Anticorodal anodized aluminium horizontal windlass. Devon can
use chains from 6 mm 8mm to 10 mm (DIN766 or ISO) in diameter.
With different drives and recommended for boats up to 15m. It comes as standard with chaincounter sensor on board.

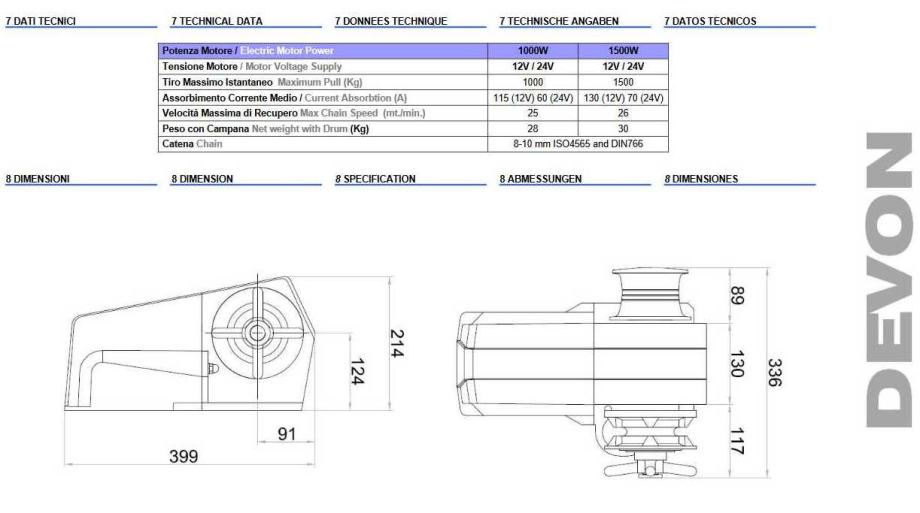

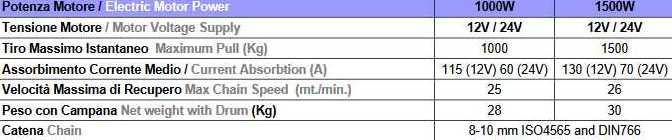

POWER 1000W 1000W 1500W 1500W
MOTOR SUPPLY VOLTAGE 12V 24V 12V 24V
MAXIMUM PULL 1290 Kg 1310 Kg 1350 Kg 1370Kg
LIFT WORKING LOAD 150 Kg 160 Kg 180 Kg 190 Kg
LINE SPEED 25 mt/min 25 mt/min 26 mt/min 26 mt/min
CURRENT ABSORPTION 115 A 60 A 130 A 70 A
WEIGHT (WITH DRUM) 25Kg –>28 Kg 25Kg –>28 Kg 25Kg –>28 Kg 25Kg –>28 Kg
CHAIN 6mm ISO – 8mm ISO – 10mm ISO – 10mm DIN766 – 5/16


PRICE ON REQUEST
