Vitlo sidreno - Winch ARAN Italwinch

LUCKY WAVE specializes in nautical equipment, yacht and mega yacht service. Sales and representation of nautical equipment, dry marina services and winter maintenance, year-round maintenance with a contract. Complete care of your ships. Sales of all marine devices (gangways, cranes, air conditioners, refrigerators, generators, chargers, winches, bow thrusters…) with technical advice, secured installation for all equipment purchased from us. As representatives of many companies, we are customer-oriented in providing top quality and service.
We offer a complete program for boats and yachts.
Contact us with confidence.

https://www.lucky-wave.eu/shop
https://lucky-wave.eu/zastupstva/

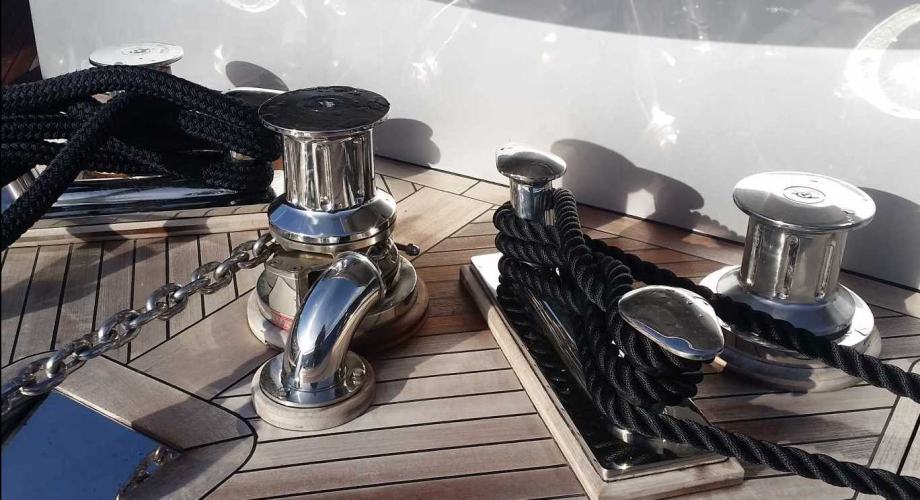

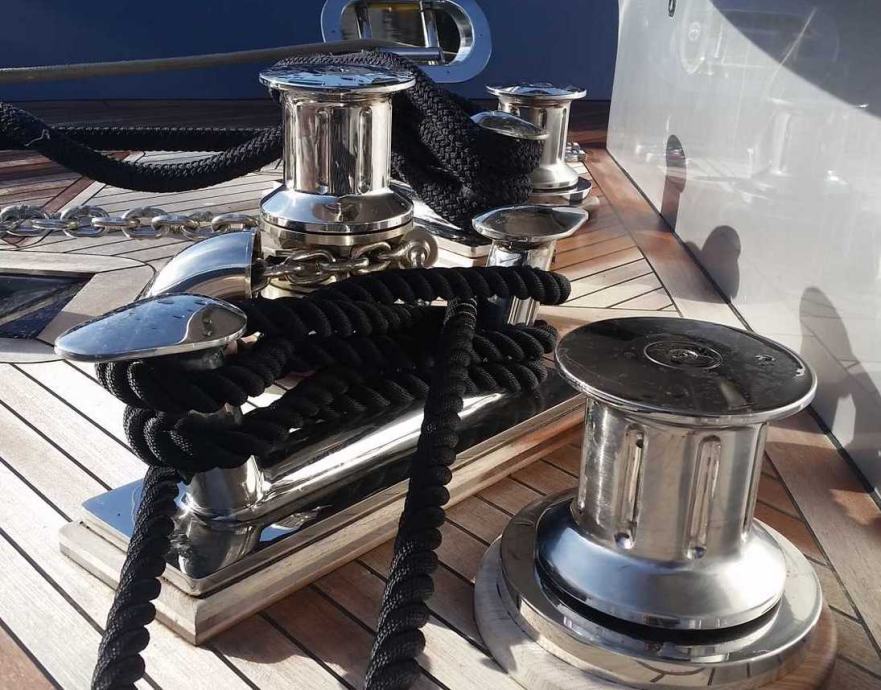

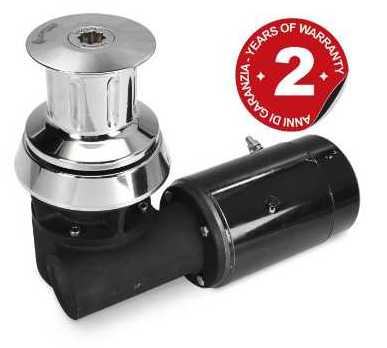

Chromed bronze capstan winch, with different drives and recommended for boats up to 28 m.

Stainless steel AISI 316 capstain winch, with different drivws and recommended for boats up to 28 meters. Possibility of 24V, 230V, 400V of hydraulic drive.

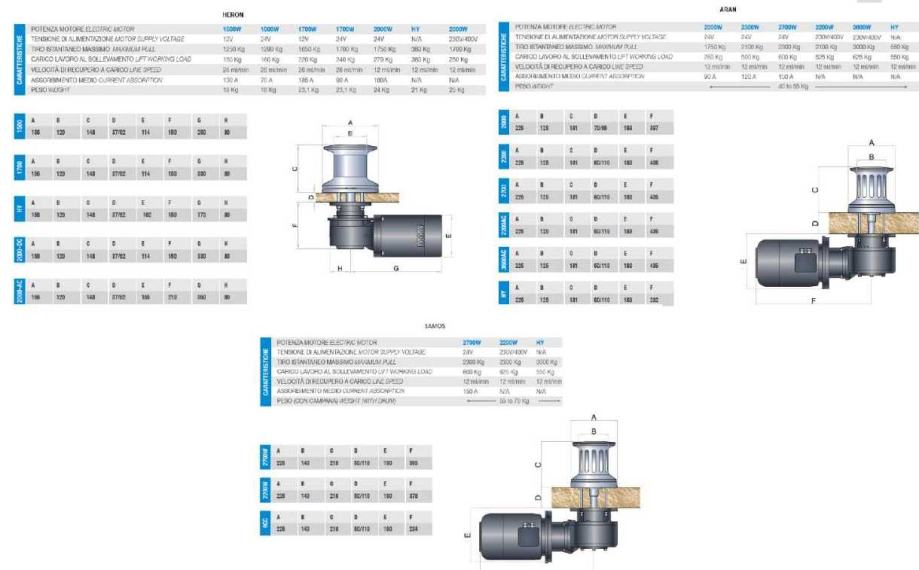

ELECTRIC MOTOR 2000W 2300W 2700W 2200W 3600W Hydraulic
MOTOR SUPPLY VOLTAGE 24V 24V 24V 24V 230V/400V N/A
MAXIMUM PULL 1750 Kg 2100Kg 2300 Kg 2100 Kg 3000 Kg 1500 Kg
LIFT WORKING LOAD 260 Kg 500 Kg 600 Kg 525 Kg 625 Kg 1500 Kg
LINE SPEED 12 mt/min 12 mt/min 12 mt/min 12 mt/min 12 mt/min 12 mt/min
CURRENT ABSORPTION 90 A 120 A 150 A N/A N/A N/A
WEIGHT (WITH DRUM) N/A N/A N/A N/A N/A N/A
WEIGHT (WITHOUT DRUM) 40 Kg--> 55 Kg 40 Kg--> 55 Kg 40 Kg--> 55 Kg 40 Kg--> 55 Kg 40 Kg--> 55 Kg 40 Kg--> 55 Kg

CONTACT US WITH CONFIDENCE
INFO & PRICE ON REQUEST
