Vitlo sidreno - Winch ARADO Italwinch

LUCKY WAVE specializes in nautical equipment, yacht and mega yacht service. Sales and representation of nautical equipment, dry marina services and winter maintenance, year-round maintenance with a contract. Complete care of your ships. Sales of all marine devices (gangways, cranes, air conditioners, refrigerators, generators, chargers, winches, bow thrusters…) with technical advice, secured installation for all equipment purchased from us. As representatives of many companies, we are customer-oriented in providing top quality and service.
We offer a complete program for boats and yachts.
Contact us with confidence.

https://www.lucky-wave.eu/shop
https://lucky-wave.eu/zastupstva/

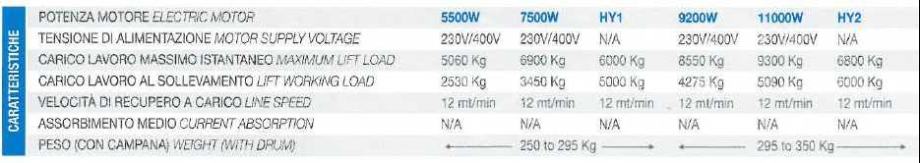

ELECTRIC MOTOR 5500W 7500W 9200W Hydraulic
MOTOR SUPPLY VOLTAGE 230V/400V 230V/400V 230V/400V N/A
MAXIMUM LIFT LOAD 5060 Kg 6900 Kg 8000 Kg 4000 Kg
LIFT WORKING LOAD 2530 Kg 3450 Kg 4000 Kg 4000 Kg
LINE SPEED 12 mt/min 12 mt/min 12 mt/min 12 mt/min
CURRENT ABSORBTION N/A N/A N/A N/A
WEIGHT (WITH DRUM) 250 Kg--> 295 Kg 250 Kg--> 295 Kg 250 Kg--> 295 Kg 250 Kg--> 295 Kg
WEIGHT (WITHOUT DRUM) N/A N/A N/A N/A
CHAIN 16mm c.t. - 17,5mm c.t. - 19mm c.t. - 20,5mm c.t.

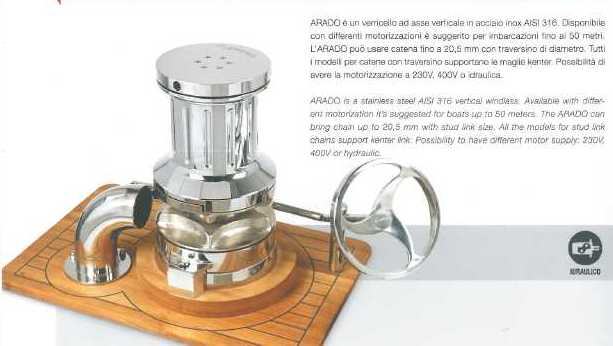

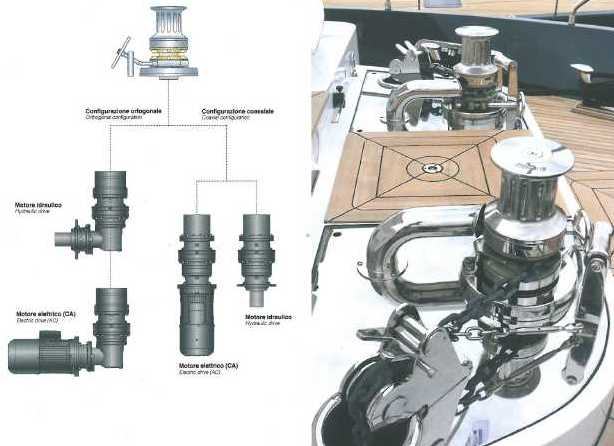

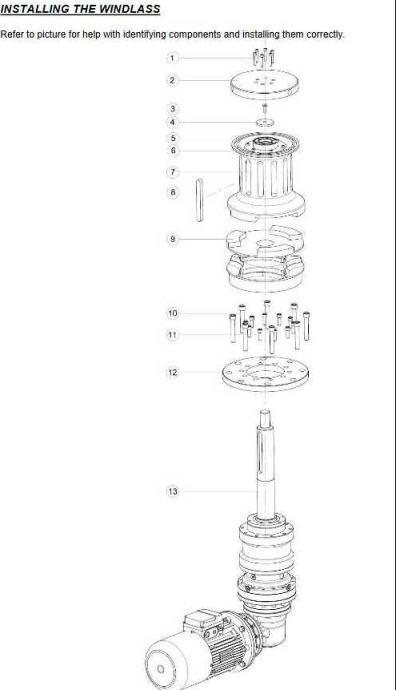

ARADO is a stainless steel A/SI 316 vertical windlass. Available with differ• ent motorization it‘s suggested for boats up to 50 meters. The ARADO can bring chain up to 20,5 mm with stud link size. All the models for stud link chains support kenter link. Possibility to have different motor supply: 230\1,

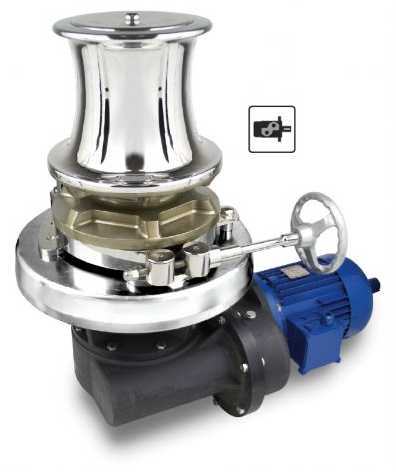

Bronze – Chromed bronze or stainless steel vertical windlass. Available in high or low profile, with different drives and recommended for boats up to 60 m. ARADO PLUS can use chains up to 24 mm With stud link in diameter. Possibility of 230V, 400V or hydraulic drive

INFO & PRICE ON REQUEST
