Cameo SB 8.3 splitter i booster

Cameo CL SB 8.3 splitter i booster

MPC: 310,00€, cijena za gotovinu/virman: 220,00€

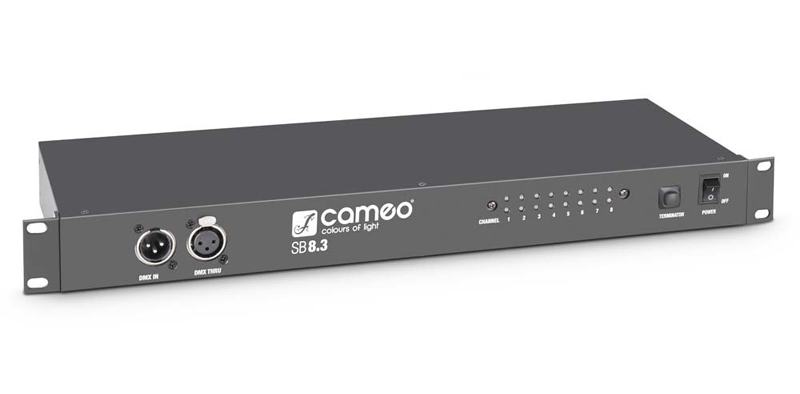

Cameo CLSB 8.3 is the professional solution for configuring DMX networks. The splitter and booster in 19" format amplifies the DMX input signal and distributes it to 8 electrically isolated outputs. It is connected directly to the DMX controller or to DMX devices. The input and the THRU socket for looping of the signal are duplicated on the front and back of the CLSB83 and connected in parallel. Bright LEDs show the DMX and power status of the channels on the front panel, the outputs are located on the back. A switchable 120 Ohm terminating resistor on the DMX THRU output and the power switch complete the equipment; the IEC-cable is supplied. For convenient output connector access and reverse installation the rack-mount angles can be attached to the rear of the chassis.


Type: DMX splitter / booster
DMX inputs: 2 (parallel)
DMX input connectors: XLR 3-pin male
DMX Thru Outputs 2: (parallel)
DMX Thru Output Connectors: XLR 3-pin female
DMX outputs: 8 (electrically isolated)
Controls: DMX Thru Terminator, Power On/Off
Indicators: 8 x Power LED , 8 x Signal LED
Mains connector: IEC socket
Operating voltage: transformer
Operating voltage: 230 V AC, 50 Hz
Power consumption: 15 W
Width: 483 mm
Height: 44 mm
Depth: 160 mm
Weight: 3 kg
Accessories (included): Power cord
