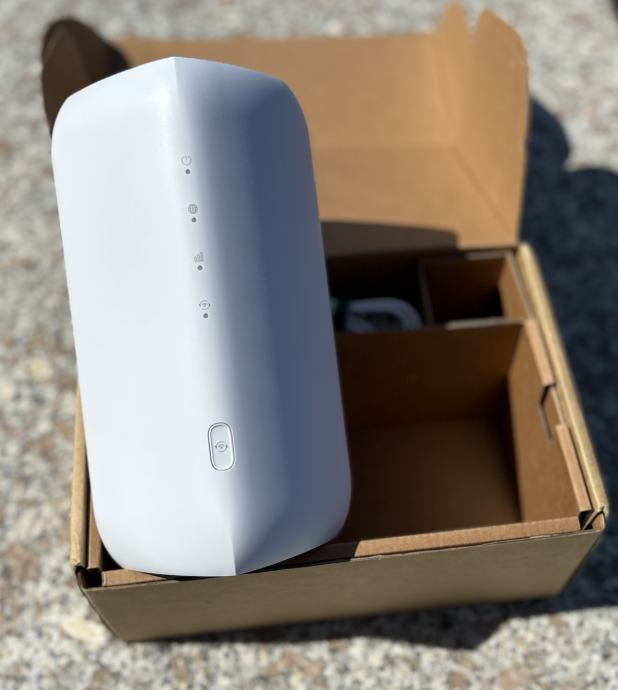

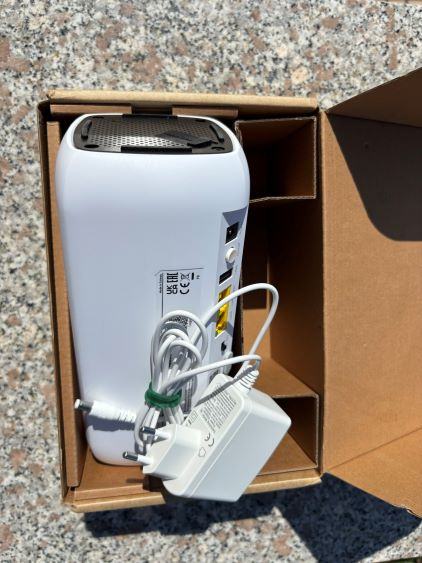

5G Router - Zyxel NR5103eV2 **novi TOP model**

Novo nekoristen, naravno radi na sve SIM kartice i operatere.

Brzine preko 900+ Mbit/s u downloadu na 5G.
Nova V2 verzija od starijeg V1 modela koji je sam po sebi u svojoj klasi.

Brzi, bolji WebGUI i sigurniji od kineskih marki routera.

Sve informacije na:
https://www.zyxel.com/service-provider/global/en/products/5g-nr4g-lte-cpe/5g-nr-cpe/idus/nr5103ev2

*****************

Hardware specifications
5G NR interface
* 3GPP Release 15 standard-compliant
* Supports both NSA and SA modes
■ FDD: n1/n3/n5/n7/n8/n20/n28/n77/n78
■ TDD: n38/n40/n41
* Supports DL 4×4 MIMO: n1/n3/n7/n38/ n40/n41/n77/n78
* Data rates:
■ 5G SA: DL 4.7 Gbps; UL 2.5 Gbps*
■ 5G NSA: DL 3.7 Gbps; UL 1.5 Gbps*
* Supports DL modulation QPSK, 16-QAM, 64-QAM, and 256-QAM
* Supports UL modulation QPSK, 16-QAM, 64-QAM, and 256-QAM
* Output power:
■ Class 2 (26 dBm) for 5G NR n41/n77/ n78
■ Class 3 (23 dBm) for rest FDD/TDD NR bands

4G LTE interface
* 3GPP UE Category 19 standardcompliant
* Supports frequencies:
■ LTE-FDD: B1/B3/B5/B7/B8/B20/B28/ B32
■ LTE-TDD: B38/B40/B41/B42/B43
* Supports DL 4×4 MIMO: B1/B3/B7/B38/ B40/B41/B42/B43
* Peak data rates:
■ Max. DL 1.6 Gbps/UL 211 Mbps*
* Supports DL modulation QPSK, 16-QAM, 64-QAM, and 256-QAM
* Supports UL modulation QPSK, 16-QAM, 64-QAM, and 256-QAM
* Output power:
■ Class 3 (23 dBm ±2 dBm) for rest FDD/TDD LTE bands

WiFi air Interface
* Wireless standard: IEEE 802.11b/g/n/a/ ac/ax
* Wireless speeds:
■ Link rates up to 1,774 Mbps* for 802.11ax DBDC
* Internal WiFi antenna:
■ Dual-band & concurrent 2×2 + 2×2
* WiFi antenna gain:
■ ≤ 4 dBi for 2.4 GHz
■ ≤ 5 dBi for 5 GHz

5G/4G antennas
* Two TS9 connectors for external antennas
* Four embedded omni-directional antennas
* Antenna Spec (Peak Gain)
■ 700 MHz ~ 960 MHz: 2 dBi
■ 1.4 GHz ~ 2.7 GHz: 5 dBi
■ 3.3 GHz ~ 4.2 GHz: 5 dBi

Hardware interface
* Two 100/1000 Mbps Ethernet RJ-45 LAN ports, LAN2 can be configured for Ethernet WAN port
* LED indicators:
■ Power indication
■ Signal strength
■ Internet connection status
■ WiFi AP status
■ WPS status
* Two external antenna connectors (TS9 type)
* One 3FF/Micro SIM card slot
* One power on/off button
* One WPS/WiFi on/off button
* One reset button
* One Int/Ext antenna switch
* One USB 2.0 host port for file sharing

IP networking
* Supports IPv4/IPv6 dual stack (NDP IPv6)
* DHCP Client/server
* Virtual Private Network (VPN) pass-through
* Supports NAT/NAPT
* Supports DMZ
* Multiple APNs
* Supports port forwarding

Routing
* Supports bridge and router modes
* Supports remote management under bridge mode
* Static/dynamic route setting

IP firewall
* DoS attack detection
* Supports SPI
* Application-level firewall (LAN to WAN such as FTP, HTTP, Telnet, Ping)
* Filters LAN MAC address
* Filters LAN IP address

Management
* Supports local/remote device management and firmware upgrade via TR-069 and web GUI
* PIN/PUK management
* APN management
* Operating frequency band selection
* CLI/SSH (local and remote SSH access)
* Supports UPnP IGD
* Supports web server API to support APPs
* Supports Zyxel Air app (iOS and Android) for easy installation and local management)

WLAN feature
* Auto channel selection
* WiFi Protected Setup (WPS)
* WiFi Multimedia (WMM)
* WiFi-enabled devices: up to 64
* Security: none, WPA2-Personal, WPA/ WPA2, WPA3
* MAC address filtering with 64 address supported
* Multiple SSIDs/hide SSIDs
* WLAN scheduling

Power consumption
* 24 W (peak)

Physical specifications
* Item dimensions (WxDxH): 103 x 103 x 222 mm (4.06” x 4.06” x 8.74”)
* Item weight: 1145 g (2.53 lb.)
* Packing dimensions (WxDxH): 252 x 171 x 110 mm (9.92” x 6.73” x 4.33”)
* Packing weight: 2450 g (5.40 lb.)

Lightning-fast internet connectivity
The NR5103EV2 supports 5G NR DL speeds of 4.67 Gbps* and 4G LTE DL speeds of up to 1.6 Gbps*, increasing internet speed and reducing network latency. Wide-spectrum bandwidth accelerates internet speed and reduces network latency for premium and time-sensitive mobile broadband services.

Wi-Fi 6 (11ax) technology for superior performance and coverage
Compliant with Wi-Fi 6 (802.11ax) standard, the NR5103EV2 offers speeds of up to 1,774 Mbps with 2×2 UL/DL MU-MIMO. With the uplink MU-MIMO, Orthogonal Frequency Division Multiple Access (OFDMA), and beamforming technologies empower the NR5103EV2 to deliver premium speed for multistreaming data access and optimal Wi-Fi experience without dead zones.

Strengthen your competitive edge with Fixed Wireless Access (FWA)Deploying NR5103EV2 as part of FWA allows you to extend your 4G/5G service coverage into subscribers’ homes and workplaces without extra wire infrastructure. This secures the TCOs and increases business revenue by supporting a larger number of subscribers with a premium fixed-grade connection.

SA/NSA dual-mode compliant
The Standalone (SA) and Non-Standalone (NSA) compliant architecture of NR5103EV2 improves your operational efficiency during 5G migration, accelerating your 5G service rollouts.


*****
