Jeti senzor MRPM-AC i MULTI6S-M
- Cijena
- 70 €
Šifra oglasa: 46643105
Osnovne informacije
- Lokacija
- Osječko-baranjska, Đakovo, Đakovo
- Stanje
- novo
Opis oglasa

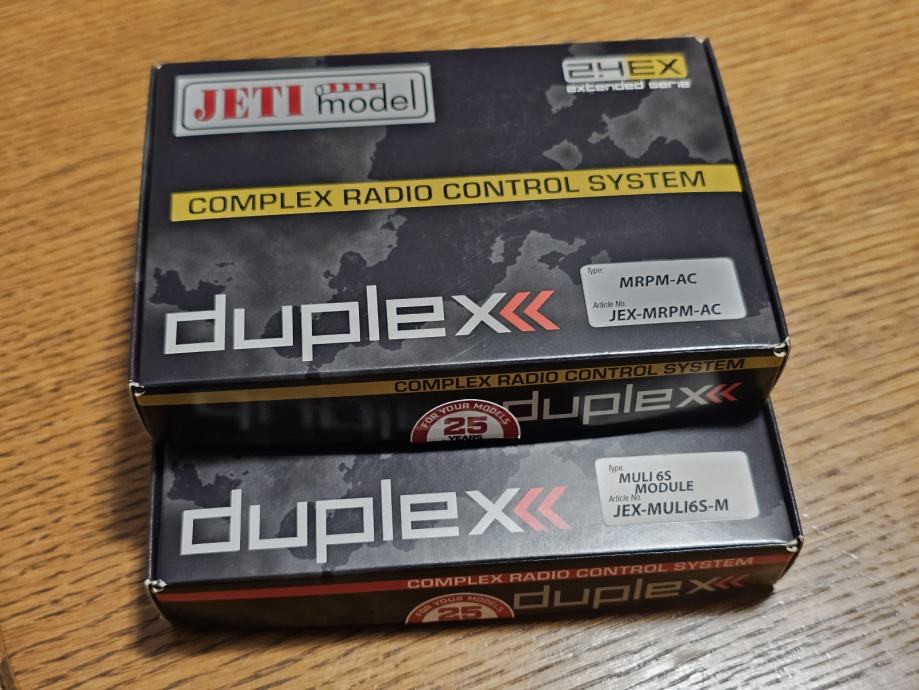

Prodajem 2 Jeti senzora, novi, otpakirani samo radi provjere ispravnosti.
MRPM-AC 30€
- mjerenje broja okretaja elektro brushless motora putem dvije žice koje se spoje na bilokoje 2 od 3 žice motora.
DUPLEX 2.4EX MRPM AC
Specifications:
Supply Voltage 3,5 - 8.4 V
Dimensions 19x14x4mm
Weight 6g
Temperature Range -10 - +85°C
MULTI6S-M 40€
DUPLEX 2.4EX MULi 6s-Module Sensor for measuring voltage on LiXX cells
MULi6S modules are designed to measure single voltages of Lixx packs up to 6S. This sensor module is expandable up to three units for measuring batteries with up to 18 cells (3x 6S). Connection to balancing connector, suitable for XH and EHR balancer connector systems.
- possibilities to serial connection of modules, up to 3 (up to 18s Li-XX cells)
- Programming via the device Manager in the JETI DC/DS Tx
- 32-bit Prozessor
- EX Bus Telemetrie
- Firmware updates
Technical Data:
Dimension [mm]: 36 x 20 x 5
Weight incl. Wires [g]: 6
Voltage Range per Cell [V]: 0-4,4
Measuring accuracy [%]: 0,1
Temperaturrange [°C]: -10 bis +85
Voltage [V]: 3.5 – 8.4
Current [mA]: 20
MRPM-AC 30€
- mjerenje broja okretaja elektro brushless motora putem dvije žice koje se spoje na bilokoje 2 od 3 žice motora.
DUPLEX 2.4EX MRPM AC
Specifications:
Supply Voltage 3,5 - 8.4 V
Dimensions 19x14x4mm
Weight 6g
Temperature Range -10 - +85°C
MULTI6S-M 40€
DUPLEX 2.4EX MULi 6s-Module Sensor for measuring voltage on LiXX cells
MULi6S modules are designed to measure single voltages of Lixx packs up to 6S. This sensor module is expandable up to three units for measuring batteries with up to 18 cells (3x 6S). Connection to balancing connector, suitable for XH and EHR balancer connector systems.
- possibilities to serial connection of modules, up to 3 (up to 18s Li-XX cells)
- Programming via the device Manager in the JETI DC/DS Tx
- 32-bit Prozessor
- EX Bus Telemetrie
- Firmware updates
Technical Data:
Dimension [mm]: 36 x 20 x 5
Weight incl. Wires [g]: 6
Voltage Range per Cell [V]: 0-4,4
Measuring accuracy [%]: 0,1
Temperaturrange [°C]: -10 bis +85
Voltage [V]: 3.5 – 8.4
Current [mA]: 20
