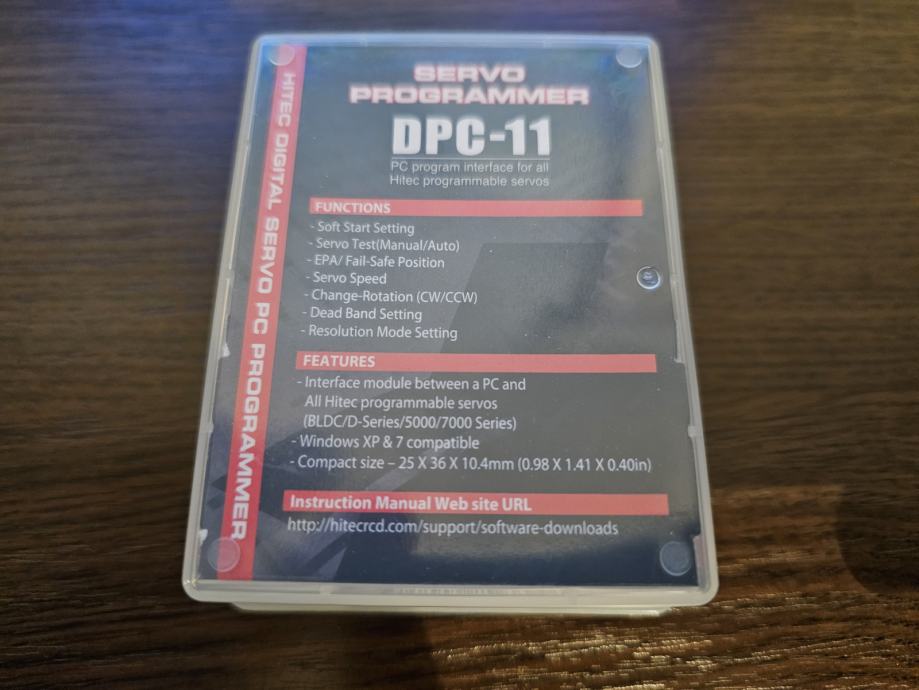

DPC-11 Hitec universal servo programmer with PC interface

USB Interface - Universal Programmer and Tester for ALL PROGRAMMABLE SERVICE HITEC . This means that the DPC-11 can program the Dxxx series digital servos, the HSB-9xxx alternate servos and the HS-5xxx and HS-7xxx digital servos. Using a computer monitor as a user interface, you have a comfortably programmable and testing tool.

The servo is powered from the 4.8-7.4 V receiver (4-6 volt NiMH, 2S LiPo / LiFe / Li-ion) connected to the DPC-11 when programming / testing. All parameters are first set in the on-screen window and then uploaded to your servos. Then use the PC and the servo function to check the servo settings.

For use, you will need:

Windows XP, Windows 7, 8 or 10. Note: The USB driver for the DPC-11 utility software has two different versions depending on whether you are using a 32-bit system (Windows XP, 7 and 8) or a 64-bit system (Windows 7 , 8 and 10). For the software package, see the "Download" section.Standard 5-pin mini-USB / USB 2.0 cable (for example, an external memory card reader, some digital cameras, or mobile phones)Receiver rechargeable battery pack with a nominal voltage of 4.8 - 7.4 V (4-6 volt NiMH, 2S LiPo / LiFe / Li-ion)Standard USB 2.0 A / Mini B (5-pin) cable - Make sure you use a USB cable and not just a power / rechargeable

SERVOTESTER

Intelligent Tester for Parameter Testing of All Programmable Servers Hitec allows you to test the servo motion:

Manual positioningAutomatic overrun of the servos between end positions - smoothAutomatic overrun of the servos between end positions - step by stepChecking fail-safe positions

PROGRAMMER

With the help of the DPC-11 it is possible to program the following Hitec digital servo functions:

Functionseries DHSB-9xxxHS-5xxx / 7xxxServo ID numberYes--Exit and Center Endpoints (EPA)YesYesYesThe meaning of deflectionsYesYesYesFail-SafeYesYesYesDeadbandYesYesYesSpeedYesYesYesSoft startYesYes-Overload protectionYes-YesDistinction--YesSaving and retrieving parameter filesYesYesYesReset servos to factory defaultsYesfrom the fileYes

The set of programmers includes: programmer DPC-11, instructions" / p>

Power supply (Rated) [V]4.8 - 7.4Length [mm]36Width [mm]25Height [mm]10.5Weight [g]7
