AV Receiver Eachine TX801
- Cijena
- 22 €
Šifra oglasa: 47404142
Osnovne informacije
- Lokacija
- Grad Zagreb, Novi Zagreb - Zapad, Otok
- Stanje
- novo
Opis oglasa
Nov, nikad korišten:

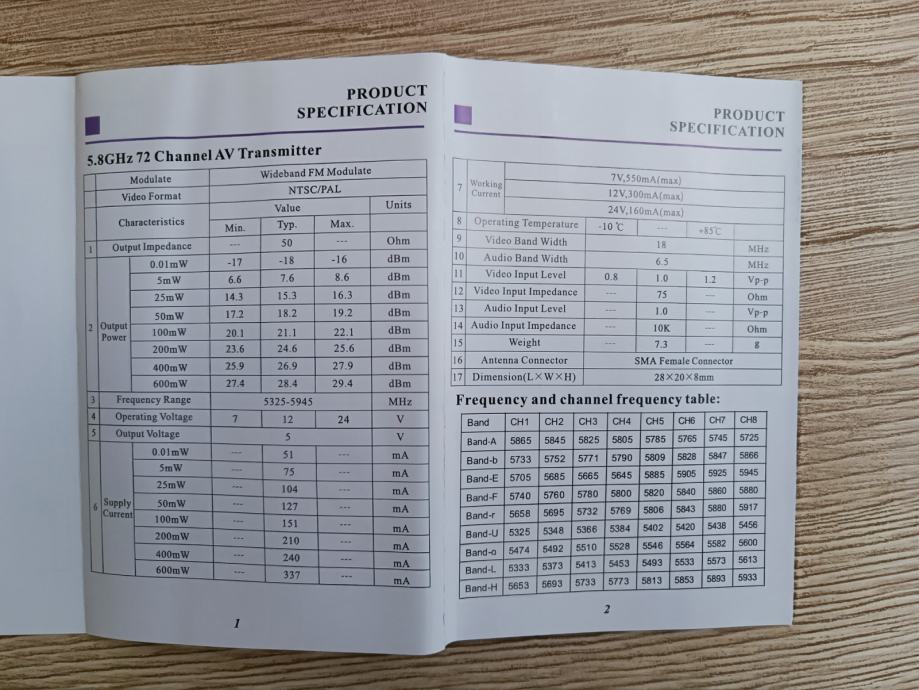

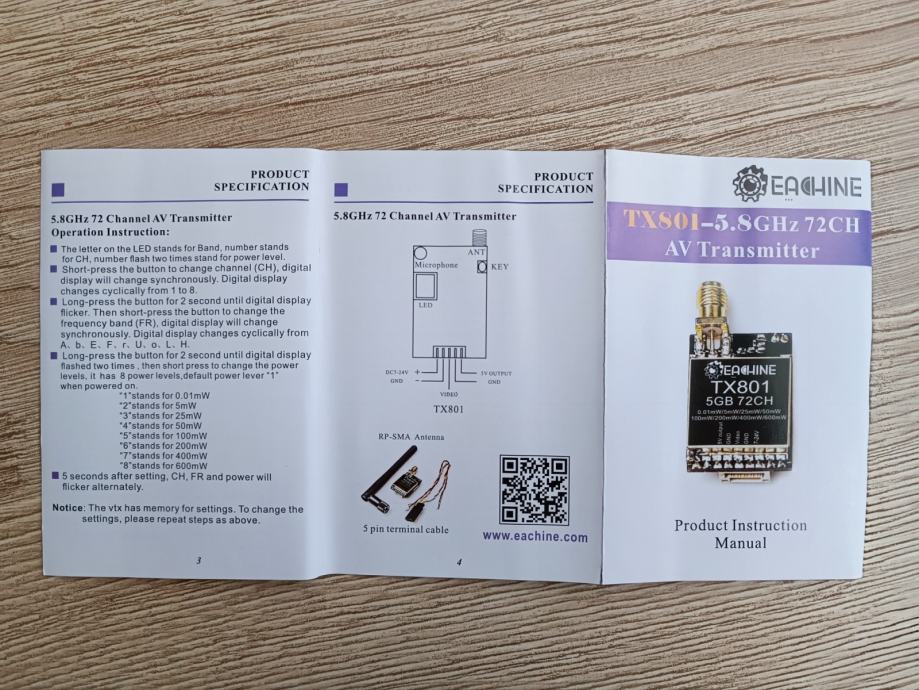

Eachine TX801 5.8G 72CH 0.01mW 5mW 25mW 50mW 100mW 200mW 400mW 600mW Switched AV VTX FPV Transmitter
Brand Name : Eachine
Item Name : TX801 Transmitter
Antenna Gain: 3Dbi
Antenna Conenctor : RP-SMA
Frequency: 5325-5945MHZ
Channel : 72CH
Transmitting Power: 0.01MW/5MW/25MW/50MW/100MW/200MW/400MW/600MW Switchable
Video Format: NTSC/PAL
Working Current: (MAX)7V-550mA
;12V-300mA
;24V-160mA"
Audio Bandwidth : 6.5MHZ
Video Bandwidth: 18MHZ
Audio Carrier : 1Vp-p(1KHZ)
AF Input Impedance : 10KΩ
Working Voltage : 7-24V
Output Voltage : 5V
Weight :7.3g
Size :28*20*8MM
Cable :
Blue : GND
Yellow : Video
Red : Output Voltage

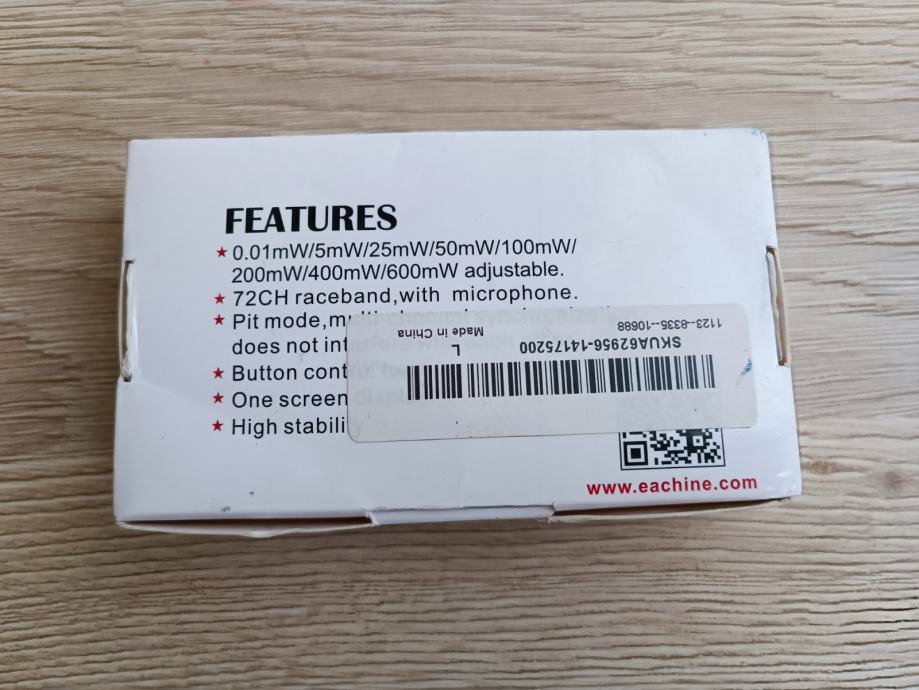

Features :
8 power levels switchable: 0.01MW/5MW/25MW/50MW/100MW/200MW/400MW/600MW
72 channels, cover all 5.8G frequency.
With Microphone, support audio transmission
5V output, max working current 550mA
Multi-channel synchronization does not interfere with each other

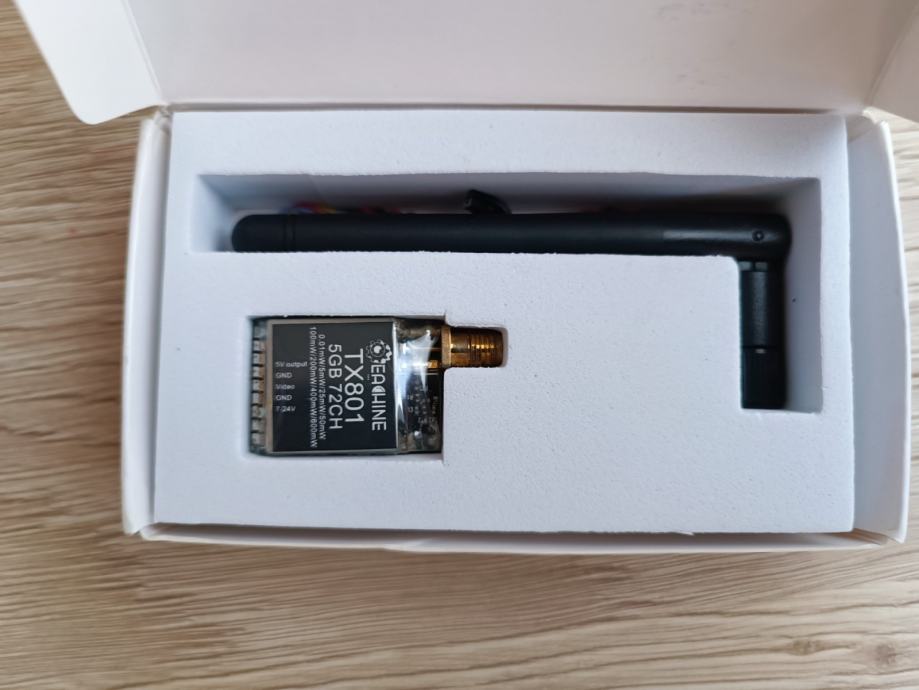

Package Included :
1 x TX801 Transmitter
1 x Antenna
1 x Power AV Cable
Eachine TX801 5.8G 72CH 0.01mW 5mW 25mW 50mW 100mW 200mW 400mW 600mW Switched AV VTX FPV Transmitter
Brand Name : Eachine
Item Name : TX801 Transmitter
Antenna Gain: 3Dbi
Antenna Conenctor : RP-SMA
Frequency: 5325-5945MHZ
Channel : 72CH
Transmitting Power: 0.01MW/5MW/25MW/50MW/100MW/200MW/400MW/600MW Switchable
Video Format: NTSC/PAL
Working Current: (MAX)7V-550mA
;12V-300mA
;24V-160mA"
Audio Bandwidth : 6.5MHZ
Video Bandwidth: 18MHZ
Audio Carrier : 1Vp-p(1KHZ)
AF Input Impedance : 10KΩ
Working Voltage : 7-24V
Output Voltage : 5V
Weight :7.3g
Size :28*20*8MM
Cable :
Blue : GND
Yellow : Video
Red : Output Voltage
Features :
8 power levels switchable: 0.01MW/5MW/25MW/50MW/100MW/200MW/400MW/600MW
72 channels, cover all 5.8G frequency.
With Microphone, support audio transmission
5V output, max working current 550mA
Multi-channel synchronization does not interfere with each other
Package Included :
1 x TX801 Transmitter
1 x Antenna
1 x Power AV Cable
