Rean RT3 MC-B konektor
- Cijena
- 2,50 €
Šifra oglasa: 31571891
Osnovne informacije
- Lokacija
- Grad Zagreb, Trešnjevka - Sjever, Voltino
- Stanje
- novo
Opis oglasa
Rean RT3 MC-B konektor
MPC: 3,00€, cijena za gotovinu/virman: 2,50€

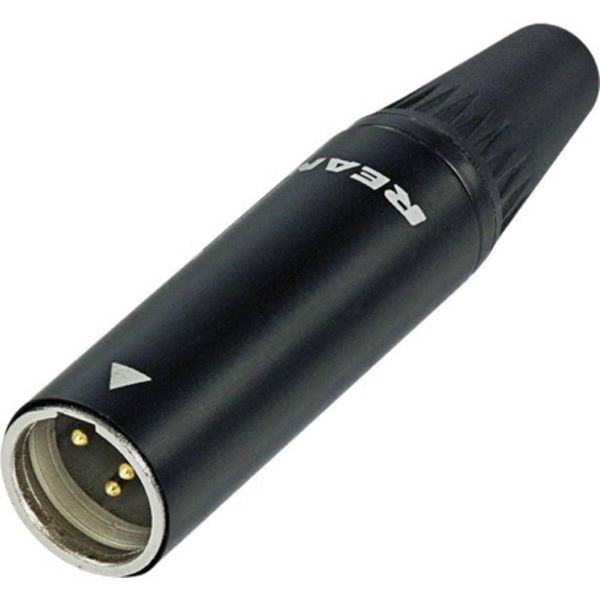

3 pole TINY xlr male cable connector, black metal shell, gold plated contacts

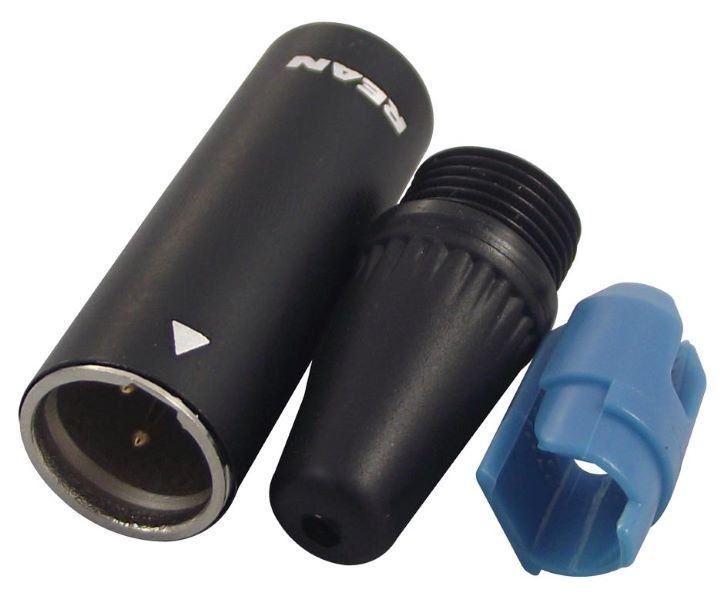

Easy to assemble
Robust metal housing with best flex relief
Shielded system – high noise immunity and EMI protection
Intuitive and rugged locking mechanism provides secure locking system
Millionfold proven chuck type strain relief – up to 4.00 mm cable diameter
Keyed insert and strain relief to avoid mispositioning / rotation of insert respectively cable
Technical specifications:
Product:
Title: RT3MC-B
Gender: male
Electrical:
Contact resistance: < 10 mΩ
Dielectric strength: > 0.5 kVdc
Insulation resistance: > 1 GΩ
Rated current per contact: < 5 A
Transmission Performance: null
Mechanical:
Cable O.D.: 2.0 - 4.0 mm
Lifetime: > 5000 mating cycles
Wiresize: 0.22 mm²
Wiresize: 24 AWG
Wiring: Solder contacts
Material:
Bushing: ABS / TPU
Contact plating: Au
Contacts: Bronze (CuSn6)
Insert: PA 6.6 30 % GF
Shell: Zinc diecast (ZnAl4Cu1)
Shell plating: Black
Strain relief: POM
Environmental:
Solderability: Complies with IEC 68-2-20
Temperature range: -30 °C to +85 °C
