Procab MCM108 - Balanced signal cable - 8 pairs x 0.125 mm² - 26 AWG

Procab MCM108 - Balanced signal cable - 8 pairs x 0.125 mm² - 26 AWG

MPC: 7,30 €/m, cijena za gotovinu/virman: 6,50 €/m

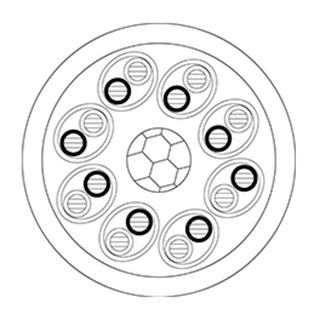

MCM audio multipair cable is an extremely flexible and rugged type of cable, suitable for indoor and outdoor applications. Each audio pair consists of two insulated and twisted conductors of 0.125 mm² with a high density shielding to prevent any influence of hum, noise or electromagnetic fields from external equipment. Each balanced audio pair has a paper foil packing and an outer PVC jacket of 3.5 mm. All audio pairs are also fitted with a general paper foil packing and a PVC jacket. The PROCAB MCM multipair cable is suited for all kinds of applications such as stagebox connections, live concerts, …


Highlights:

26 AWG stranded conductors
Individual jacketed pairs
Numbered jacket pair identification
Individual spiral shielding


PHYSICAL CHARACTERISTICS:

Type of cable: 26 AWG Stereo signal cable
Inner conductor:
Material BC 7 x 0.15 mm (Ø) (OFC)
Section: 0.125 mm²
Number of conductors: 2 (8 pairs), 8 x 2
Insulation Material: PE 1.5 mm (Ø)
Conductor twisting: Yes
Shielding: Spiral BC 32 x 0.12 mm (Ø) (OFC)
Outer jacket:
Material: Flexible PVC 3.5 mm (Ø)
Colours: Black
Material: Flexible PVC 15 mm (Ø)
Colours: Black

ELECTRICAL CHARACTERISTICS:

Lead resistance: 13.75 Ω / 100 m
Capacitance: Cond/Cond 25 pF / m @ 1 kHz
Cond/Shield: 74 pF / m @ 1 kHz
Cable Crosstalk: Min. 73.3 dB / 100 m
