Neutrik NF2D šasijski konektor
- Cijena
- 6 €
Šifra oglasa: 31570650
Osnovne informacije
- Lokacija
- Grad Zagreb, Trešnjevka - Sjever, Voltino
- Stanje
- novo
Opis oglasa

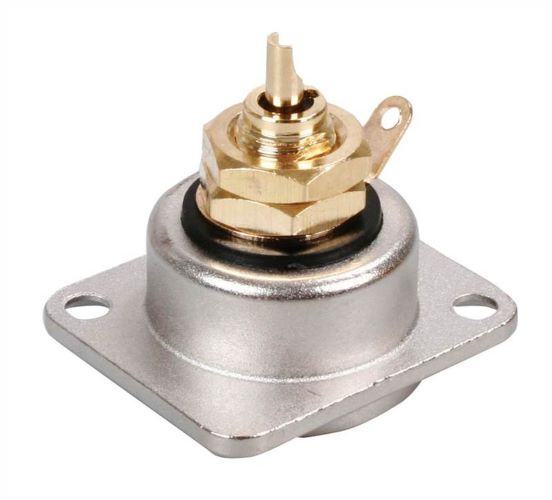

Neutrik NF2D šasijski konektor
MPC: 7,70€, cijena za gotovinu/virman: 7,00€
Phono socket in nickel D-shape housing, yellow isolation washers, solder version.
Gold plated contacts
TECHNICAL SPECIFICATIONS:
Product:
Title: NF2D
Connection Type: RCA
Gender: female
Electrical:
Capacitance between contacts: ≤ 9 pF
Contact resistance: 5 GΩ
Rated current per contact: depends on mating connector / A
Rated voltage: < 50 V
Mechanical :
Lifetime: > 2000 mating cycles
Wiring: Solder contacts
Mounting direction: Front mounting
Chassis shape: D
Material:
Contacts: Brass (CuZn39Pb3)
Shell: Zinc diecast (ZnAl4Cu1)
Contact plating: 0.05 µm Au over 2 µm Ni
Environmental:
Flammability: UL 94 HB
Standard compliance: IEC 601-14
Protection class: IP 40
Solderability: Complies with IEC 68-2-20
Temperature range: -30 °C to +80 °C
www.promin.hr
POSJETITE NAS I U NOVOOTVORENOJ PRODAVAONICI U ULICI KRALJA TOMISLAVA 11, ZAGREB
Radno vrijeme: od ponedjeljka do petka 09-17 sati
MPC: 7,70€, cijena za gotovinu/virman: 7,00€
Phono socket in nickel D-shape housing, yellow isolation washers, solder version.
Gold plated contacts
TECHNICAL SPECIFICATIONS:
Product:
Title: NF2D
Connection Type: RCA
Gender: female
Electrical:
Capacitance between contacts: ≤ 9 pF
Contact resistance: 5 GΩ
Rated current per contact: depends on mating connector / A
Rated voltage: < 50 V
Mechanical :
Lifetime: > 2000 mating cycles
Wiring: Solder contacts
Mounting direction: Front mounting
Chassis shape: D
Material:
Contacts: Brass (CuZn39Pb3)
Shell: Zinc diecast (ZnAl4Cu1)
Contact plating: 0.05 µm Au over 2 µm Ni
Environmental:
Flammability: UL 94 HB
Standard compliance: IEC 601-14
Protection class: IP 40
Solderability: Complies with IEC 68-2-20
Temperature range: -30 °C to +80 °C
www.promin.hr
POSJETITE NAS I U NOVOOTVORENOJ PRODAVAONICI U ULICI KRALJA TOMISLAVA 11, ZAGREB
Radno vrijeme: od ponedjeljka do petka 09-17 sati
