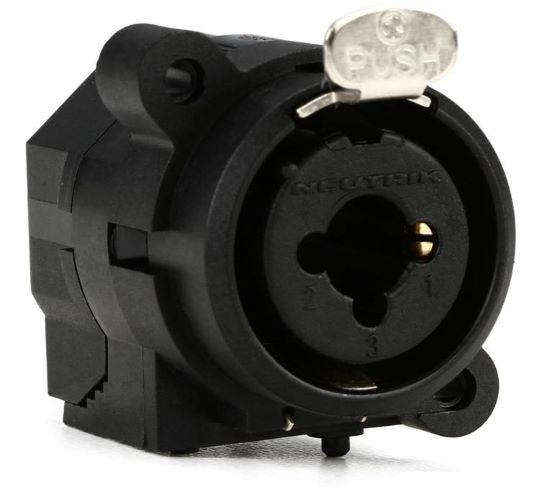

Neutrik NCJ6FI-S šasijski combo XLR-jack konektor
- Cijena
- 4,50 €
Šifra oglasa: 31572072
Osnovne informacije
- Lokacija
- Grad Zagreb, Trešnjevka - Sjever, Voltino
- Stanje
- novo
Opis oglasa
Neutrik NCJ6FI-S šasijski combo XLR-jack konektor
MPC: 5,00€, cijena za gotovinu/virman: 4,50€
3 pole XLR female receptacle with 1/4" stereo jack without switching contact, solder cups
XLR / jack hybrid chassis connector combining 3 pole XLR receptacle and 1/4" jack.
Features & Benefits:
Combined XLR receptacle and 1/4" phone jack
Balanced or line inputs in one XLR shell
Saves rack space by combining 2 connectors in one housing
Very low conductor capacitance, therefore suitable for digital audio
Technical specifications:
Title: NCJ6FI-S
Connection Type: Combo
Gender: female
Electrical:
Contact resistance: < 10 mΩ (XLR)
Contact resistance: < 20 mΩ (jack)
Dielectric strength: 1,5 kVdc
Insulation resistance: > 10 GΩ (initial)
Rated current per contact: 7,5 A (XLR)
Rated current per contact: 7,5 A (Jack)
Rated voltage: < 50 V
Mechanical :
Insertion force: ≤ 25 N
Withdrawal force: ≤ 25 N
Lifetime: > 1000 mating cycles
Panel thickness: max. 7 mm
Mounting direction: Rear mounting
Material:
Contact plating: 0.2 µm Au hard alloy over 2 µm Ni
Contacts: Bronze (CuSn6)
Insert: Polyamide (PA 6.6 30 % GR)
Locking element: Steel Ck67
Environmental:
Temperature range: -30 °C to +80 °C
www.promin.hr
POSJETITE NAS I U NOVOOTVORENOJ PRODAVAONICI U ULICI KRALJA TOMISLAVA 11, ZAGREB
Radno vrijeme: od ponedjeljka do petka 09-17 sati
MPC: 5,00€, cijena za gotovinu/virman: 4,50€
3 pole XLR female receptacle with 1/4" stereo jack without switching contact, solder cups
XLR / jack hybrid chassis connector combining 3 pole XLR receptacle and 1/4" jack.
Features & Benefits:
Combined XLR receptacle and 1/4" phone jack
Balanced or line inputs in one XLR shell
Saves rack space by combining 2 connectors in one housing
Very low conductor capacitance, therefore suitable for digital audio
Technical specifications:
Title: NCJ6FI-S
Connection Type: Combo
Gender: female
Electrical:
Contact resistance: < 10 mΩ (XLR)
Contact resistance: < 20 mΩ (jack)
Dielectric strength: 1,5 kVdc
Insulation resistance: > 10 GΩ (initial)
Rated current per contact: 7,5 A (XLR)
Rated current per contact: 7,5 A (Jack)
Rated voltage: < 50 V
Mechanical :
Insertion force: ≤ 25 N
Withdrawal force: ≤ 25 N
Lifetime: > 1000 mating cycles
Panel thickness: max. 7 mm
Mounting direction: Rear mounting
Material:
Contact plating: 0.2 µm Au hard alloy over 2 µm Ni
Contacts: Bronze (CuSn6)
Insert: Polyamide (PA 6.6 30 % GR)
Locking element: Steel Ck67
Environmental:
Temperature range: -30 °C to +80 °C
www.promin.hr
POSJETITE NAS I U NOVOOTVORENOJ PRODAVAONICI U ULICI KRALJA TOMISLAVA 11, ZAGREB
Radno vrijeme: od ponedjeljka do petka 09-17 sati
