Neutrik NBB75DFG šasijski konektor
MPC: 13,00€, cijena za gotovinu/virman: 12,00€

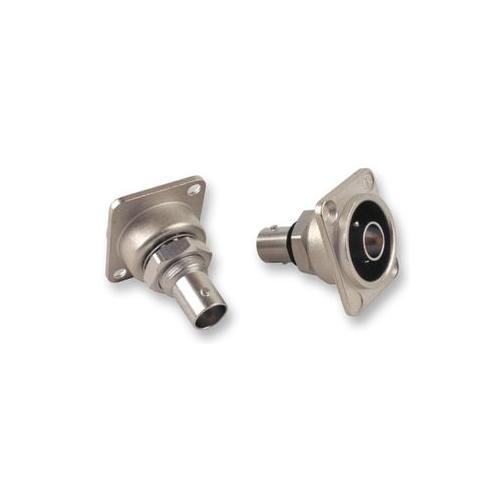

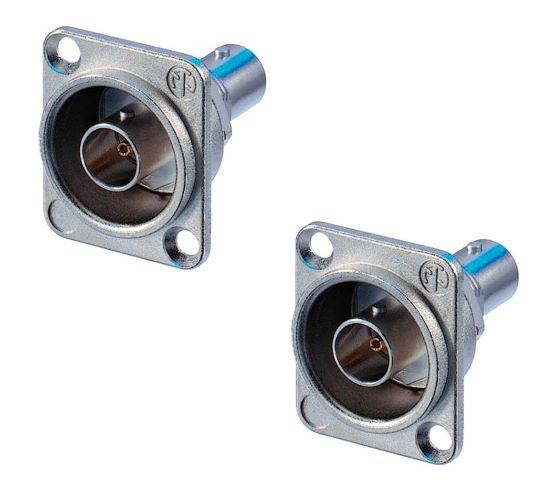

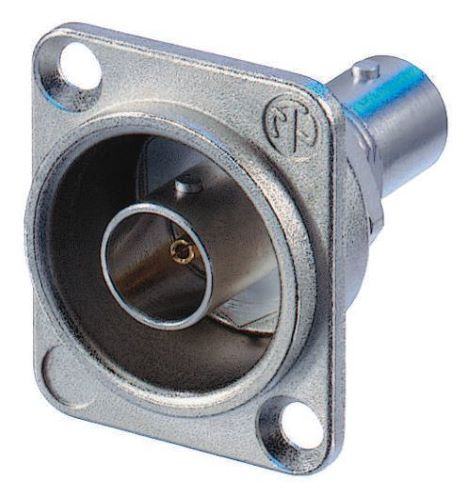

Grounded BNC chassis connector, feedthrough in nickel D-shape housing
Neutrik's BNC chassis connectors offer a true 75 Ω design for serial and digital (HD) signals. The machined brass connector body provides an extremely rugged and non-abrasive connection over long term use and is in addition recessed and therefore well protected in a D-shape housing (audio industry standard)
Features & Benefits:

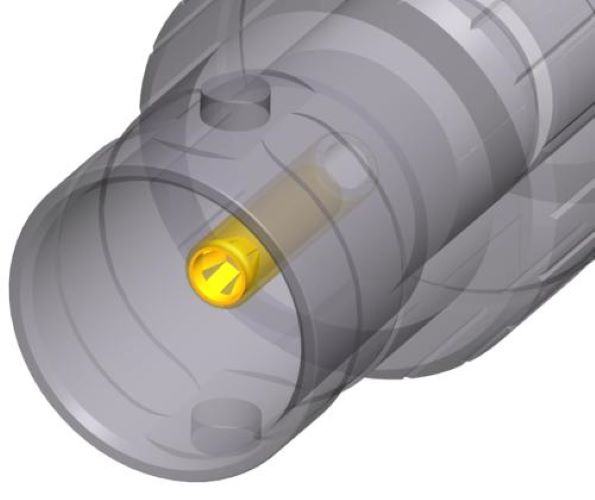

Gold plated cage type center contact
True 75 Ω design meets the stringent HD requirements
Grounded panel mount
Standard D-shape housing - provides flush mounting and protection from demage
Color coding possible
TECHNICAL SPECIFICATIONS:
Product:
Title: NBB75DFG
Connection Type: BNC 75 Ω
Gender: female
Electrical:
Signal Type: HD, SDI, Video, AES/EBU, Composit, YUV, RGB, RGBH, RGBHV
Contact resistance: ≤ 3 mΩ (inner)
Contact resistance: ≤ 2 mΩ (outer)
Dielectric strength: 1,5 kVdc
Impedance: 75 Ω
Insulation resistance: > 5 GΩ
Rated voltage: 37 dB up to 1 GHz, ≤1.05/>32 dB up to 2 GHz, ≤1.08/>28 dB up to 3 Ghz
Mechanical :
Insertion force: < 25 N
Lifetime: > 1000 mating cycles
Locking device: Bayonett
Mounting direction: Front mounting
Chassis shape: D
Material:
Contacts: Brass (CuZn39Pb3), 0.2 µm AuCo (Center contact)
Insert: PTFE
Shell: Polyacetal (POM) (Insulation Sheell)
Shell plating: Optalloy®
D-Shape housing: Zinc diecast (ZnAl4Cu1) gal Ni plating
Environmental:
Temperature range: -30 °C to +85 °C
