Neutrik NAC3MM-1 powercon spojnica
- Cijena
- 28 €
Šifra oglasa: 26840766
Osnovne informacije
- Lokacija
- Grad Zagreb, Trešnjevka - Sjever, Voltino
- Stanje
- novo
Opis oglasa

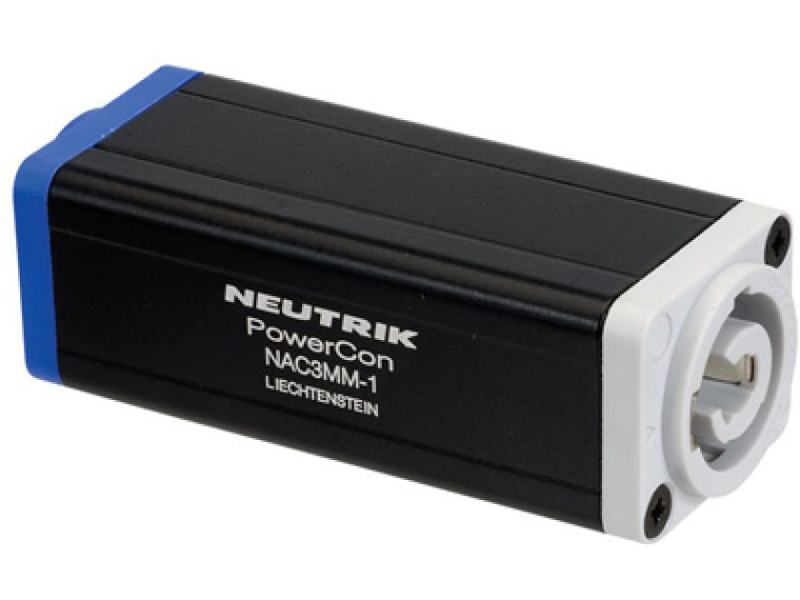

Neutrik NAC3MM-1 powercon spojnica
MPC: 33,00€, cijena za gotovinu/virman: 28,00€
powerCON 20 A
The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
SPECIFICATIONS:
Product
Title: NAC3MM-1
Connection Type: Adapter
Gender: male
Electrical
Contact resistance: ≤ 3 mΩ
Dielectric strength: 4 kVdc
Insulation resistance: > 0.1 GΩ (after damp heat test IEC 68-2-30)
Rated current per contact: 20 A rms
Rated voltage: 250 V ac
Mechanical
Lifetime: > 1000 mating cycles
Locking device: Quick Lock
Material
Contact plating: 2 µm Ag
Locking element: Steel Ck67
Shell: Polyamide (PA 6.6 30 % GR)
Contacts: Bronze (CuNi1Si0.2)
Environmental
Flammability: UL 94 V-0
Protection class: IP 20 (mated)
Safety Requirements: EN/IEC 61984
Solderability: Complies with IEC 68-2-20
Temperature range: -30 °C to +80 °C
www.promin.hr
POSJETITE NAS I U NOVOOTVORENOJ PRODAVAONICI U ULICI KRALJA TOMISLAVA 11, ZAGREB
Radno vrijeme: od ponedjeljka do petka 09-17 sati
MPC: 33,00€, cijena za gotovinu/virman: 28,00€
