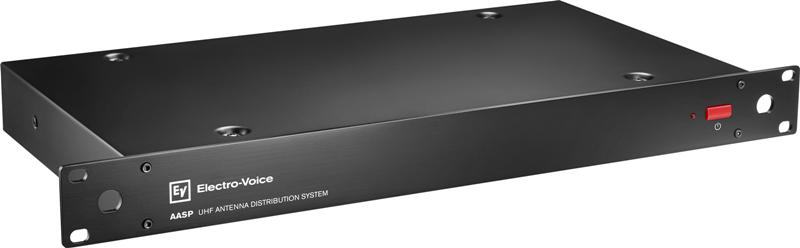

Electro Voice RE3-ACC-AASP - 2-in x 8-out antenna splitter 470-960 MHz
- Cijena
- 630 €
Šifra oglasa: 28169447
Osnovne informacije
- Lokacija
- Krapinsko-zagorska, Zlatar-Bistrica, Zlatar-Bistrica
- Stanje
- novo
Opis oglasa
Electro Voice RE3-ACC-AASP - 2-in x 8-out antenna splitter 470-960 MHz
MPC: 787,00€, cijena za gotovinu/virman: 630,00€
Active 2-in x 8-out antenna splitter
Distributes DC to power four receivers
Splits two antennas into four diversity receivers
Selectable booster feed for powering active antennas and boosters
Additional cascade output per antenna allows stacking splitters without sacrificing 2x8 function
Specifications:
Frequency range: 470 - 960 MHz
RF output gain: 3 dB (±2dB)
Cascade output level: 0dB - +2dB
Output connection isolation: 25dB
Third order intercept point: 24 dBm
Impedance: 50 Ohm
Input voltage: 12V DC/5A
Output DC voltage: +12V 1A x 4
Antenna booster DC voltage: 12V
Dimensions (width): 481 mm
Dimensions (depth): 227 mm
Dimensions (height): 43.4 mm
Finish: Polyurethane paint, black
Net weight: 3.07 kg
Gross weight: 3.7 kg
