DIGITALNA SKRETNICA
- Cijena
- 140 €
Šifra oglasa: 43135150
Osnovne informacije
- Lokacija
- Zagrebačka, Pušća, Žlebec Pušćanski
- Stanje
- rabljeno
Opis oglasa

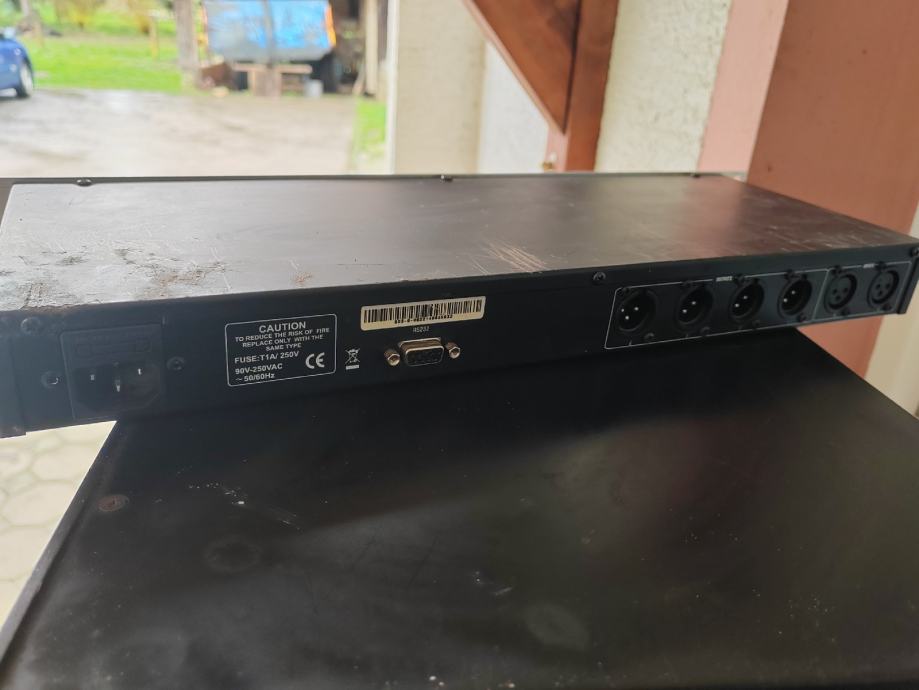

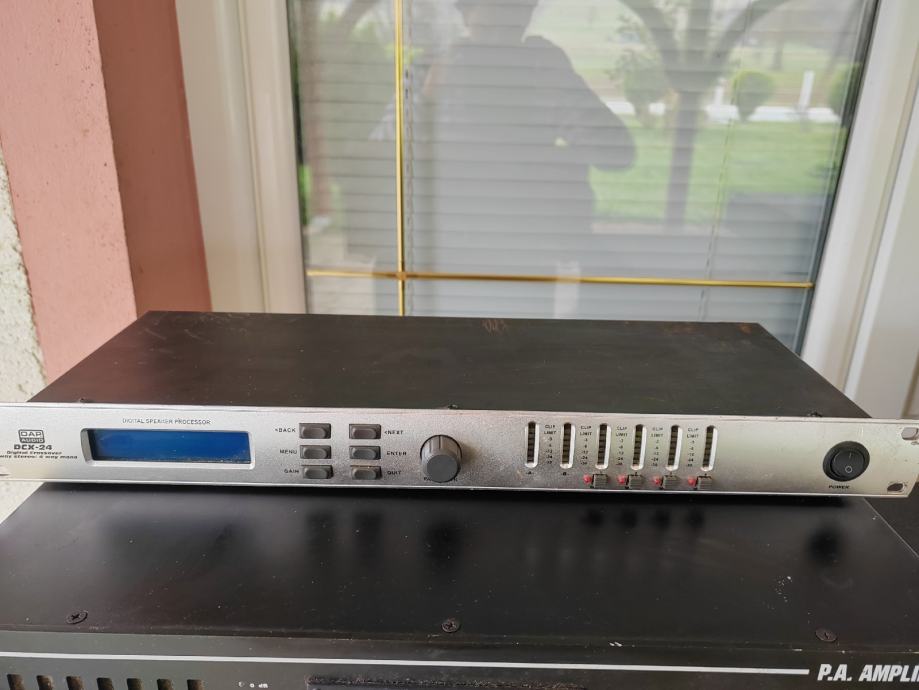

DAP Audio dcx 24
The DAP DCX-24 is a versatile crossover for a wide range of applications and pro-features:
Suitable as Subsonic-filter.
Suitable as Frequency bandwidth; Link witz-Riley, Butterworth, Bessel with slopes of 6-48 dB/Octave to 48 dB/Octave.
5 pre-defined standard settings.
5-band parametric Equalizer per Output.
Phase adjustment (Phase-reverse switch 0 degree or 180 degree).
Delay 0-7 mSec, adjustable at the In- and Outputs, displayed in mSec, meter, feet and frame/second.
Output limiter with adjustable limits attack- and release settings to avoid over load of audio equipment.
Lock function to protect the program settings.
Rs232 connector for a remote control to transmit and store the programs between different units or to record for archives, PC software inclusive.
Mute per channel
Technical Information:
Input
Impedance: 10 KOhm
CMRR: >50dB (30Hz~20KHz)
Output
Impedance: < 50 Ohm
Max. output electrical level: Vpp=4V, Vpp=7.6V
Frequency Resp.: 20Hz~20.0KHz
Dynamic Range
Distortion: 0.01% (THD)
Delay: 7ms
Output gain: -40dB~+6dB ±0.5dB
Input gain: -40dB~+6dB ±0.5dB
Parametric Equalizer
Filter
Gain: ±12dB in 1dB steps
Central Freq.: 20Hz~20KHz 31 ISO
Q value: 0.5~10
Shelving
Lo-shelf: 20Hz~1KHz
Hi-shelf: 1KHz~20KHz
Shelf gain: ±12dB in 1dB steps
HPF&LPF Filter
The DAP DCX-24 is a versatile crossover for a wide range of applications and pro-features:
Suitable as Subsonic-filter.
Suitable as Frequency bandwidth; Link witz-Riley, Butterworth, Bessel with slopes of 6-48 dB/Octave to 48 dB/Octave.
5 pre-defined standard settings.
5-band parametric Equalizer per Output.
Phase adjustment (Phase-reverse switch 0 degree or 180 degree).
Delay 0-7 mSec, adjustable at the In- and Outputs, displayed in mSec, meter, feet and frame/second.
Output limiter with adjustable limits attack- and release settings to avoid over load of audio equipment.
Lock function to protect the program settings.
Rs232 connector for a remote control to transmit and store the programs between different units or to record for archives, PC software inclusive.
Mute per channel
Technical Information:
Input
Impedance: 10 KOhm
CMRR: >50dB (30Hz~20KHz)
Output
Impedance: < 50 Ohm
Max. output electrical level: Vpp=4V, Vpp=7.6V
Frequency Resp.: 20Hz~20.0KHz
Dynamic Range
Distortion: 0.01% (THD)
Delay: 7ms
Output gain: -40dB~+6dB ±0.5dB
Input gain: -40dB~+6dB ±0.5dB
Parametric Equalizer
Filter
Gain: ±12dB in 1dB steps
Central Freq.: 20Hz~20KHz 31 ISO
Q value: 0.5~10
Shelving
Lo-shelf: 20Hz~1KHz
Hi-shelf: 1KHz~20KHz
Shelf gain: ±12dB in 1dB steps
HPF&LPF Filter
