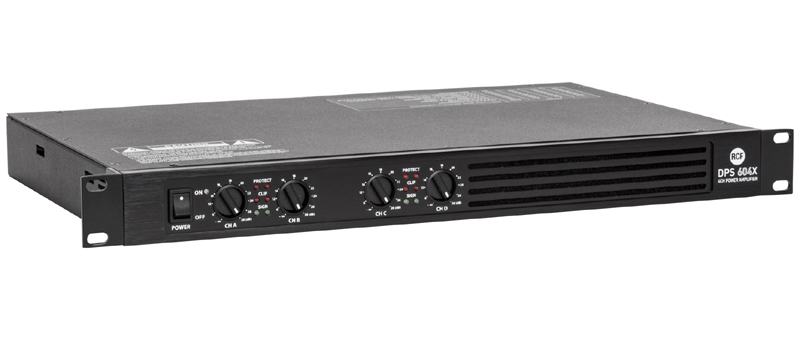

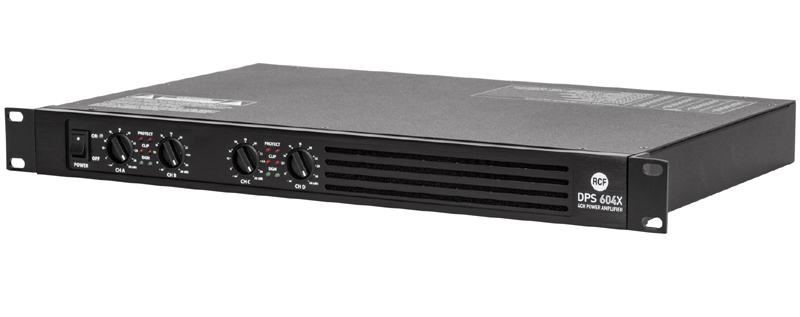

RCF DPS 604X - 4-kanalno pojačalo snage klase D sa skretnicom, 4x150W

RCF DPS 604X - 4-kanalno pojačalo snage klase D sa skretnicom

MPC: 4.560,00 kn, cijena za gotovinu/virman -15%: 3.876,00 kn


DPS 604X is a 4-channel class D power amplifier designed for professional use in installed sound systems. It has 4 inputs and 4 outputs that could be combined in different configurations: a DIP switch on the rear panel allows to choose among 8 operational modes, and easily adapt the system to the specific installation. Moreover, it has two hi-pass filters (on channels A and B) and a low-pass filter for subwoofers, with cutoff frequencies in the range from 50 Hz to 250 Hz.


Fast response and low distortion
Eight different operation modes, two of which with internal crossover
Extensive protective circuits ensure high reliability and operating safety
Level control for each channel on the front panel
Signal and peak LED for each channel
Suitable for rack installation (1HU 19")


SPECIFICATIONS:

Amplifier specifications:
AMPLIFIER CLASS: D
CROSSTALK (@ 1 KHz): less than 70 dB
DISTORTION (THD+N) @ 1 KHz NOMINAL POWER: less than 0.1 %
FREQUENCY RESPONSE (-3dB): 20 Hz ÷ 24 kHz
NUMBER OF CHANNELS: 4
POWER OUTPUT (BRIDGED @ 4 OHM): 400 W RMS
POWER OUTPUT (BRIDGED @ 8 OHM): 300 W RMS
POWER OUTPUT PER CHANNEL (@ 2 OHM): 230W RMS
POWER OUTPUT PER CHANNEL (@ 4 OHM): 150 W RMS
POWER OUTPUT PER CHANNEL (@ 8 OHM): 80 W RMS
SIGNAL/NOISE RATE (”A” WEIGHTED): >95 dB

Controls:
CONFIGURATION: DIP switch
NUMBER OF PROGRAMS/PRESETS: 9

Processing:
CROSSOVER: 50 ÷ 250 Hz
HIGH-PASS FILTER: 50 ÷ 250 Hz

Input section:
BALANCED: 4
LINE CONNECTORS: Euroblock
LINE INPUTS: 4
MONO: 4
TOTAL NUMBER OF INPUTS: 4

Protections:
COOLING: Forced
DC DELAY: Yes
FUSES: Yes
SHORT CIRCUIT: Yes
THERMAL: Yes
VHF: Yes

Size:
DEPTH: 281 mm
HEIGHT: 44 mm
WIDTH: 483 mm
WEIGHT: 4.75 kg
