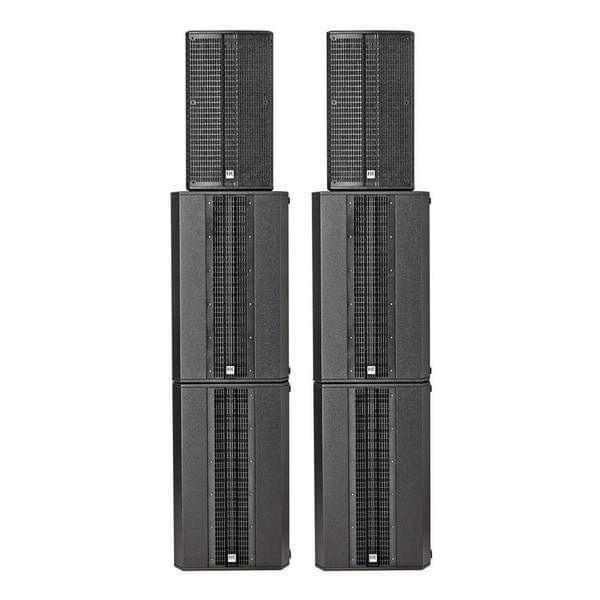

HK audio Linear 5-Big Venue Pack

Prodaje se aktivni razglas HK Audio L5-Big Venue Pack u dobrom stanju.

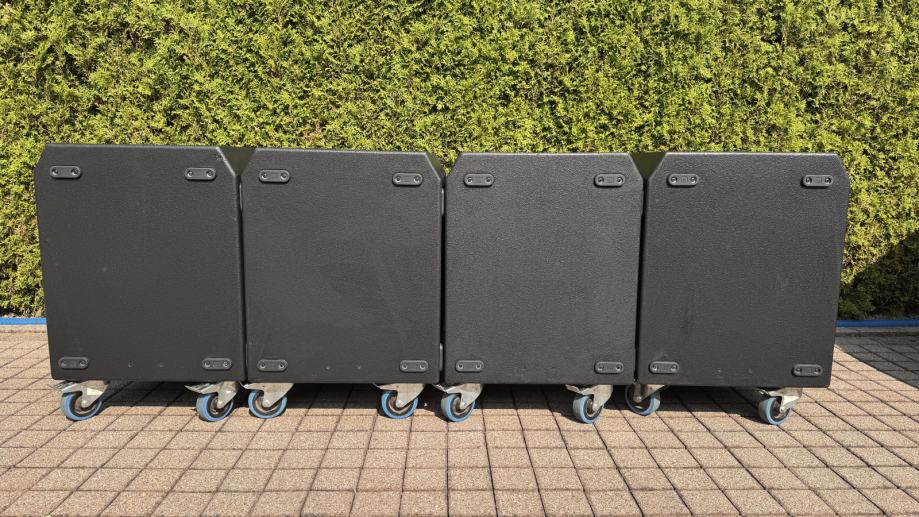

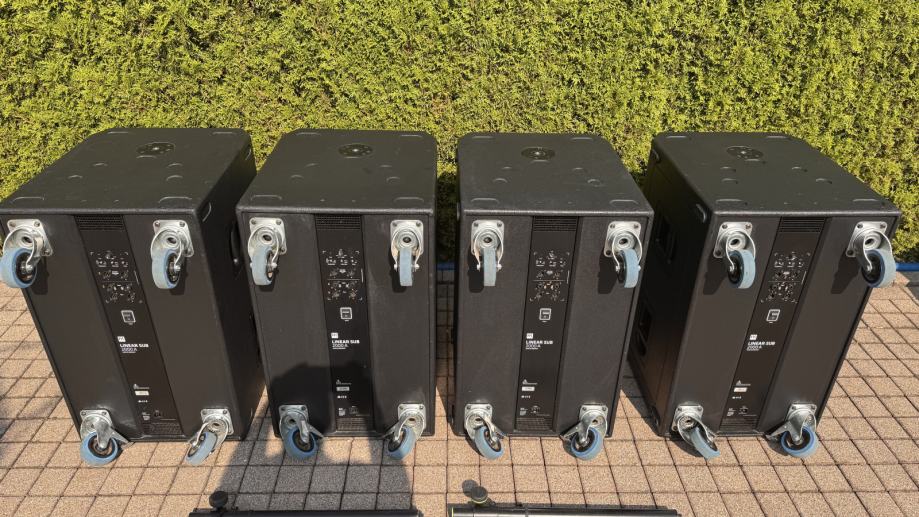

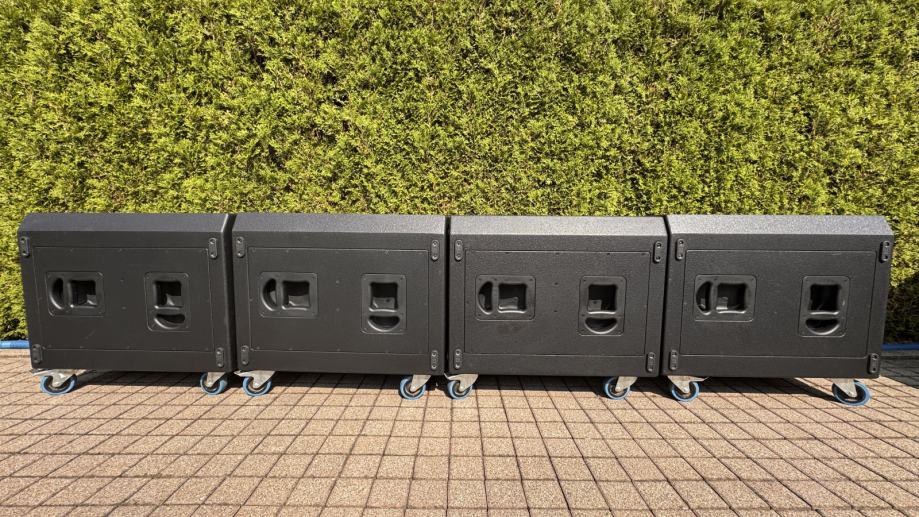

Na kutije su montirani kotači zbog lakšeg transporta.

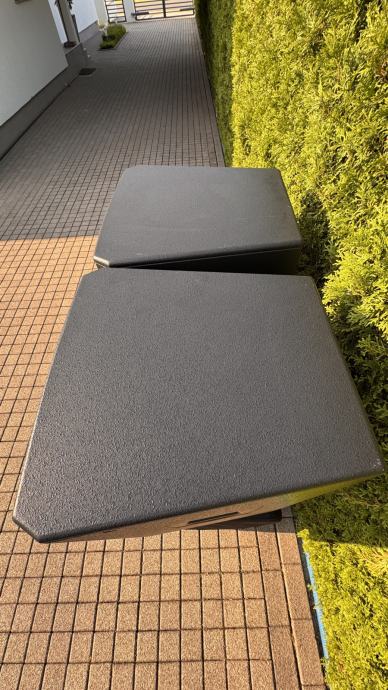

Navlake za kompletan razglas.
Razglas je star 7 godina, kupljen novi, ima vidljivih tragova korištenja, radi bez greške i nikada nije otvaran.
Na jednoj od gornjih kutija je sa zadnje strane oštećenje(tehničari označili prije par godina), ali to ne utječe na sam rad.

od zamjena me jedino interesira - Allen & Heath SQ-5 - onda je cijena po dogovoru

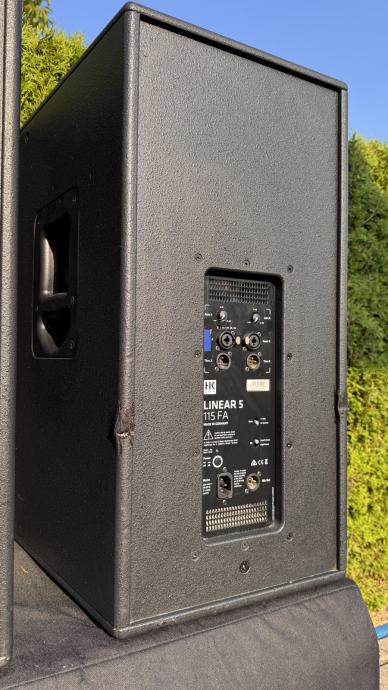

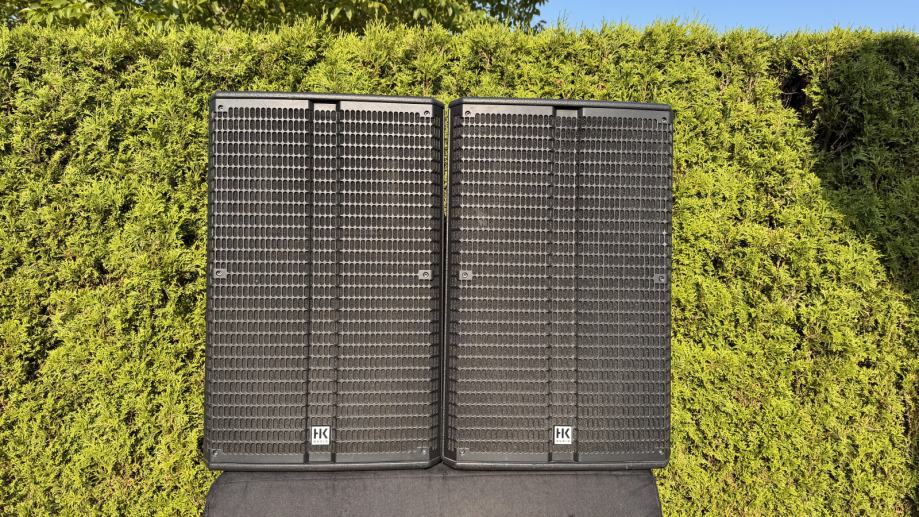

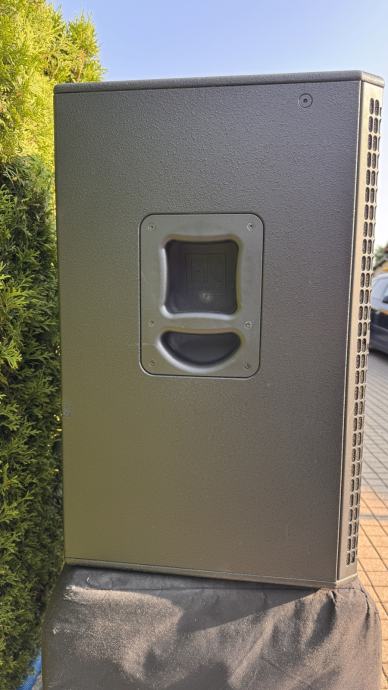

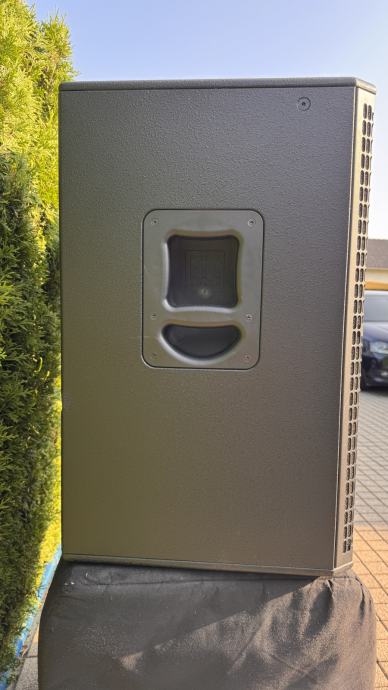

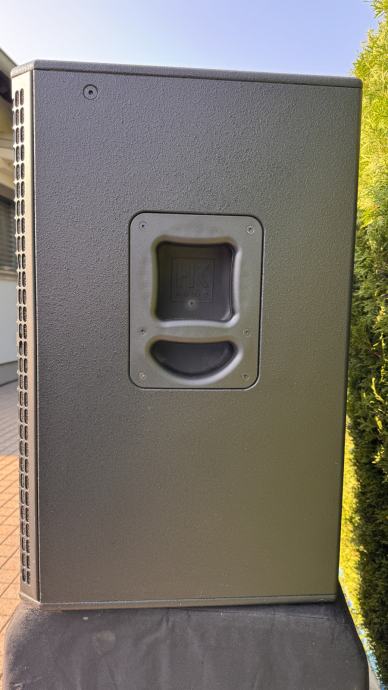

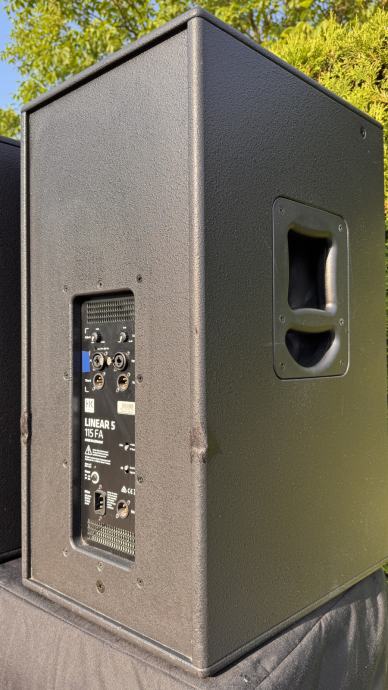

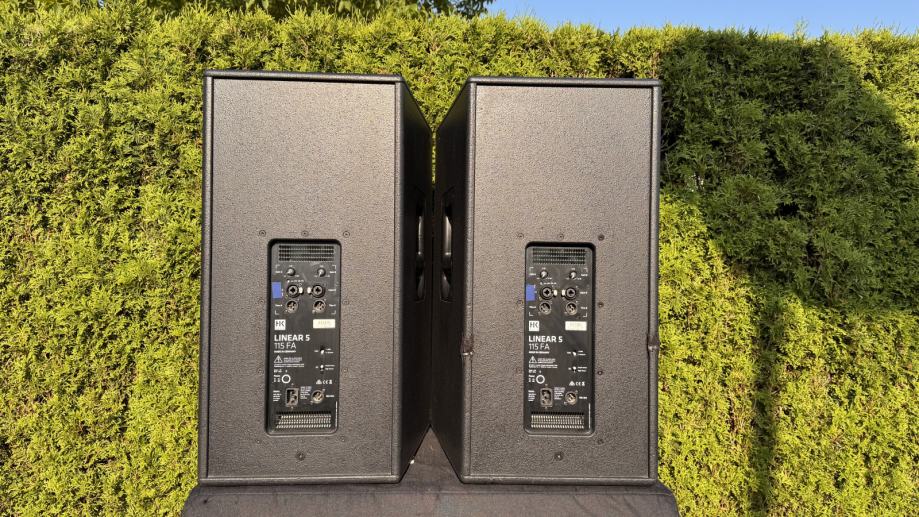

2 x L5 115 FA

Max SPL: 128 dB half space (@ 10% THD)
Max SPL peak: 137 dB half space (@ 10% THD)
Max SPL calculated: 138 dB half space
Frequency response +/- 3 dB: 57 Hz - 18 kHz
Frequency response -10 dB: 48 Hz - 20 kHz
Power Rating: 1000 W
Amplifier: Class D - Biamped
Active protection circuits: Undervoltage-Protection, Thermoprotection, Short-Circuit Protection, Overcurrent-Protection, Subsonic 24dB/oct., Peak limiter
Low/Mid Speaker: 1x 15"
HF Driver: 1"
Horn characteristics: 60°- 90°(asymm) x 55° CD horn, rotatable
Cut-off Frequency active: 1,65 kHz, 24 dB/oct.
Connections: 2x XLR–1/4"-Combo In, 2x XLR-Thru, 1x XLR-Mix Out
Input Sensitivity: +4dBu @ Gain Centerclick / L5 System Level
Sensitivity switch: Line/Mic Input A
Equalizer: EQ switch Small Venue/High Power
Pole mount: DuoTilt 3/7
Rigging points: 3x M8
Handles: 2 integrated
Enclosure: Hybrid (birch multiplex / MDF)
Grille: 2 mm metal grille backed with black acoustic foam
Finish: Acrylic enamel, black
Optional accessories: Protective cover
Dimensions (WxHxD): 45 x 71 x 45 cm
Weight: 30.7 kg

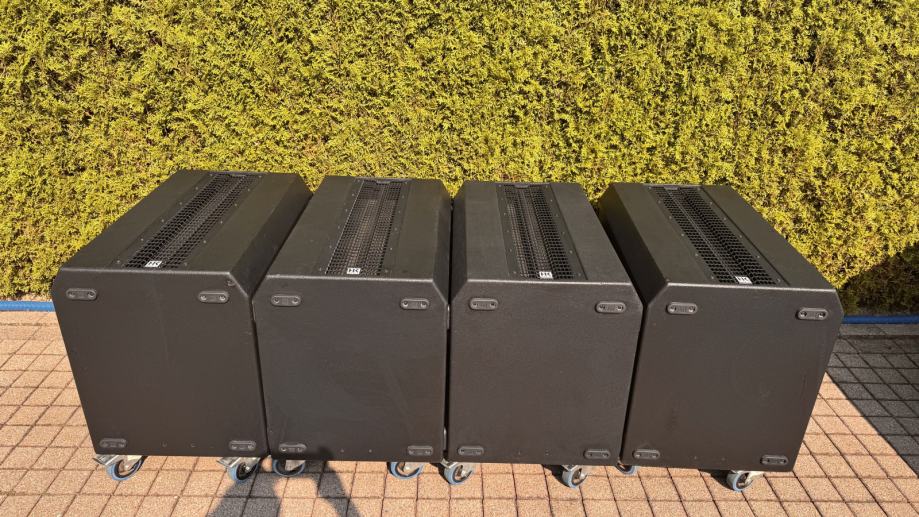

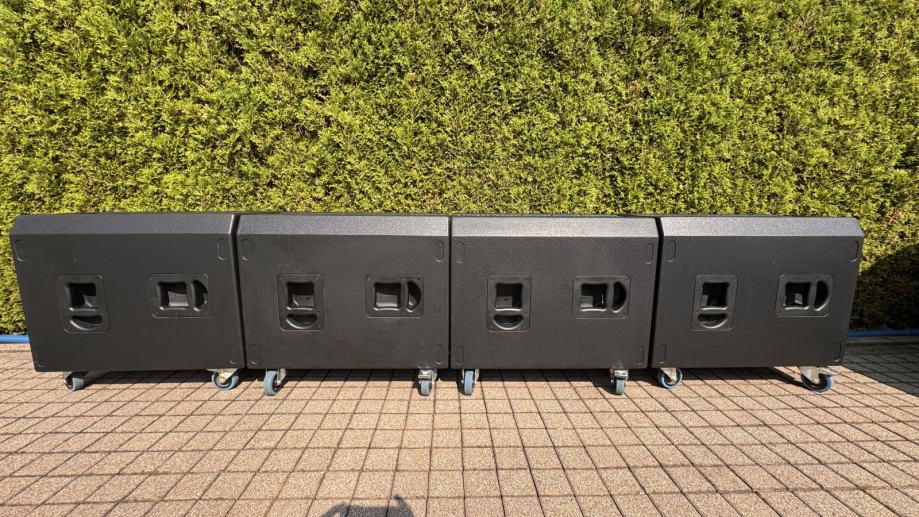

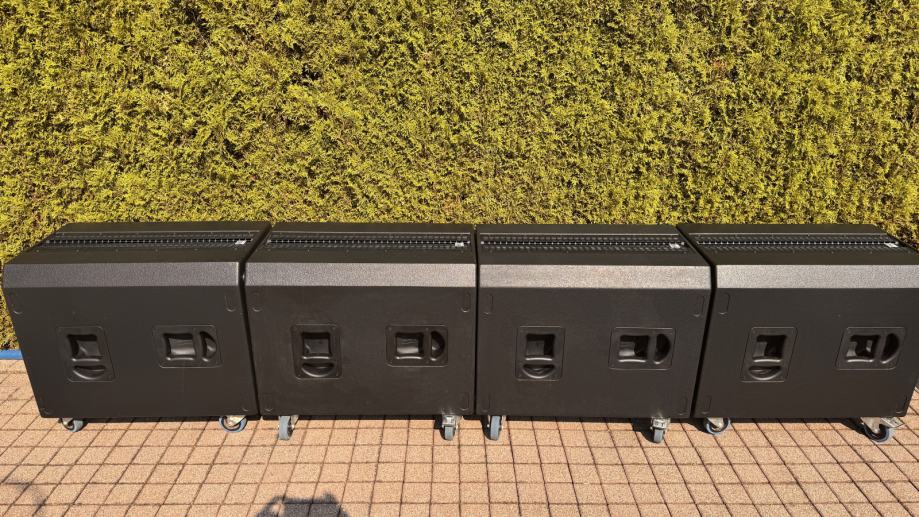

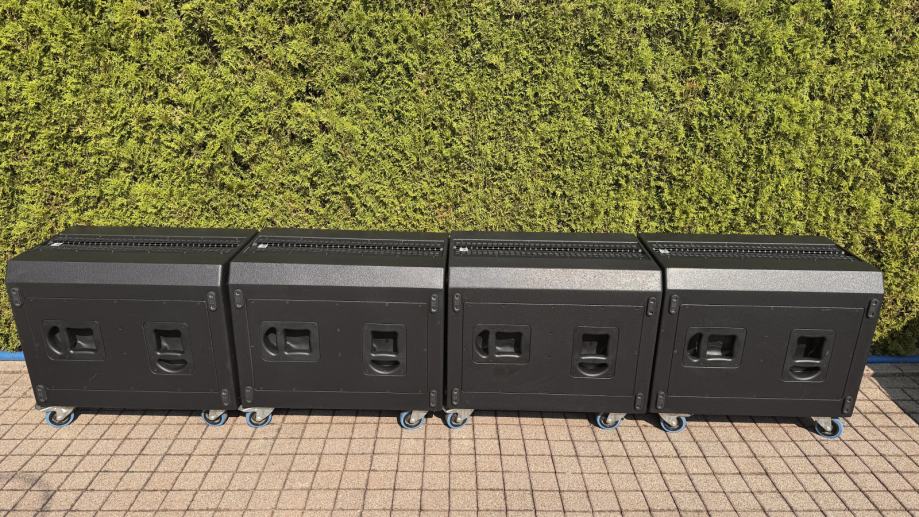

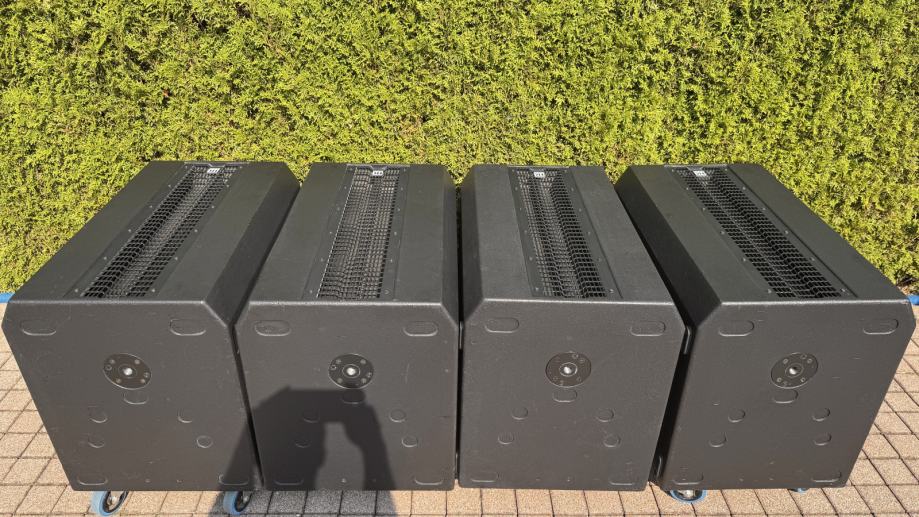

4 x L SUB 2000 A

Max SPL: 132 dB half space (@ 10% THD)
Max SPL peak: 133 dB half space (@ 10% THD)
Max SPL calculated: 135 dB half space
Frequency response +/- 3 dB: 49 Hz – X-Over
Frequency response -10 dB: 39 Hz – X-Over
Power Rating: 1200 W
Amplifier: Class D
Active protection circuits: Undervoltage-Protection, Thermoprotection, Short-Circuit Protection, Overcurrent-Protection, Subsonic 24dB/Oktave, Peak Limiter
LF Speaker: 2x 12" featuring advanced cooling technology
Cut-off Frequency active: 100 Hz / 120 Hz variable with 24 dB/oct.
Connections: 2x XLR–1/4"-Combo In, 2x XLR-Thru, 2x XLR-Mid/High Out
Input Sensitivity: +4 dBu @ Gain center-notched
Pole mount: 1x M20 (K&M)
Handles: 4x HK Audio MultiGrip
Enclosure: Birch multiplex
Grille: 2 mm metal grille backed with black acoustic foam
Finish: Acrylic enamel, black
Optional accessories: Protective cover, M20 Distance Pole Add-On, tilt unit, 100 mm casters
Dimensions (WxHxD): 51 x 81 x 61 cm
Weight: 47.5 kg
