FOS Quadro DSP,Digital speaker management, 4 in, 8 out full matrix

Proizvođač: FOS
Naziv: Quadro DSP,Digital speaker management, 4 in, 8 out full matrix
Šifra: FL006241 █ Model: L006241

╔════════════════════════
⇨ ZAŠTO ODABRATI OVAJ PROIZVOD ?
╚════════════════════════
Digital speaker management system, 4 input, 8 outputs full matrix mixing, 32 bit converters with 96khz sampling, USB Connection for PC or RJ45 LAN Connector for Long Distance Control, ? programmable PC Software, Low-Shelving Equalizer, Hi-Shelving Equalizer, Lo-Cut filter, Hi-Cut filter, All-Pass filter, Compressor / Limiter 6 Digital Compressors / Limiters per Output, state-of-the-art signal processing.


✪ ✪ JAMSTVO 2 GODINE ✪ ✪ s R1 računom!

╔═════════════════════════
⇶ ISTAKNUTE KARAKTERISTIKE (original) :
╚═════════════════════════
Product description:
Professional speaker processor, with variable DSP functions, and integrated compressors, limiters, frequency dividers, dynamic EQ, delayers, equalizers, input and output with FIR phase correction, and audio mixers.

Suitable for stadium, performances, auditoriums, halls, and conference rooms.

Technical Details:
DSPMODULE
Signal processing: ADI SHARC 21489
Audio system delay: 2.8 ms
D/A conversion: 24-bit
Sampling Rate: 96kHz


ANALOG AUDIO INPUTS AND OUTPUTS

Input channel: 4 balanced inputs.Line level.
Audio interface: Cannon male and female
Input resistance: 22kΩ
Maximum input level: 16dBu/Line
Output channel: 8x balanced outputs, Line level
Output impedance: 150Ω


AUDIO PERFORMANCE SPECIFICATIONS

Frequency response curve: 20Hz～40kHz(±0.5dB)/Line
Noise floor: 20Hz～20kHz,A-wt,-93dBu
THD+N: -90dB(@0dBu,1kHz,A-wt)/Line
SNR: 108dB(@16dBu,1kHz,A-wt)/Line

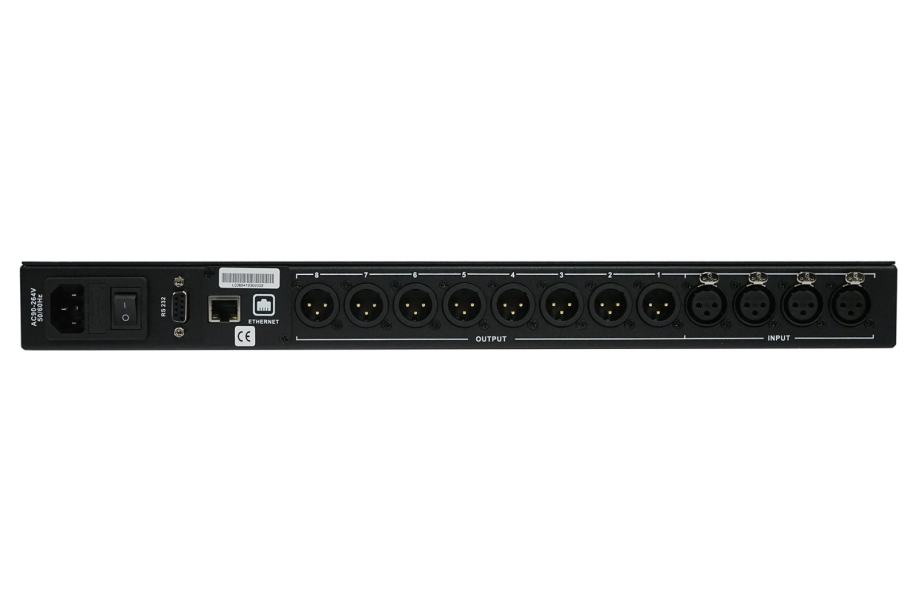

COMMUNICATION PORTS AND INDICATORS

USB: Micro-B type
Serial port
RJ-45, for TCP/IP network connection

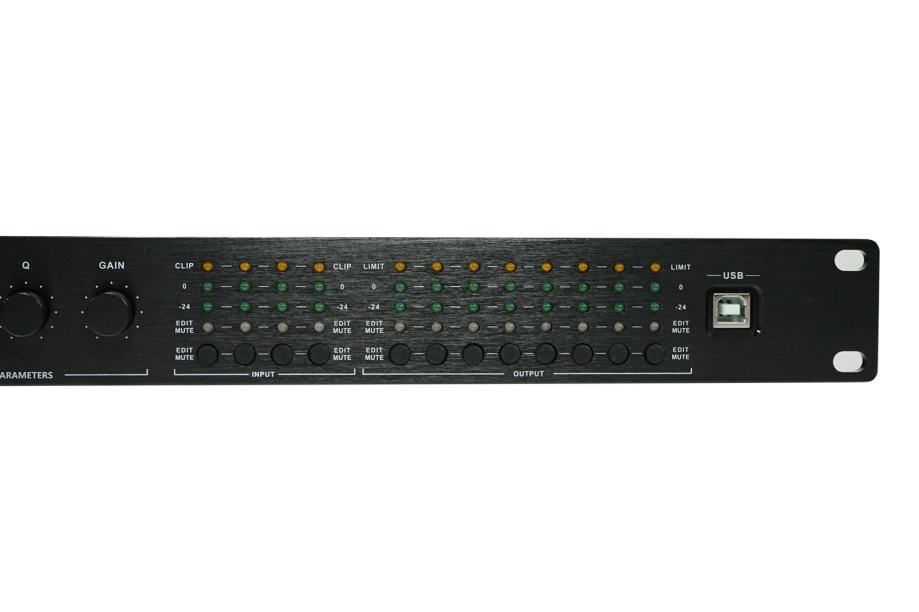

LED Indicators: CLIP, LEVEL, EDIT, MUTE

Physical Dimensions / Electrical characteristics:
Power supply range: AC90V～264V50/60Hz
Operating temperature -20℃～80℃
Product dimensions: 483mm×226mm×44.5mm
Packed dimension: 540mm×345mm×77mm
Net weight: 3.2kg
Packed weight 4.1kg

┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉
- Kategorija: Sound system
