NOVA DXI 8200 8-channel power amplifier with SMPS

NOVA DXI 8200 8-channel power amplifier with SMPS

MPC: 1.215,34€, cijena za gotovinu/virman -20%: 972,00€

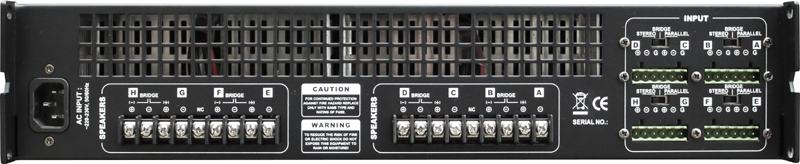

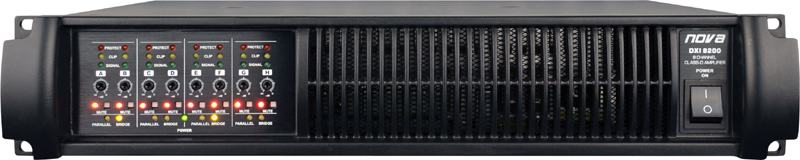

The DXI8200 is a 8-channel power amplifier at a compact size of 2 HU (rack spaces). The front panel shows 8 gain controls for easy access, mute-switches and the main switch. The LED display informs about the condition of the amplifiers. The rear side shows 8 input-connectors and 8 output-connectors. The input sensivity (gain) is 32 dB each channel. The outputs offer barrier strip connectors. The DXI8200 can be used also in half-bridged mode (2 x 400 watts plus 4 x 200 watts RMS / 4 ohms). The DXI8200 can be switched into three different operation modes: stereo, parallel and bridge mode. The independent limiters can be switched on or off. The amplifier is equipped with a switch-on delay to protect the connected speakers

► 8-channel power amplifier (8 x 200 watts RMS / 4 ohms)
► SMPS (switch mode power supply / 8 kg only)
► Compact design and lightweight construction
► Independent clip limiters
► Class-D technology for high efficiency
► Euroblock connectors at inputs
► Barrier strip connectors at outputs (cable-plugs included)
► Comprehensive package of safety circuits


8 ohms per channel (watt): 130 (x 8)
4 ohms per channel (watt): 200 (x 8)
8 ohms bridged (watt): 400 (x 2 max. in bridge mode)
THD+N at 1 kHz half power @ 4 ohms: less than 0.5 %
Damping factor: 600
Channel separation at 10 kHz: less than 60 dB
Input Impedance: 40 k ohms bal. / 20 k ohms bal.
Common mode rejection: 70 dB
Gain controls: 8
Clip / protect indicators: LEDS
Output headroom indicators: LEDS
Input connectors: Euroblock
Link connectors: n/a
Mode switch: Stereo / brigde / parallel
Limit switch: n/a
Output connectors: Barrier Strip (connectors included)
Operation voltage: 220 - 242 volts
Soft start: Yes
Switch mode power supply (SMPS): Yes
Maximum power consumption: 1.300 W
Dimensions unit (mm) W x H x D: 483 x 89 x 431
Dimensions packing (mm) W x H x D: 544 x 123 x 544
Weight (net / gross): 8 kg / 10 kg
