AUDAC SMQ750 4-kanalno pojačalo snage 4 x 750W

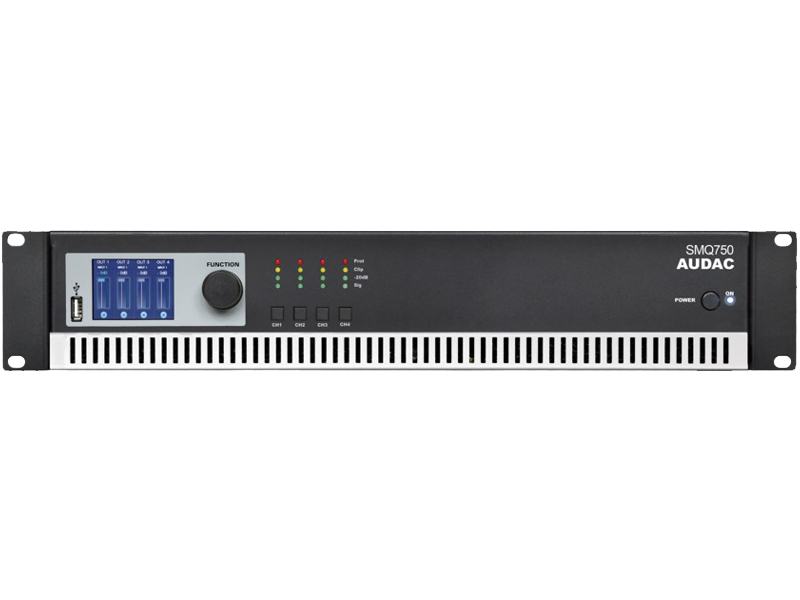

AUDAC SMQ750 is the four channel Class D power amplifier with an output power of 750 Watt for each channel. The WaveDynamics™ DSP processor in combination with the 2.5” LCD display gives an unmatched user experience with intuitive functions overview for easy configuration.

Acoustics can be optimized using the filters selectable between Low / High & Band Pass and the 7-Band equalizer which both have adjustable frequencies and Q-factor. Other provided functions are delay and dynamic bass boost. These settings can be custom configured using the front panel of the amplifier, whereby access can be given in two different levels (User & Administrator) using password or USB-key protection. Loudspeaker protection is provided by an output power limiter whereby the maximum output power for every channel (in Watt) can be configured.
Configuration is made simple by the loudspeaker presets and full system configurations which can selected from a library and uploaded with an USB flash drive. This ensures the best acoustical performance with a bullet-proof loudspeaker protection

SYSTEM SPECIFICATIONS:
RMS Power @ 4 Ohm Stereo: 4 x 750 Watt
RMS Power @ 8 Ohm Stereo: 4 x 380 Watt
RMS Power @ 8 Ohm Bridge: 2 x 1500 Watt
Frequency response: 20 Hz - 20 kHz
Signal to noise ratio: > 95 dB
THD+N by 1 kHz (1/2 Rated Power): less than 0.05 %
Crosstalk: > 70 dB
Technology: Class - D
Power supply: Switching mode
Power supply range: 230 ~ 240 V AC / 50 ~ 60 Hz
Input Sensitivity: -19.5 dB ~ 27 dB
Input Impedance: 10 k Ohm balanced
Common mode rejection ratio: 70 dB
Damping factor: > 200
Protection: Amplifier: DC Short-circuit, Over heating, Over load, Signal limiting
Loudspeaker: Output power limiter
Access: User & Administrator level (Through password and USB-key protection)
Cooling system: Temperature controlled FAN (Infinitely)
Operating temperature: 0° ~ 40° at 95% Humidity

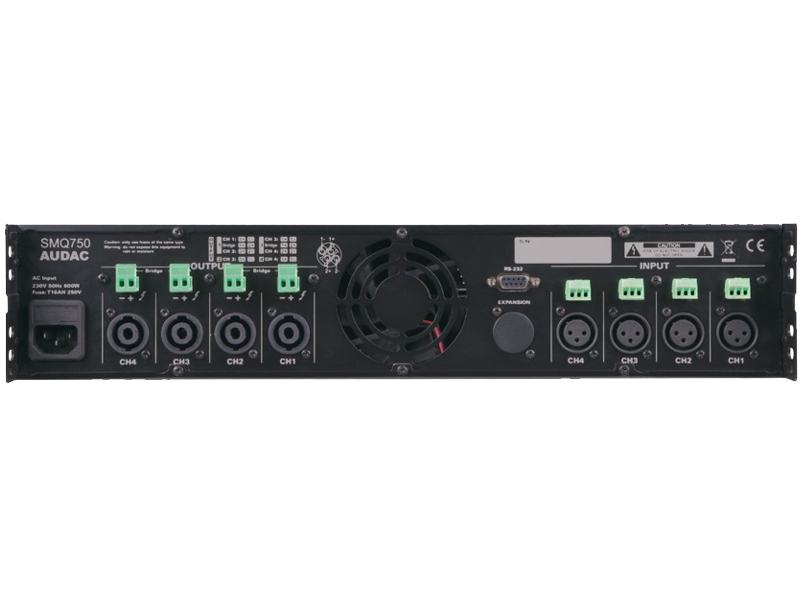

Connectors: Input: XLR & 3-pin Terminal block (3.81 mm)
Output: Speakon compatible & 2-pin Terminal block (5.08 mm)

PRODUCT FEATURES:
Dimensions (Width x Height x Depth): 482 x 88 x 420 mm
Weight net: 8.40 kg
Mounting: 19"
Unit height: 2 HU
Construction: Steel
Colour: Black
