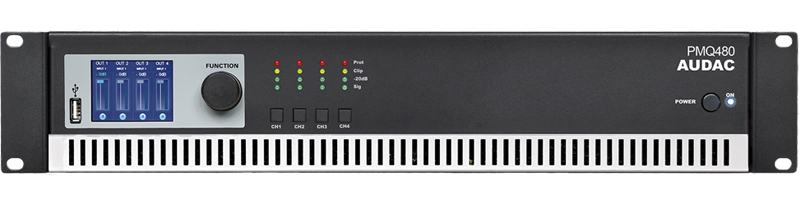

AUDAC PMQ480 - 100V 4-kanalno pojačalo snage 4x480W

AUDAC PMQ480 is a four channel Class-D 100V power amplifier with an output power of 480 Watt for each channel. The WaveDynamics™ DSP processor combination with the 2.5” LCD display gives an unmatched user experience with intuitive functions overview for easy configuration.

Acoustics can be optimized using the filters selectable between Low / High & Band Pass and the 7-Band equalizer both with adjustable frequencies and Q-factor. Other provided functions are delay and dynamic bass boost. These settings can be custom configured using the front panel of the amplifier, whereby access can be given on two different levels (User & Administrator) using password or USB-key protection.

SPECIFICATIONS:
RMS Power: 4 x 480 W
Signal / Noise: > 95 dB
Crosstalk (@ 1 kHz): > 70 dB
Technology: Class-D
Common mode rejection ratio: 70 dB
Damping factor: > 200
Cooling: Temperature controlled FAN
Operating temperature: 0° ~ 40° @ 95% Humidity
Frequency Response (± 3 dB): 20 Hz - 20 kHz
Power Supply: Switching mode, 230 ~ 240 V AC / 50 ~ 60 Hz
Inputs Sensitivity (1W/1m): -30 dB ~ +5 dB
Impedance: 10 kΩ balanced
Protection Amplifier: DC Short circuit, Over heating, Over load, Signal limiting
Access: User & Administrator level (Through password and USB-key protection)

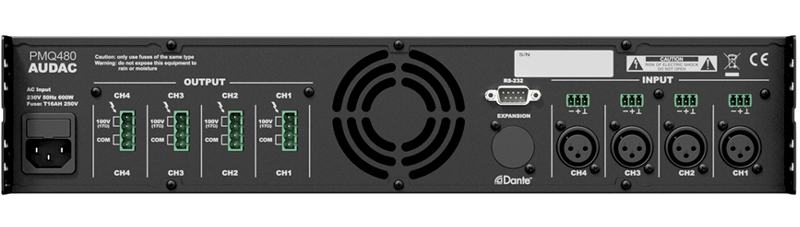

Inputs: Connector XLR & 3-pin Euro Terminal Block (3.81 mm)
Outputs: Connector 4-pin Euro Terminal Block (Pitch - 5.08 mm)

PRODUCT FEATURES:
Dimensions: 482 x 88 x 420 mm (W x H x D)
Weight: 8.5 kg
Mounting: 19"
Unit height: 2 HE
Construction: Steel
Colour: Black


CIJENA NA UPIT
